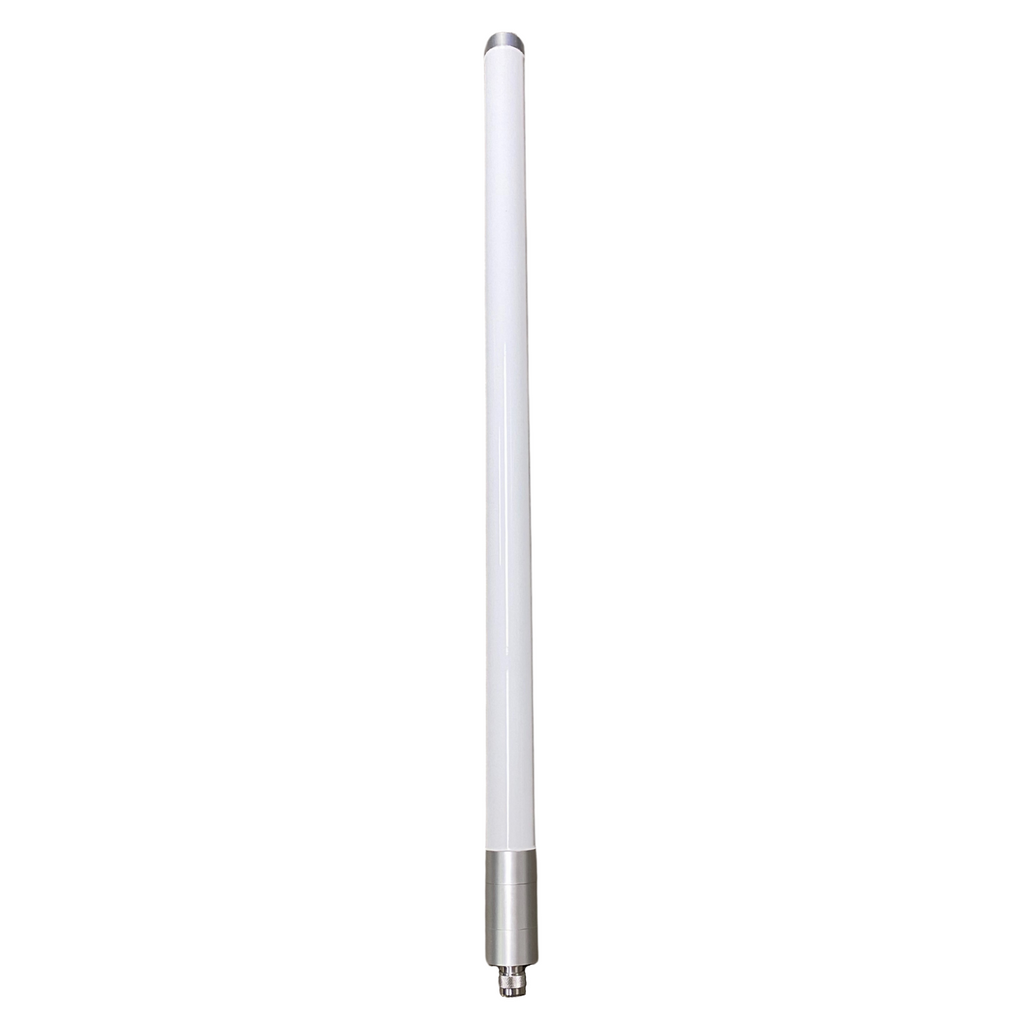

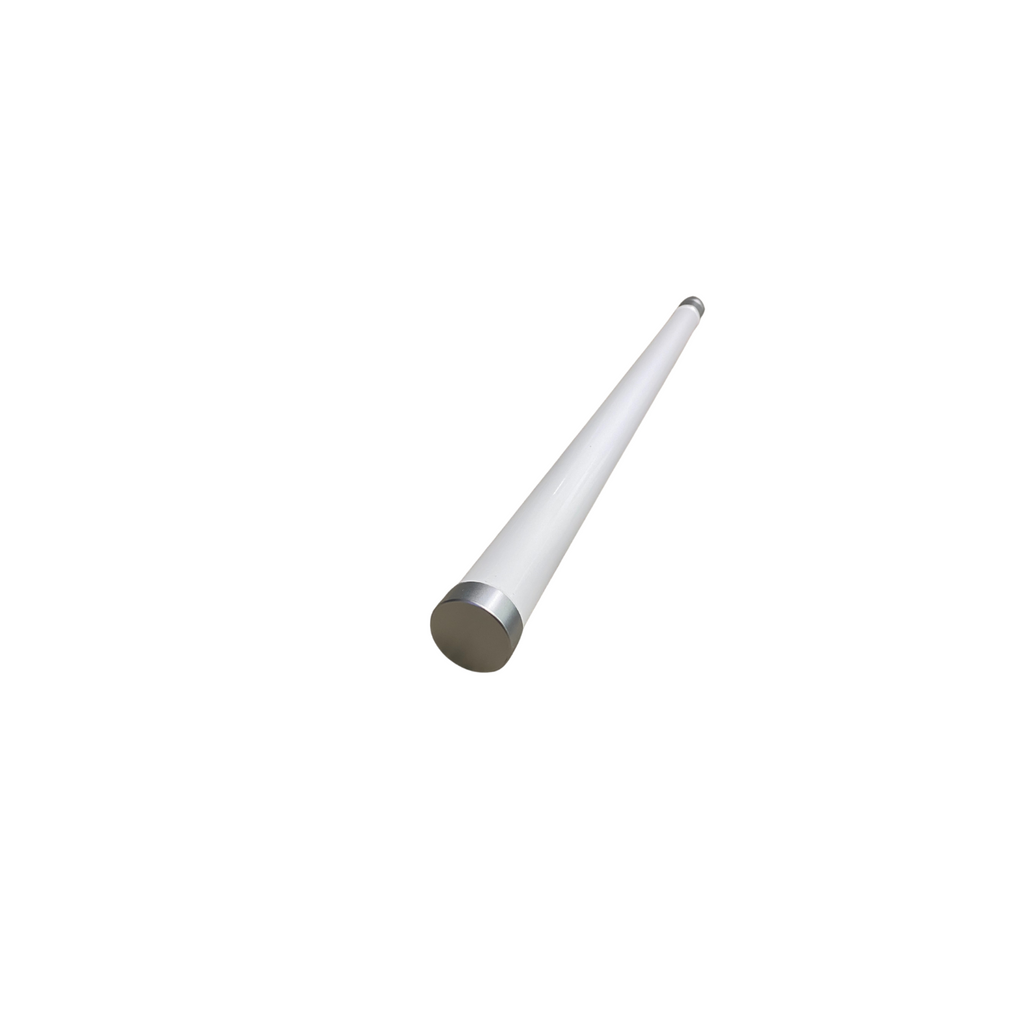

The Rokland MISSION6 is a new enterprise grade 6 dBi gain 915 MHz tuned antenna with a large 1.5 inch diameter fiberglass casing and heavy duty brackets (industry standard is 1 inch diameter). Compare to L-COM and Laird.
See full spec sheet

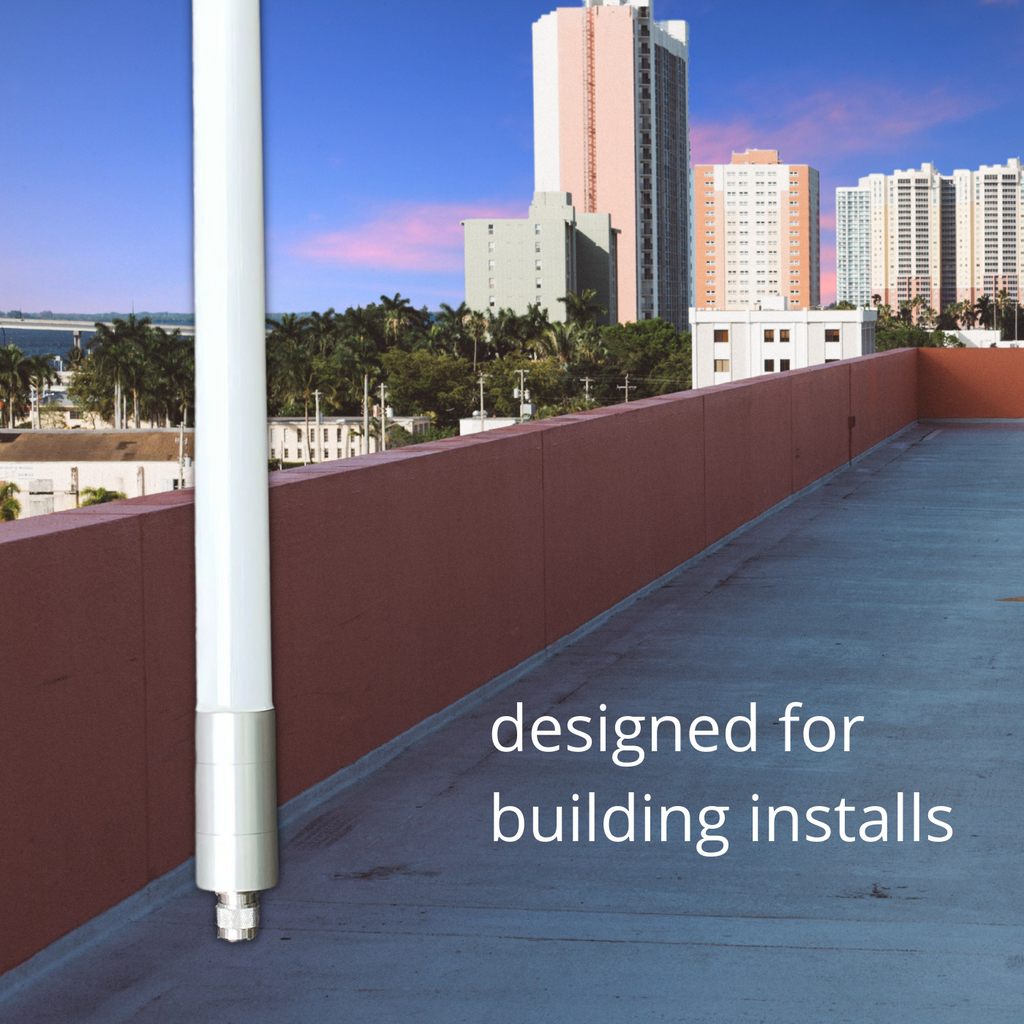

Our MISSION series is designed for extended outdoor use on top of tall buildings. Enterprise class, they meet the same outdoor weatherproof standards as all Rokland antennas.

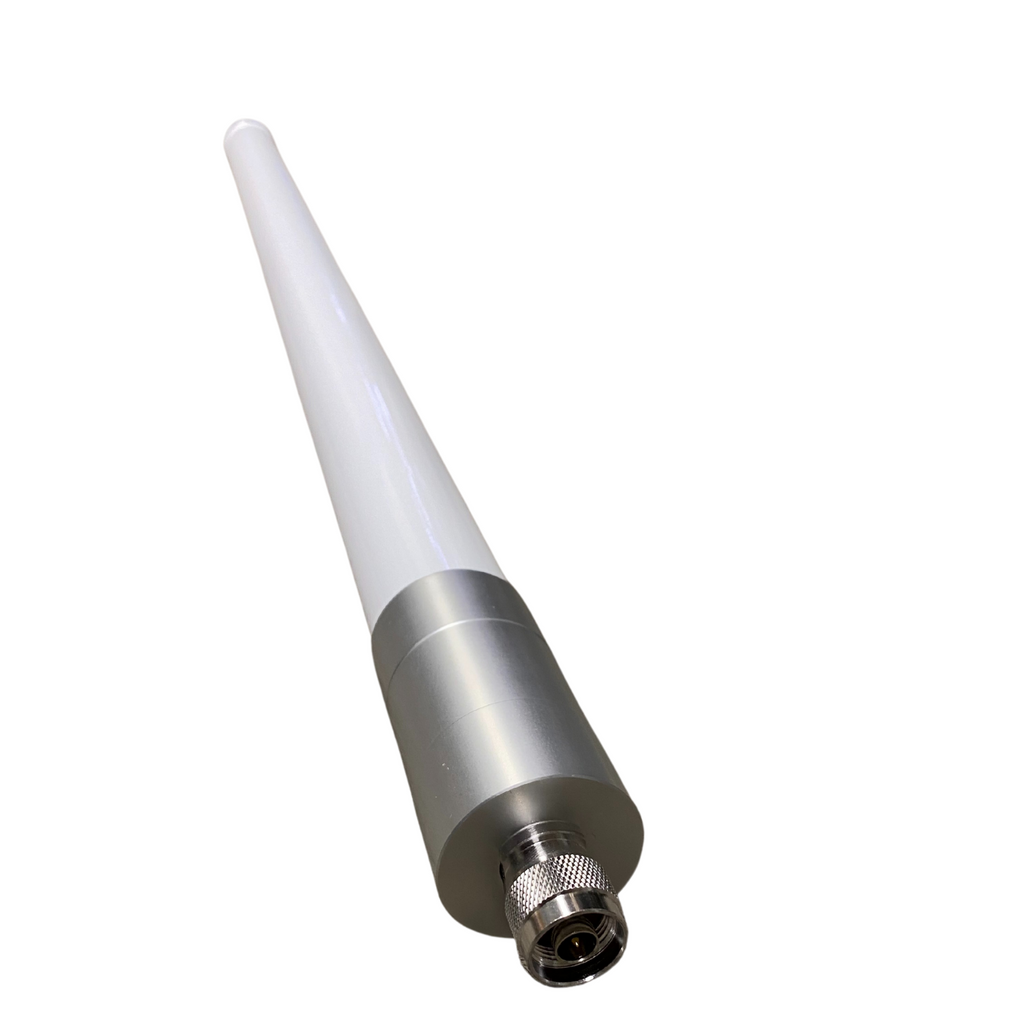

Important note: This has an N-MALE antenna connector, meaning your cable must be N-FEMALE. Click below to be taken to the compatible cable page.
How does this compare to other Rokland antennas with similar gain?
Our MISSION series antennas are an advancement in casing and height, and are designed to last longer on top of tall buildings and in harsh elements.
Other Rokland antennas are high quality build, and changing from our standard series 6 dBi antenna to the MISSION6 may not yield any different rewards in residential areas. For building tops we recommend the MISSION6 or MISSION8 for long lasting deployment, Our MISSION series are also great choices for military IOT deployment.
This antenna is compatible with the RAK V2, Bobcat 300, Nebra Indoor, SenseCAP M1, Kerlink, Linxdot, SyncroB.it, Helium Hotspot, Kerlink, FreedomFi & LongAP, but requires an RP-SMA male to N-female coaxial cable to fit, and we carry compatible coaxial cables. This antenna also works with other Helium hotspots (such as the Nebra Outdoor) but may need different cable connectors, please contact our sales staff if needed.
- 6 dBi gain 915 MHz band antenna for LoRa and HaLow™ long-distance low data transfer industrial application
- 360-degree horizontal beamwidth, 25-degree vertical beamwidth, N-male connector. VSWR ≤ 1.5, 50-ohm impedance, max input power 100 W, made of Fiberglass, Copper, and Aluminum Alloy
- Large profile 33 inches height - Learn more about antenna size and gain correlation

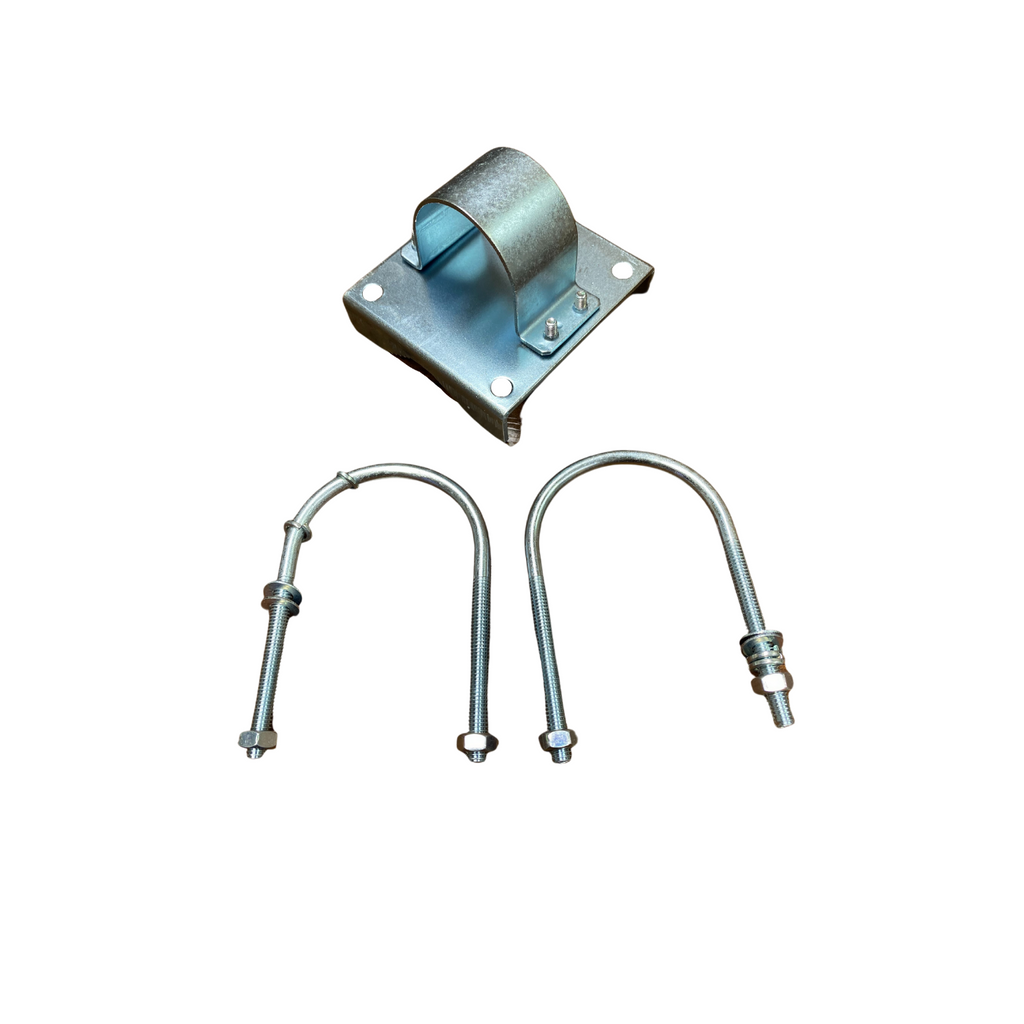

- Includes antenna plus heavy duty pole bracket (capable of fitting up to 2-inch diameter pole) and mounting bracket as pictured. Does NOT include a pole to mount to as shown in the picture. Pole shown in images with antenna mounted to it is just for demonstration purposes
Questions about miners, antennas and cables? Visit this page to learn more.We do recommend RokTape to seal all outdoor connection points.
900-930 MHz frequency
360-degree horizontal beamwidth
25-degree vertical beamwidth
VSWR: ≤ 1.5
~6 dBi gain
Max input power: 100 W
Wind Rating: 100 m/sec
Operating Temperature: -40F to 140F
Height: 33 inches (learn more about antenna height and gain correlation)
Made of Fiberglass, Copper, and Aluminum Alloy
Optional Compatible Accessory:
What is HaLow™?
Wi-Fi HaLow™ is "the designation for products incorporating IEEE 802.11ah technology, augments Wi-Fi by operating in spectrum below one gigahertz (GHz) to offer longer range and lower power connectivity. Wi-Fi HaLow meets the unique requirements for the Internet of Things (IoT) to enable a variety of use cases in industrial, agricultural, smart building, and smart city environments.Wi-Fi HaLow enables the low power connectivity necessary for applications including sensor networks and wearables. Its range is longer than many other IoT technology options and it provides a more robust connection in challenging environments where the ability to penetrate walls or other barriers is an important consideration."
