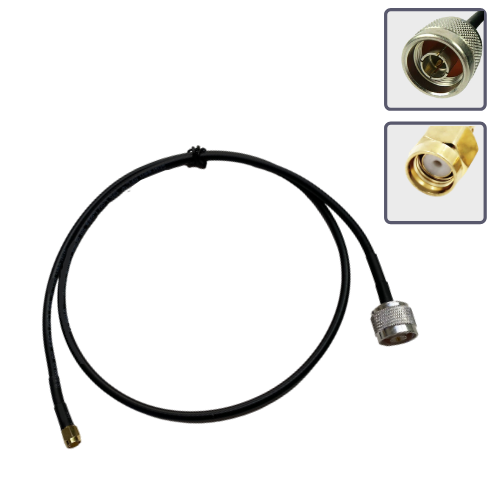

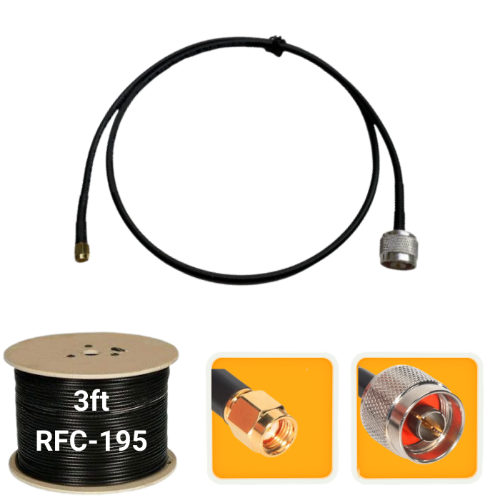

RP-SMA male to N male extension cable, 3-foot length, RFC-195 low loss shielding.
RP-SMA male connector on one end and a standard N male connector on the other end. We recommend this extension cable compared to some others online because this has a special RFC-195 low-loss cable. As the cable in between the antenna and adapter gets longer, you will experience cable loss, which is a drop in the signal gain of the antenna. Compared to standard RG-58 coax, RFC-195 shielded cables have much less gain loss.
We do recommend RokTape to seal all outdoor connection points.
Compare gain loss of this cable:
915 MHz application: -0.32 dB (Helium mining/LoRa device)
WiFi 2.4 GHz application: -0.52 dB (standard home WiFi networking)
WiFi 5 GHz application: -0.75 dB (dual-band 2.4/5 GHz WiFi to 5 GHz networks)
Compare this to a cheaper RG-58 shielded cable of the same length- the gain-loss would be -0.5 dB for 915 MHz, -0.9 dB for 2.4 GHz WiFi, and -1.6 dB for 5 GHz WiFi
That means standard RG-58 cables have about 2x times as much gain loss as this cable!
Additional Features:
- Length: 1m (3 feet)
- Impedance: 50 OHM
- Frequency: all bands from 0-6 GHz, including 868-915 MHz LoRa, 2400-2700 MHz WiFi/ 5100-5900 MHz WiFi
- Compatible with 802.11ac, 802.11n, 802.11g and 802.11b WiFi standards, as well as LoRa 915 MHz
- Compatible with many WiFi adapters & Helium miners with RP-SMA ports
