LILYGO® T-Display S3 Pro AMOLED Display K231 (without camera)
Pickup available at 3205 SW 40th Blvd Ste A
Usually ready in 1 hour
T-Display S3 pro is the upgraded version of T-Display S3. All tariffs included, ships from Florida, USA.
The main thing is the use of a larger screen 2.33-inch screen and the addition of the chip SY6970 for phone OTG.
Continuing the way of T-display S3, the case is ABS, and there is added the expansion of the camera module through POGOpin for the use of a built-in module. Ambient light and proximity sensors on the top of the screen, two integrated QWIIC ports, and a battery power switch.
Note:

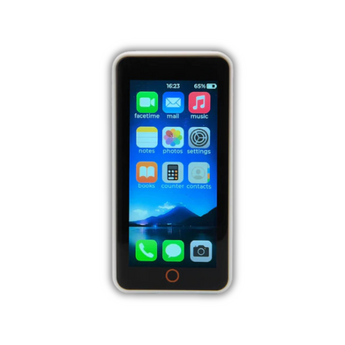

The interface shown in the picture is a sample UI routine, not a function that this product has. Specific on-board features are subject to detailed descriptions
Specifications
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5+BT mesh |
| Programming Platform | Arduino-ide, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Support | USB OTG |
| Onboard functions | Boot+Reset+IO12+IO16 |
| Button 2.33 inch Touch IPS TFT LCD: |
| Resolution | 222(H)RGB x 480(V) |
| Drive Chip | ST7796 |
| Interface | SPI |
| 2C Digital Light Sensor LTR-553ALS-01: |
| Features | Digital light sensor [ALS] & proximity sensor [PS] |
External board |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Pin Diagram
External board
Without Camera
With Camera
Only Lens Cover
Mainboard With MVSR Board
More Details
T-Display S3 Pro
External board
Only Black Lens Cover
