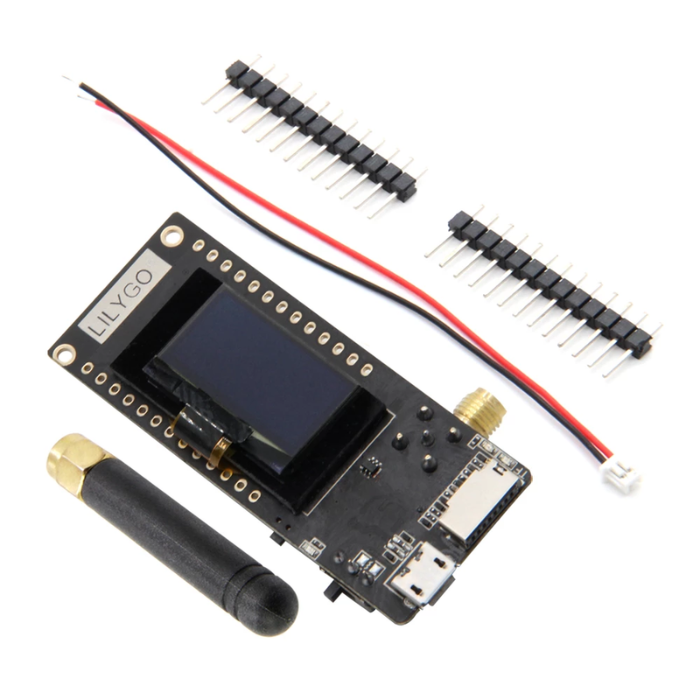

LILYGO® TTGO LoRa32 V2.1_1.6 Version 915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA Q211

LILYGO® TTGO LoRa32 V2.1_1.6 Version

At the TTGO LoRa V2.1 ,we added the SMA and IP5306 to the board, which allows it to do more things.

In terms of the power switch, LILYGO has changed the switching interaction mode.
The added SMA antenna can enhance signal transmission.

(Notice: does not include battery and SD card)
Compatible batteries with Micro JST available here

Product Description

Working voltage: 1.8~3.7v
Acceptable current: 10~14mA
Transmit current: 120mA@+20dBm
90mA@+17dBm
29mA@+13dBm
Operating frequency: 433/868/915MHz
Transmit power: +20dBm
Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz
FIFO space: 64Byte
Data rate: 1.2K~300Kbps@FSK
0.018K~37.5Kbps@LoRa
Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM，OOK
Interface form: SPI
Operating temperature: -40℃- +85℃

Digital RSSI function

Automatic frequency correction
Automatic gain control
Fast wake-up and frequency hopping
Highly configurable data packet handler
SMA Antenna
IP5306

Github:
https://github.com/Xinyuan-LilyGo/TTGO-LoRa-Series
https://github.com/LilyGO/ESP32-Paxcounter
