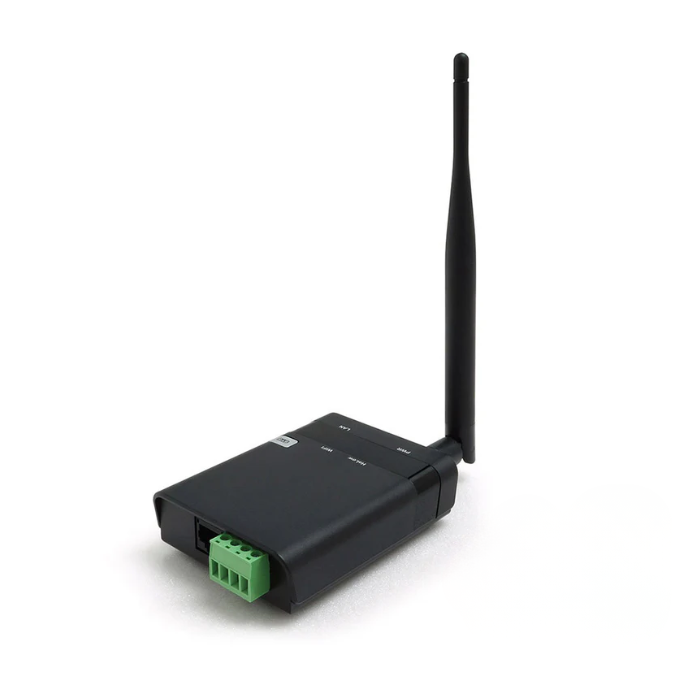

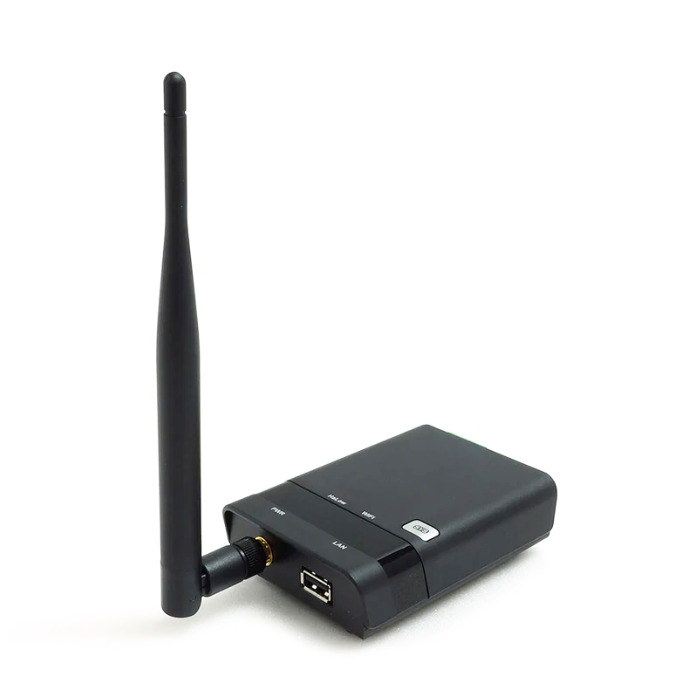

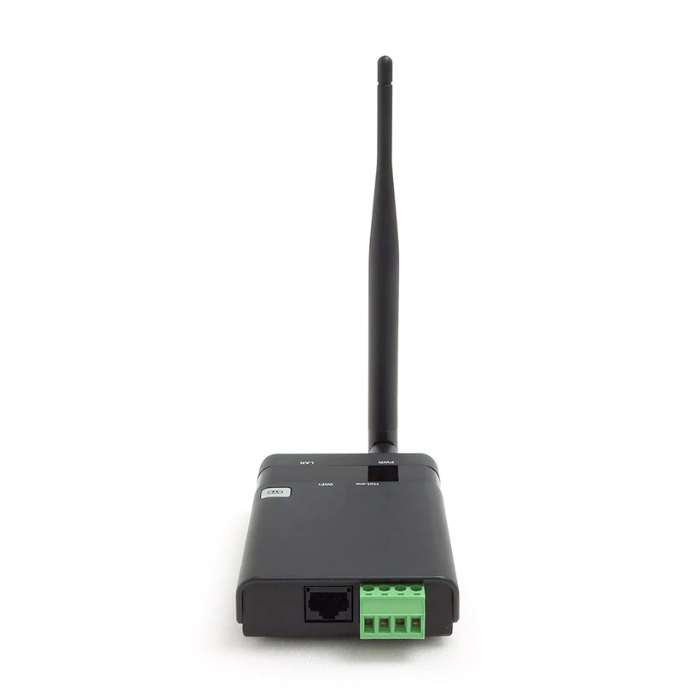

ALFA Network HaLow-R485 WiFi HaLow + WiFi 4 + RS485 + USB port IoT AP/CPE

€114,95
Frequency: US 915 Mhz

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

The HaLow-R485 is a long-range、sub-1GHz unlicensed band WiFi HaLow IoT AP/CPE. Since it supports both WiFi HaLow and WiFi 4 dual-band concurrent, the application scenarios are beyond imagination, such as IoT gateway, weather stations, industrial monitoring, medical patient monitoring, agriculture monitoring, surveillance camera and wireless remote control for RS-485 sensors.

Key Features

  1. Morse Micro MM6108 HaLow chipset
  2. 1x WiFi HaLow detachable antenna
  3. 2x WiFi 4 embedded antenna
  4. 1x RJ45 Fast Ethernet connector
  5. 1x RS-485 terminal block
  6. 1x USB2.0 Type-A connector



Specifications

WiFi 4 (IEEE 802.11n)

Chipset

MediaTek MT7628

Flash

SPI Flash 32 MB

RAM

DDR2 SDRAM 128 MB

WiFi standard

IEEE 802.11n (2.4 GHz)

Channel bandwidth

20/40 MHz

Max. date rate (Phy rate)

300 Mbps

Antenna

2x WiFi 4 embedded antenna

WiFi HaLow (IEEE 802.11ah)

Chipset

Morse Micro MM6108

WiFi standard

IEEE 802.11ah (sub-1GHz)

Channel bandwidth

1/2/4/8 MHz

Max. date rate (Phy rate)

Up to 32.5 Mbps @ Bandwidth 8 MHz

Antenna

1x WiFi HaLow SMA detachable antenna

General

Ethernet

1x Fast Ethernet with ESD protection

RS-485

1x RS-485 terminal block (B: RS-485(B); A: RS-485(A))

USB

1x USB 2.0 Type-A

UART

2x UART interface reserve (internal interface)

I²C

1x I²C interface reserve (internal interface)

Button

1x push-button (reset)

LED

1x Power

1x WiFi HaLow

1x WiFi 2.4 G

1x Ethernet

1x Reset / System

Power terminal

Power rated: DC 12 V / 1 A (V: DC 12 V; G: Ground)

Software

OpenWrt firmware with source available



11ah RF Specifications

TX Output Power

Bandwidth 1, 2 MHz

Min (dBm)

Typical (dBm)

Max (dBm)

MCS 0

23.5

25

26.5

MCS 7

17.5

19

20.5

Bandwidth 4 MHz

Min (dBm)

Typical (dBm)

Max (dBm)

MCS 0

23.5

25

26.5

MCS 7

17.5

19

20.5

Bandwidth 8 MHz

Min (dBm)

Typical (dBm)

Max (dBm)

MCS 0

23.5

25

26.5

MCS 7

17.5

19

20.5



RX Sensitivity

MCS

index

Modulation

scheme

Coding

rate

Phy rate (kbps)

per BW

Minimum receive sensitivity (dBm)

per BW

1 MHz

2 MHz

4 MHz

8 MHz

1 MHz

2 MHz

4 MHz

8 MHz

0

BPSK

1/2

333

722

1500

3250

-102

-100

-98

-94

1

QPSK

1/2

667

1444

3000

6500

-99

-97

-94

-90

2

QPSK

3/4

1000

2167

4500

9750

-94

-94

-92

-88

3

16-QAM

1/2

1333

2889

6000

13000

-93

-91

-88

-85

4

16-QAM

3/4

2000

4333

9000

19500

-90

-87

-85

-82

5

64-QAM

2/3

2667

5778

12000

26000

-86

-84

-81

-77

6

64-QAM

3/4

3000

6500

13500

29250

-85

-82

-80

-76

7

64-QAM

5/6

3333

7222

15000

32500

-84

-81

-78

-74

10

BPSK

1/2 x 2

167

N/A

-104

N/A



Order Information

Order Model Information

HaLow-R485 /US

902 MHz – 928 MHz

26 MHz



Interface
