BACnet Gateway for LoRaWAN® WisGate Industrial gateway parallel MQTT data flow

€332,95

WiFi Choice: 716176- Without LTE

716176- Without LTE 716177- With LTE Cat4(EG95-NA) for North America

Product variants

Quantity

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

Rokland is a Gold Level distributor for RAK Wireless. Please note when comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland, items ship from USA so no additional shipping or tariffs apply.

BACnet Gateway for LoRaWAN RAK7437 bridges wireless LoRaWAN sensors with existing BACnet/IP building and industrial automation systems—without changing established architectures.

It exposes LoRaWAN sensor data as native BACnet/IP objects, while simultaneously forwarding the same data via MQTT for analytics, monitoring, or cloud platforms.

Designed for permanent installations, RAK7437 runs WisGateOS 2 (OpenWRT-based) and delivers predictable behavior, long-term stability, and controlled system growth.

Native BACnet/IP object exposure (no proprietary middleware)
Parallel BACnet/IP and MQTT data paths
Built-in frame buffering for network interruptions
IP30 industrial enclosure with PoE and wide DC input

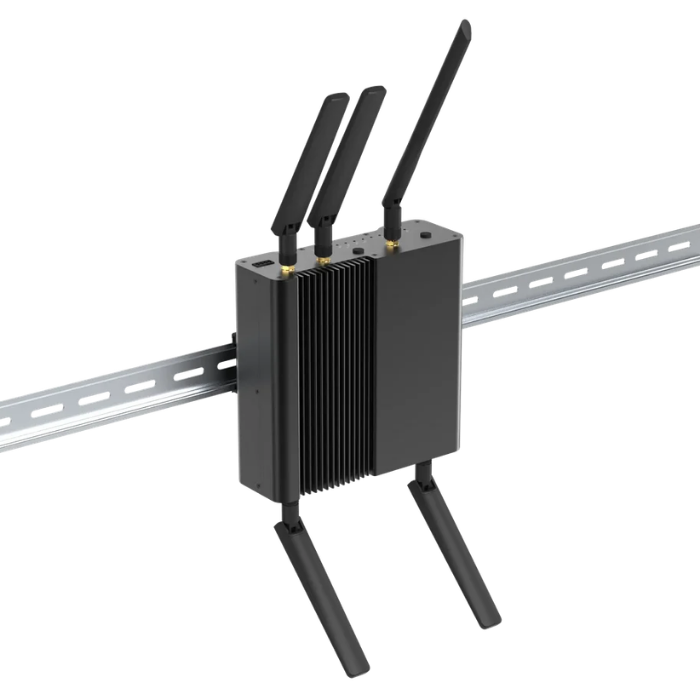

Designed for cabinets, control rooms, and field enclosures

Who Is BACnet Gateway for LoRaWAN RAK7437 Designed For?

Building owners and facility managers
Expand sensor coverage while preserving existing BACnet/IP logic, graphics, alarms, and schedules.
System integrators and automation engineers
Deliver predictable LoRaWAN-to-BACnet integrations with stable object mapping and controlled polling behavior.
Industrial operators and infrastructure teams
Deploy wireless sensing alongside wired automation systems under continuous, long-term operation.
Retrofit and modernization projects
Add sensors for LoRaWAN where rewiring is impractical, cost-prohibitive, or operationally risky.
Organizations requiring parallel data access
Use BACnet/IP for BMS operation and MQTT for analytics or cloud platforms without coupling the two.

Why You Need an Industrial LoRaWAN BACnet Gateway

System continuity: Extends existing infrastructure without altering current automation logic
Operational reliability: Maintains data delivery during network interruptions
Deployment flexibility: Adapts to varied sites and backhaul constraints

How it works:

LoRaWAN sensors send data wirelessly to BACnet Gateway for LoRaWAN RAK7437.
The gateway decodes the data and maps each sensor to a BACnet/IP object.
The building management system discovers and polls these objects like wired devices.

What stays unchanged:

Existing BACnet logic and control rules.
Graphics, alarms, schedules, and trends.
Certified BMS workflows and commissioning processes.

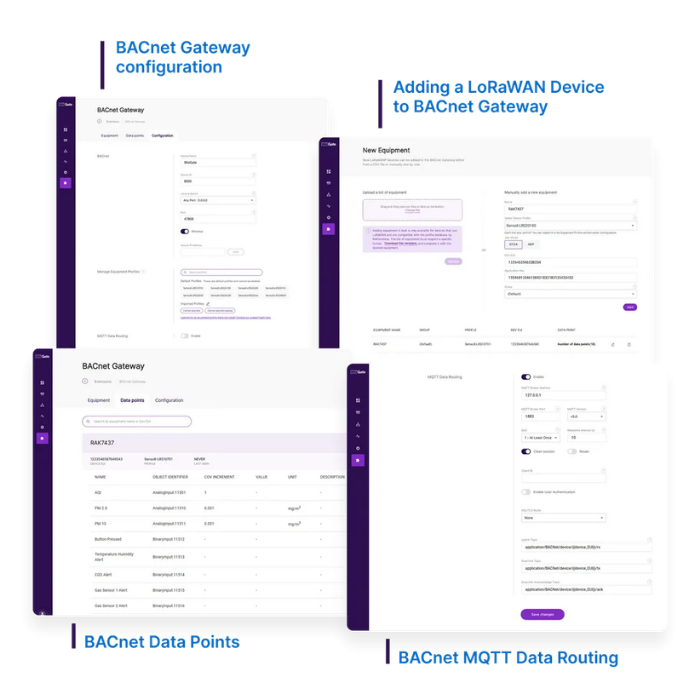

BACnet Data Point Mapping

RAK7437 uses a standardized BACnet data point model that is decoupled from individual LoRaWAN devices.

Each LoRaWAN sensor is mapped to predefined BACnet object types
BACnet object IDs and naming remain stable over time
Sensor replacement does not require BMS reconfiguration

As a result, sensor replacement or upgrades do not require:

Reconfiguration of BACnet objects
Changes to BMS logic or rules
Updates to existing dashboards or graphics

This approach simplifies maintenance and reduces engineering effort throughout the system lifecycle.

BACnet Access Control

Supports BACnet device whitelisting.
Only authorized BACnet clients are allowed to read data from the gateway.
Prevents unauthorized device access on the BACnet network.

Performance Characteristics

Designed to handle high-frequency and batch BACnet read requests.
Maintains stable response behavior under large data point loads.
Preserves consistent BACnet object mapping during continuous operation.

Parallel BACnet and MQTT Data Architecture

BACnet Gateway for LoRaWAN RAK7437 provides two independent data paths from the same LoRaWAN sensor data.

BACnet/IP path:
Delivers native BACnet objects to the building management system for polling, alarms, and trending.
MQTT path:
Forwards the same data to cloud platforms, analytics tools, or monitoring systems.

These data paths are isolated. Changes to the MQTT configuration do not affect BACnet behavior. Local buffering preserves data during network outages.

Use Case #1: Industrial Retrofit with BACnet Integration

A facilities team faced limited sensor coverage and manual readings. Sensors for LoRaWAN added via the gateway increased data points by 3×. BACnet mapping tested via staged reads showed <2% latency variance. Production ran continuously.

Use Case #2: Distributed Monitoring Across Multiple Sites

Across five sites, baseline data loss averaged 8%. After deployment, buffered forwarding reduced loss to under 0.5%, validated through week-long packet audits. Rollout followed identical configurations. This approach demonstrated how a single industrial IoT gateway for buildings can support standardized monitoring across distributed locations.

Comparison Table: BACnet Gateway for LoRaWAN RAK7437 vs Common LoRaWAN BACnet Gateways

Feature	BACnet Gateway for LoRaWAN RAK7437 (This product)	MultiTech	Robustel	Milesight	Wattsense
Production-Grade Industrial Gateway	Yes	Yes	Yes	Yes	Yes
Built-in Frame Buffering	Yes	Limited	Limited	No	No
Parallel BACnet + MQTT	Yes	No	Partial	No	No
OpenWRT-Based OS	Yes	No	No	No	No
BACnet Object Stability	Yes	Partial	Partial	Partial	Yes
Cellular Option	Yes (RAK7437C)	Yes	Yes	Yes	No
Retrofit-Focused Design	Yes	Yes	Yes	Partial	Yes
Best Use Case	Long-term BMS + IoT	BMS extension	Industrial WAN	Cost-sensitive BMS	Fast retrofit

Feature availability is based on publicly available documentation and typical configurations. Actual capabilities may vary by model and firmware version.

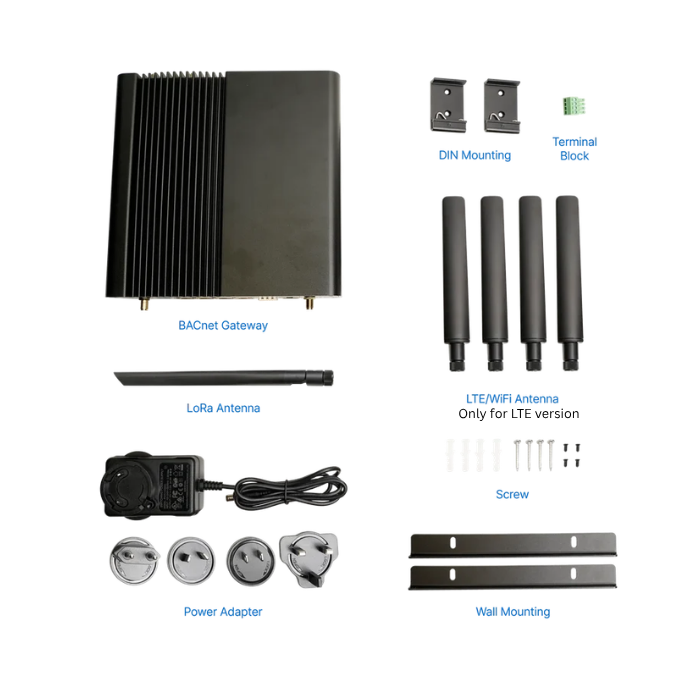

What’s in the Box

1 pc BACnet Gateway
2 pc LTE Antenna (RAK7437C variant only)
2 pc Wifi Antenna
1 pc LoRa Antenna
2 pc Wall Mounting Kit
2 pc Din Mounting Kit
1 pc Power Adapter
1 pc Terminal block
1 Screw Set

How to Get Started with BACnet Gateway for LoRaWAN RAK7437
