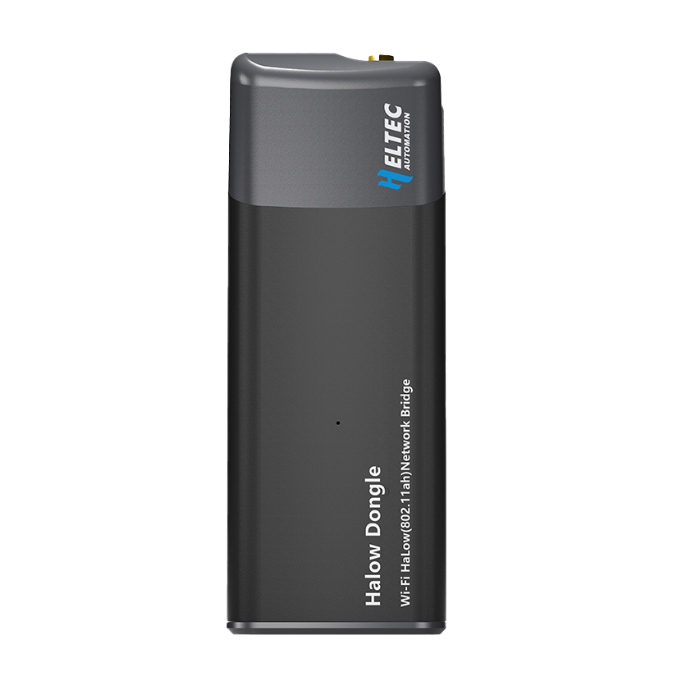

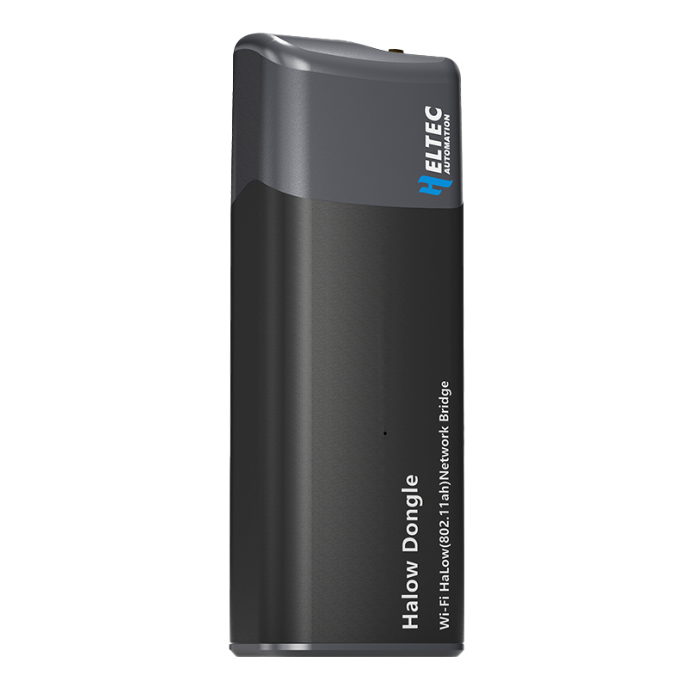

Heltec Wi-Fi HaLow Dongle V2 — 802.11ah Long Range Wireless Network Bridge

HaLow Dongle(HT-HD01) is a plug-and-play WiFi - HaLow USB dongle bridge designed to
extend the transmission range of traditional networks, offering lower power consumption and improved penetration capabilities. Utilizing Wi-Fi HaLow technology and adhering to the IEEE 802.11ah standard, HT-HD01 operates in the unlicensed SUB-1G frequency band (902–928 MHz).

It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of
21±1 dBm and data rates of up to 32.5 Mbps@8M. HT-HD01 seamlessly integrates with traditional Wi-Fi networks and is designed for ease of deployment. Its lightweight form factor, simple configuration process, and versatile operating modes make it an excellent choice for a wide range of applications.

Built on a partnership with Morse Micro

In one of the industry's first HaLow partnerships, Heltec partnerned with Morse Micro to manufacture this special HaLow chip. Together they created this module optimized for easy integration into a variety of PCBs, delivering excellent RF performance in the 902–928 MHz band. With long‑range transmission, multiple channel bandwidth options, and low power consumption, the HT‑HC01 module is ideally suited for battery‑operated devices that require extended sleep modes without sacrificing connectivity.

Specifications:

MCU MT7628
Wi-Fi HaLow module HT-HC01
Wi-Fi IEEE 802.11 b/g/n
Ethernet RJ45(10/100M)，USB-C
Wi-Fi HaLow
Standard: IEEE 802.11 ah
Frequency: 902-928MHz
Max. TX power: 21±1dBm
Bandwidth: 1/2/4/8 MHz(See table2.5)
Max Data Rate: 32.5Mbps @ 8 MHz

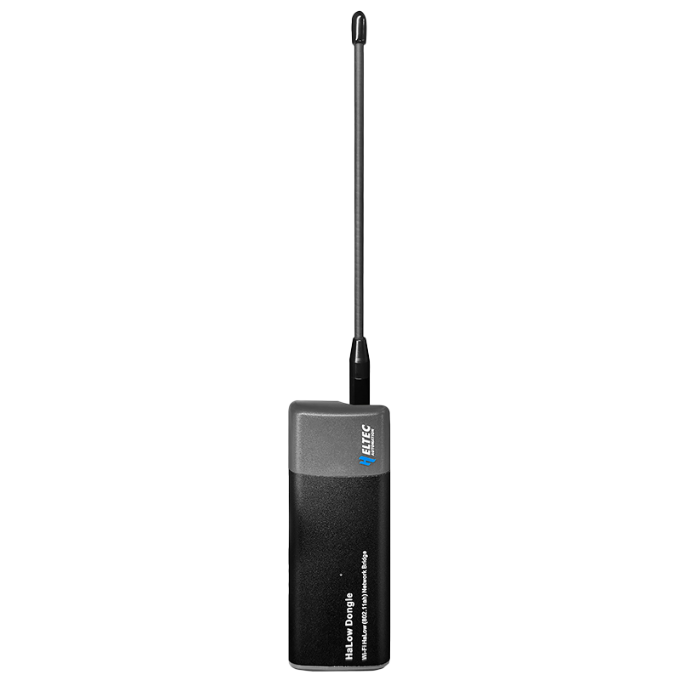

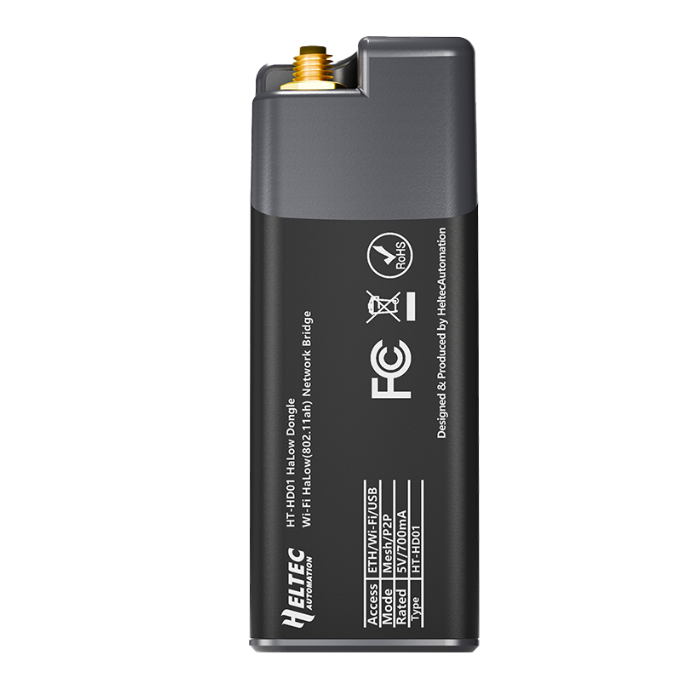

ANT Interface SMA female socket
Operating Condition
Temperature: -20 ~ +70℃
Humidity: 10%～90%( no-condensing)
Power USB-C, 5V
Consumption 300mA(Typical)
Ingress Protection Without waterproof features
Shell material Aluminum Alloy, Plastic
Weight 53.5g (Antenna included),40g(Antenna excluded)
Dimensions 87.5②*32.5*20m3(Antenna excluded)

More data available in product data sheet
