Ai Thinker Ra-01SH-P LoRa Module sx1262 chip 803mhz-930mhz
Pickup available at 3205 SW 40th Blvd Ste A
Usually ready in 1 hour

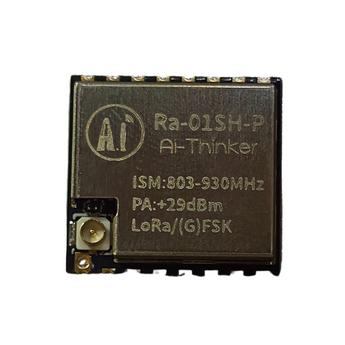

The Ra-01SH-P is a LoRa (Long Range) series module designed for ultra-long-distance spread spectrum communication. Developed by Shenzhen Ai-Thinker Technology Co., Ltd., this module utilizes the SX1262 RF chip and LoRa™ modulation technology to achieve robust and reliable wireless communication over extended ranges. It's ideal for applications requiring long-range connectivity with minimal power consumption.
Key Features:
- LoRa® Modulation: Employs SEMTECH's patented LoRa™ modulation for superior range, anti-interference, and power efficiency compared to traditional modulation techniques.
- Frequency Band: Operates in the 803MHz ~ 930MHz frequency band.
- High Output Power: Configurable transmit power, up to +29dBm (with 3.3V PA supply) or +31dBm (with 5V PA supply – requires BOM modification).
- High Sensitivity: Receiving sensitivity as low as -137dBm @SF10 125KHz.
- Compact Size: Small form factor (17*16*3.2mm) with a double-row stamp hole patch package for easy integration.
- Flexible Antenna Options: Supports multiple antenna installation methods, including half-hole pad, through-hole pad, and IPEX connector.
- Low Power Consumption: Low receiving current of only 16mA.
- SPI Interface: Uses a standard SPI interface for communication with a host microcontroller.
- Data Packet Engine: Supports CRC and up to 256-byte data packets.
- Spreading Factors: Supports SF5/SF6/SF7/SF8/SF9/SF10/SF11.
Typical Applications:
- Automatic Meter Reading
- Home/Building Automation
- Security Systems
- Remote Irrigation Systems
- IoT Devices
Technical Specifications:
- Model: Ra-01SH-P
- Package: SMD-16
- Size: 17*16*3.2(±0.2)MM
- Frequency: 803MHz~930MHz
- Operating Temperature: -40℃~ 85℃
- Storage Temperature: -40℃~ 125℃, < 90%RH
- Supply Voltage: 3.0~3.6V (typical 3.3V), >1A
- VCCPA Supply Voltage: 3.0 - 5.25V (Note: 5V requires BOM modification. Contact Ai-Thinker)
- Interface: SPI
- Programmable Bit Rate: Up to 300kbps
Important Considerations:
- ESD Sensitivity: This module is ESD sensitive and requires proper handling precautions.
- Antenna: Requires an external antenna. Ensure the antenna is properly installed and positioned for optimal performance. Avoid placing the antenna near metal objects or inside a metal enclosure.
- Power Supply: Use a stable 3.3V power supply with a peak current above 1A. Ripple should be controlled within 100mV.
- VCCPA Configuration: The module's PA is powered by the 3V3 pin by default. For +31dBm output power using a 5V supply, contact Ai-Thinker to modify the module BOM.
- Software: Operates based on the SX1262 chip manual.
Pin Definitions:
Pin No. | Name | Function |
---|---|---|
1 | ANT | Connect antenna |
2 | GND | Ground |
3 | 3V3 | Typical value 3.3V power supply |
4 | RESET | Reset pin |
5 | VCCPA | FEM chip power supply pin, input 5V maximum power can reach +31dBm. |
6 | DIO1 | Digital IO1 software configuration |
7 | DIO2 | Digital IO2 software configuration |
8 | DIO3 | Digital IO3 software configuration |
9 | GND | Ground |
10 | BUSY | Status indication pin |
11 | RF_EN | FEM chip enable pin, high level is effective, the module is pulled up by default; high level is in working state, low level is in sleep state |
12 | SCK | SPI clock input |
13 | MISO | SPI data output |
14 | MOSI | SPI data input |
15 | NSS | SPI chip select input |
16 | GND | Ground |
EPA | GND | Ground, reliable grounding is required to facilitate heat dissipation |
Package Includes:
- 1 x Ra-01SH-P LoRa Module
Disclaimer:
Please refer to the complete datasheet for detailed technical information and application guidelines.
Ra-01SH-P Datasheet
Note: Always handle the module with proper ESD precautions.
Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
Online Technical Manuals and Instructions (Click Here)
