RAK7201V2 WisNode Button 4K US915 SKU 206020
Pickup available at 3205 SW 40th Blvd Ste A
Usually ready in 1 hour
Product Description

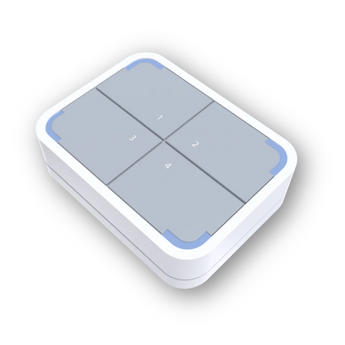

The WisNode Button is a remote wireless trigger device. It supports user-defined functions for each key and is based on the LoRaWAN1.0.3 protocol. Supported LoRaWAN® band is US915.
The updated RAK7201V2 RAK Button 4K comes with an upgraded 400mAh battery. It is based on the RAK3172 low-power long-range transceiver module for LoRaWAN® for more optimized battery performance and better connectivity. The RAK7201V2 provides improved visualization of the battery charge with the four LEDs.
The Button is suitable for a variety of Smart Home applications: Entertainment system control, Control of Lights, a Snooze Button for your Alarms, or a remote trigger. With long-range wireless connectivity, amazing battery life, and four programmable buttons, there are a ton of applications this device can fit into.
Product Features
- 4 Buttons with LED indicator
- LoRaWAN®1.0.3 compatible
- Battery: 400mAh
- Power Consumption: Sleep mode 6.25 uA @ 4.2 V
- Operating current (TX mode) *: 87(19.2 dBm @ 868Mhz)
- Battery working time: ~ 1 year (Rechargeable)
- Working Environment: Indoor
- Product Size: 43x57x15 mm
- Operating Temperature: -10º C to 60º C
- Based on RAK3172
- Charging and configuration port: micro-USB
*Transmit current depends on factors such as transmit power, SF, and Payload Length
Product Inclusions
- 1pc RAK7201V2-4 Key Button
- 1pc Micro USB Cable
- 1pc Double-sided adhesive Sticker
