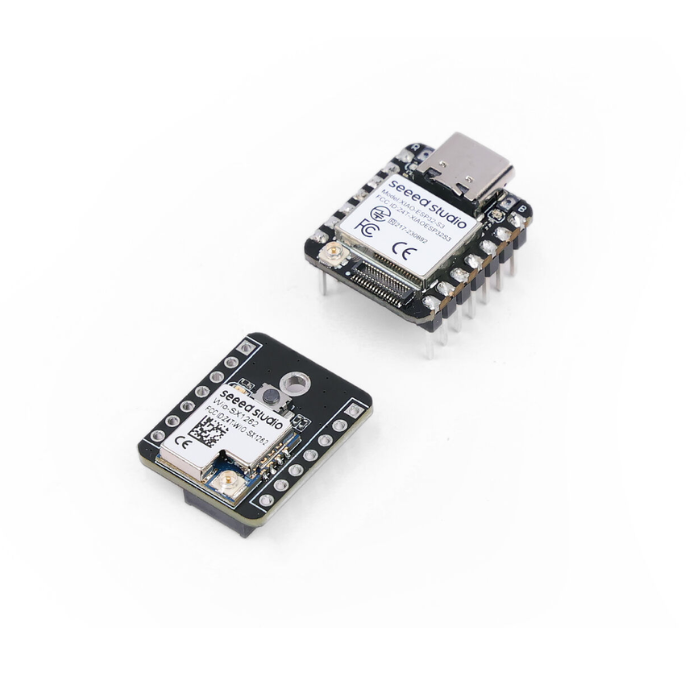

Seeed Studio XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa

€17,95

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

SKU 102010611

This thumb-sized LoRa dev kit, featuring the XIAO ESP32S3 and Wio-SX1262 LoRa module, is an ideal starter kit for Meshtastic and LoRa/LoRaWAN projects. Supporting WiFi, BLE, and LoRa, it includes a built-in power management chip and can be extended via IIC, UART, and other GPIO interfaces, with compatibility for Arduino development.

Ready for Meshtastic：Pre-flashed with Meshtastic firmware, the kit works out of the box and can quickly join or create a Meshtastic mesh network.

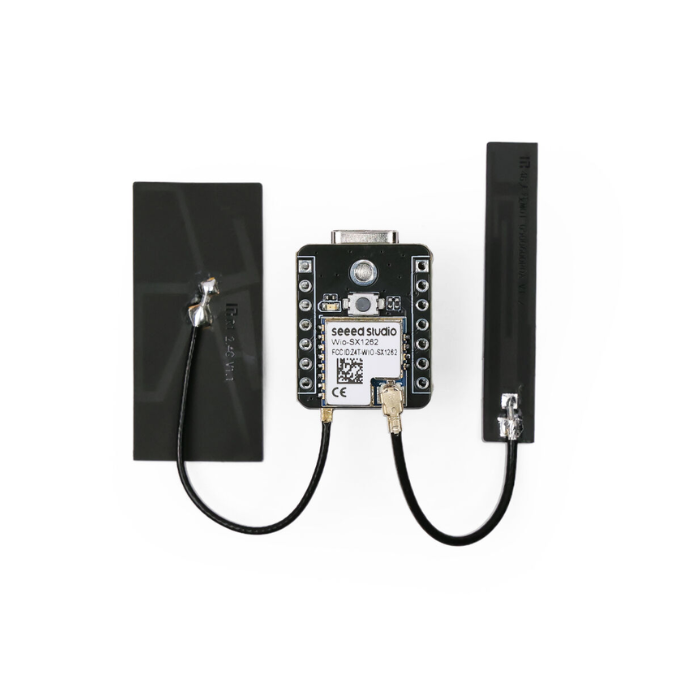

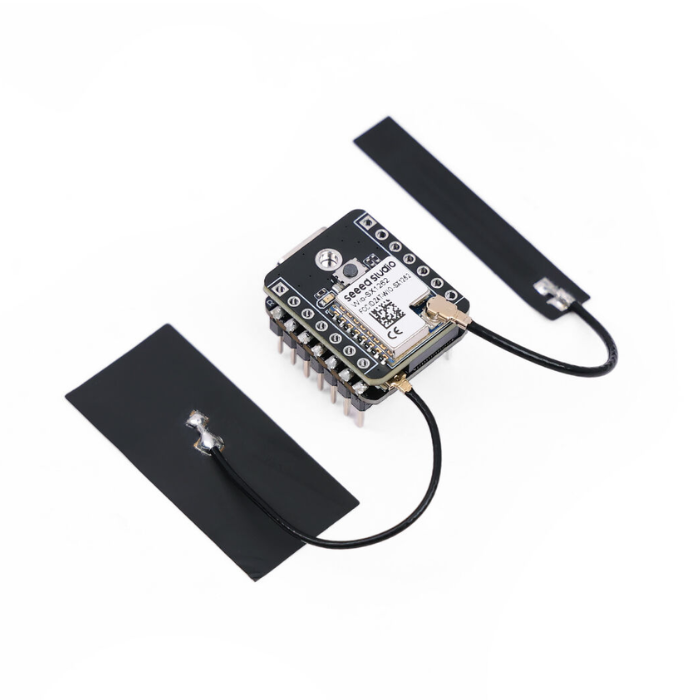

Dual Wireless Connectivity：Supports long-range LoRa communication (862–930 MHz) along with 2.4 GHz Wi-Fi and BLE 5.0. When used with a U.FL antenna, it can achieve 2–5 km LoRa communication and 100 m+ Wi-Fi/BLE range.

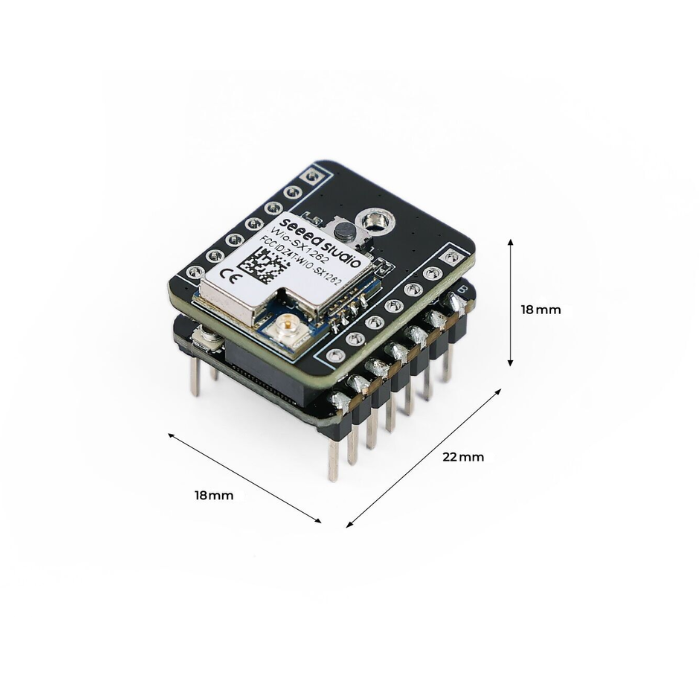

Thumb-Sized Compact Design：With a compact size of just 21 × 18 mm and the classic XIAO form factor, it is ideal for space-constrained projects such as wearables and embedded devices.

Powerful ESP32-S3 MCU：Powered by the ESP32-S3 dual-core Xtensa processor running up to 240 MHz. The board includes multiple expansion interfaces and supports Arduino and MicroPython development.

Integrated Power Management：Equipped with a USB Type-C interface and built-in lithium battery charging management for flexible power options.

Flexible for Multiple Applications：The same hardware can be used as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa/LoRaWAN sensor platform

Compatible with XIAO Expansion Board for adding screens and sensors, and add Grove sensors via the Grove expansion Board.

Specification

ESP32S3

ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz

LoRa

Based on Semtech SX1262, supports 862-930MHz,

BLE

Bluetooth 5.0, Bluetooth mesh

Wi-Fi

Complete 2.4GHz Wi-Fi subsystem

Interface

ESP32S3:

1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button

Wio-SX1262:

1xUser button, 1xSPI(connect to ESP32S3)

Power

Input voltage (Type-C): 5V

Input voltage (BAT): 4.2V

Charging battery current: 100mA

Working Temperature

-40°C ~ 65°C

Dimensions

21 x 17.8mm

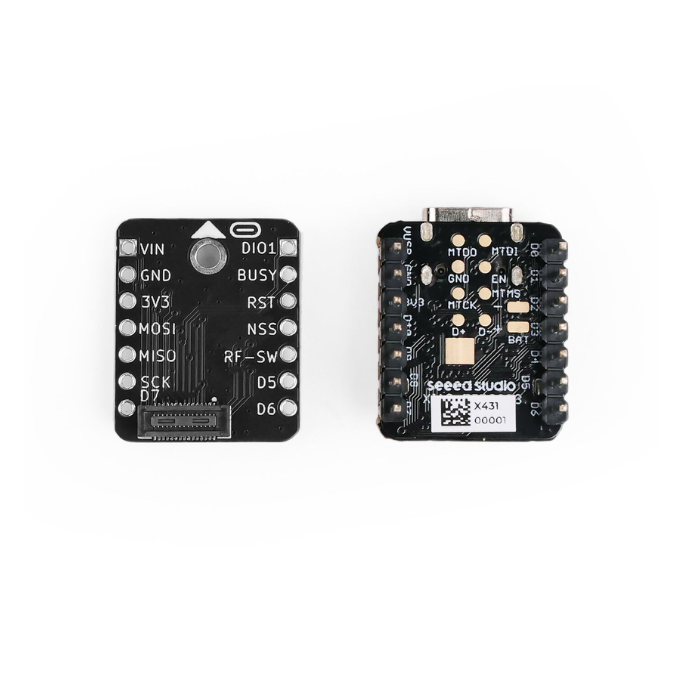

Hardware Overview

ESP32S3:

Wio-SX1262 extension board:


Application
  • Meshtastic Node & Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
  • LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN. It can be used with the XIAO extension board and Grove sensors for rapid prototyping.
  • LoRaWAN Single Channel Gateway: The most cost-effective single-channel LoRaWAN gateway for connecting multiple LoRaWAN sensors and transmitting data to LoRaWAN Network Servers such as The Things Network and Chirpstack.
