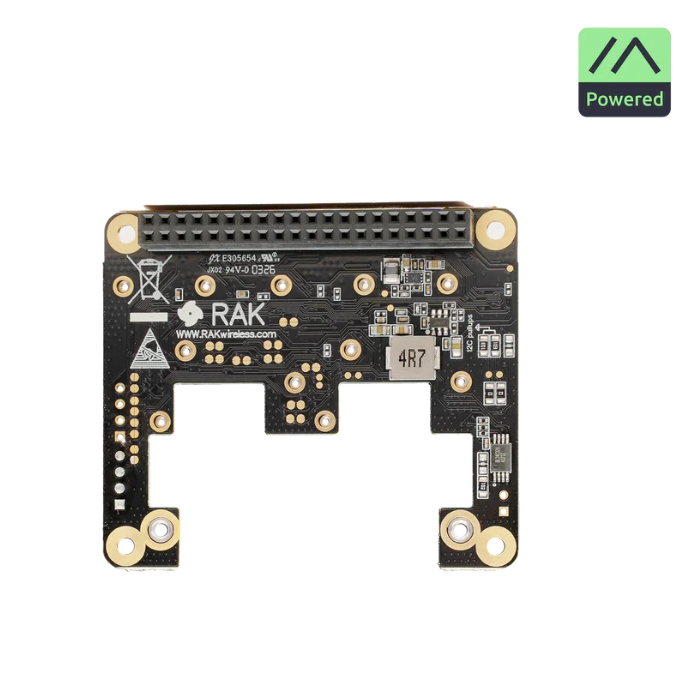

WisMesh Raspberry Pi HAT RAK6421 SKU: 610012

WisMesh Pi HAT is a Raspberry Pi HAT based on RAK6421, designed to connect WisBlock LoRa radios and sensors directly to Raspberry Pi platforms (Pi 4, Pi 5).

It is built for users who want to run Meshtastic on Raspberry Pi (meshtasticd) and need:

• Flexible radio options (standard or high-power)
• Sensor and GPS expansion
• A stable base for long-running Meshtastic nodes or gateways

By choosing the right radio and sensor combination, WIsMesh Pi HAT can be used as a city node, relay, or high-power backbone node.

Why Use a Raspberry Pi HAT for meshtasticd?

Running meshtasticd Raspberry Pi setups for an always-on node is easiest when the radio and sensors are integrated like a single appliance instead of a collection of cables and adapters.

A Meshtastic Raspberry Pi HAT gives a clean, repeatable hardware base for building a Meshtastic base station, Meshtastic relay node, or Meshtastic MQTT gateway, where a gateway refers to a fixed, always-on node that bridges mesh traffic to IP networks (such as MQTT or logging systems) — especially when you want higher power radios and long-term stability.

• More reliable than USB/breadboards: Direct 40-pin connection avoids USB enumeration issues, loose cables, and connector fatigue that can cause random dropouts in long-running nodes.
• Stable power and signaling: Fixed SPI/I²C/UART paths and consistent power routing reduce resets and flaky radio behavior in always-on deployments.
• Better for gateway workloads: A Meshtastic gateway Raspberry Pi can run MQTT forwarding, logging, Node-RED, Grafana, and visualization alongside meshtasticd without MCU constraints.
• High-power radio ready: Supports modular LoRa radios like RAK13302 Meshtastic (SX1262 Meshtastic Raspberry Pi) for building a high power Meshtastic node for relays and backbone links.
• Sensor + GPS expansion: Easy add-ons (I²C sensors, GPS) make the same platform useful for telemetry, location-aware relays, and environmental monitoring gateways.
• Repeatable builds at scale: Standardized hardware makes it easier to clone configs, swap units, and deploy multiple identical nodes with fewer setup errors.

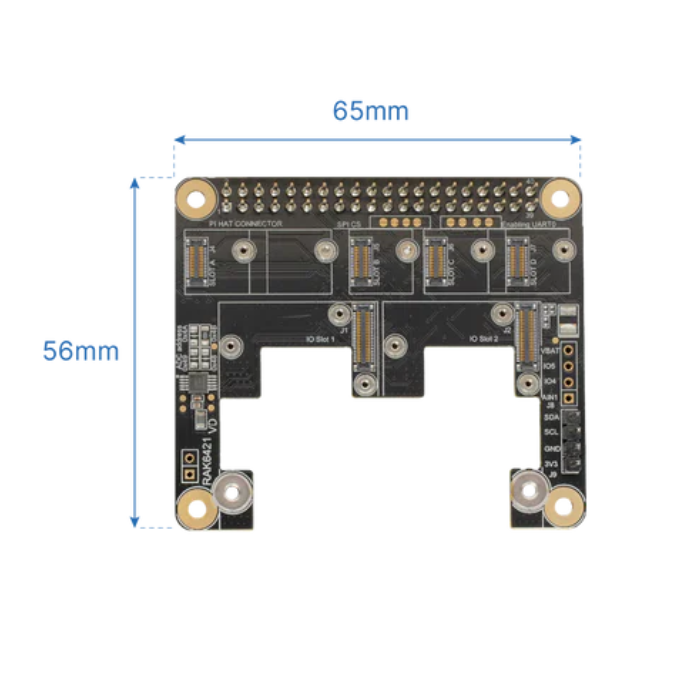

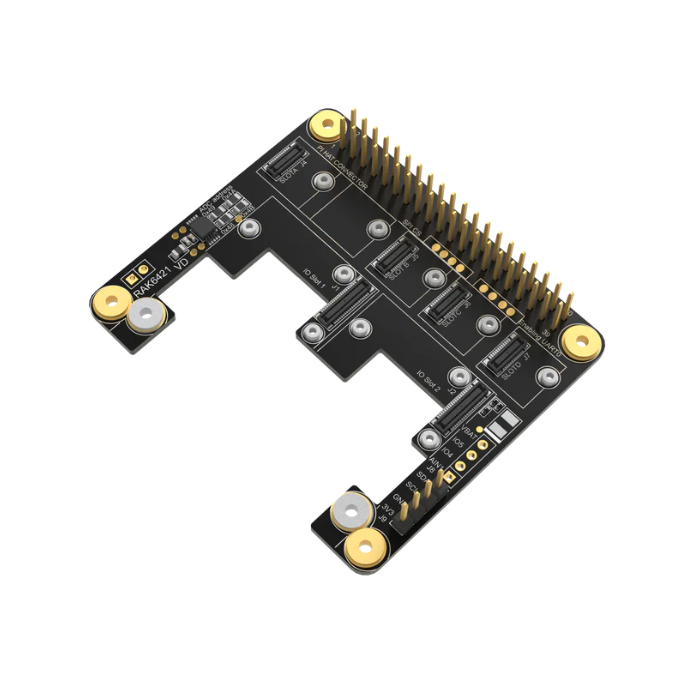

Key Features of WisMesh Pi HAT RAK6421

• Standard 40-pin Raspberry Pi header
• 2 × WisBlock IO slots (for LoRa radios)
• 4 × WisBlock Sensor slots (I²C)
• Supports LoRa, GPS, environmental sensors, motion sensors
• Onboard I²C ADC for analog input
• Powered from Raspberry Pi 5V rail (3.3V & VBAT outputs)
• Fully compatible with RAK13300 and RAK13302
• HAT+ compliant with onboard EEPROM for hardware auto-discovery
• Designed for Meshtastic (meshtasticd) on Linux

Supported LoRa Radios

High-power configurations are suitable for fixed installations such as rooftops, hills, and backbone deployments.

Supported Sensors & Modules

Sensor support depends on Meshtastic firmware and keeps evolving. Refer to Meshtastic documentation for the latest compatibility.

How WisMesh Pi HAT Works in a meshtasticd Raspberry Pi Build

WisMesh Pi HAT RAK6421 acts as the hardware integration layer between a Raspberry Pi and a WisBlock LoRa radio. Mounted directly on the 40-pin header, it provides fixed SPI, I²C, and UART routing, stable power delivery, and structured expansion for GPS and sensors. This eliminates USB adapters and loose wiring.

On the software side, meshtasticd runs as a Linux service on Raspberry Pi OS or Ubuntu. It interfaces with the attached LoRa radio through the HAT’s SPI connection, handling mesh networking, routing, and radio configuration.

For gateway deployments, meshtasticd can run alongside MQTT brokers, Node-RED, Grafana, and logging services. This allows a single Meshtastic gateway Raspberry Pi to forward packets, visualize traffic, and integrate with automation systems while maintaining stable radio connectivity through the HAT.

Choose the radio based on the deployment role: RAK13300 (SX1262 Meshtastic Raspberry Pi) for standard nodes, or RAK13302 Meshtastic for a high power Meshtastic node used as a fixed relay or backbone hop.

Meshtasticd vs Firmware-Based Nodes

Comparison: WisMesh Pi HAT vs Alternatives

Use Case Examples for WisMesh Pi HAT RAK6421

Field deployments benefit most when nodes are standardized, testable, and easy to reproduce across locations and operators.

Use Case #1 : Rooftop Backbone Relay Node

A regional mesh network experienced unreliable hops due to mixed hardware builds. Using WisMesh Pi HAT RAK6421 with a high-power radio, engineers standardized relay nodes, achieving 2.4× link stability after 72-hour field testing. Production rollout showed >99% uptime.

Use Case #2: Indoor Sensor Gateway

In a multi-floor building, baseline USB-based nodes dropped messages under load. By deploying a Pi-based gateway using WisMesh Pi HAT RAK6421, packet delivery improved from 82% to 96% during scripted MQTT tests. Ten identical units were deployed with zero assembly variance.

Software & Compatibility

• Compatible with Meshtastic (meshtasticd)
• Supports Raspberry Pi OS, Ubuntu, and custom Linux builds
• Full access to I²C, SPI, UART, and GPIO
• HAT+ compliant with onboard EEPROM for hardware auto-discovery

The system can automatically detect the board at boot and apply the correct hardware configuration, reducing manual setup and deployment errors.

Notes for Users

• Designed for Raspberry Pi–based Meshtastic nodes, not low-power battery devices
• Output characteristics depend on the selected LoRa radio module
• High-power configurations must comply with local RF regulations

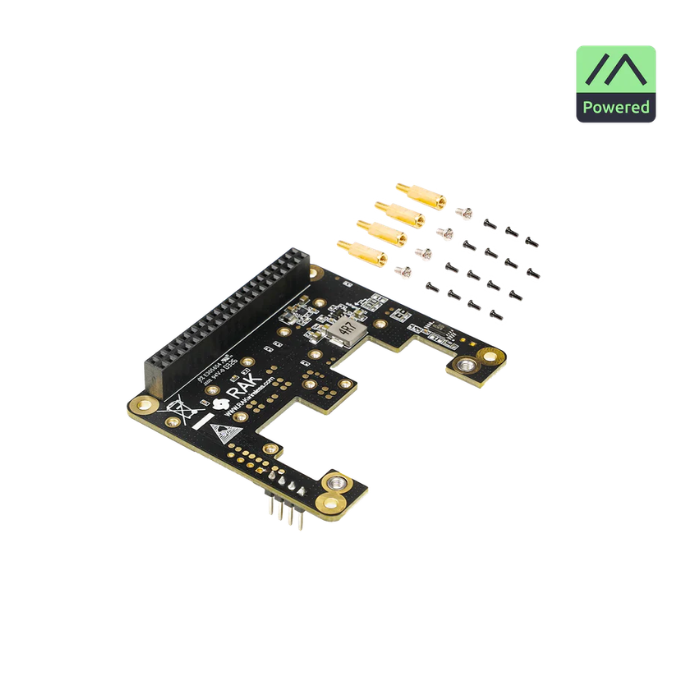

What’s in the Box

WisMesh Pi HAT Only Variant:

• 1 pc WisMesh Pi HAT RAK6421
• 1 set Screw


How to Get Started with WisMesh Pi HAT RAK6421

• Overview of WisMesh Pi HAT RAK6421
• Quickstart Guide for WisMesh Pi HAT
• Datasheet for WisMesh Pi HAT RAK6421
• Firmware Download
