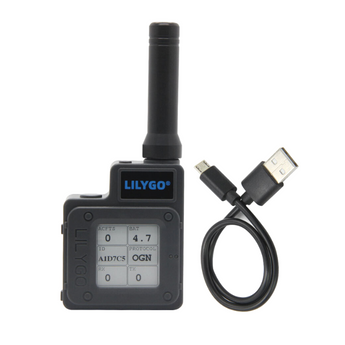

LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 915MHz NRF52840 GPS for Arduino H505

€68,95

4.19

Style: White (SKU H505)

White (SKU H505) White 2-pack (H505) Black (SKU K147) Grey (SKU K148)

Product variants

Quantity

Pickup available at 2251 NW 41st Street

Usually ready in 1 hour

The T-Echo is the latest device to be release by LILYGO® supporting a low power consumption microcontroller. This version does not include the BME280 sensor.

Meshtastic firmware file format:
- firmware-t-echo-1.x.x.uf2
- firmware linked below in support & documentation

Specifications

MCU	NRF52840
FLASH	2MB
RAM	2MB
Bus Interfaces	UART, SPI, TWI, PDM, 12S, QSPI
Wireless Connectivity	Bluetooth 5, Thread, Bluetooth Mesh, ANT, 802.15.4, Zigbee With/Without BME280 temperature pressure sensor
SX1262 LoRa Transceiver	Long Range, Low Power Global frequency coverage 433, 868, 915Mhz
Enclosure material	ABS
Version	Normal version / BME280 version
Battry Capacity	850mAh

1.54-inch SPI E-Paper Display

Grey level	2
Resolution	200x200
Full refresh time	2S

L76K Multi-System Positioning GNSS module

Support System	GPS, GLONASS, BeiDou, QZSS
Support Function	LNA, SAW Filter, AGNSS, 1PPS Improved receiving and anti-interference attributes

Support and Documentation
