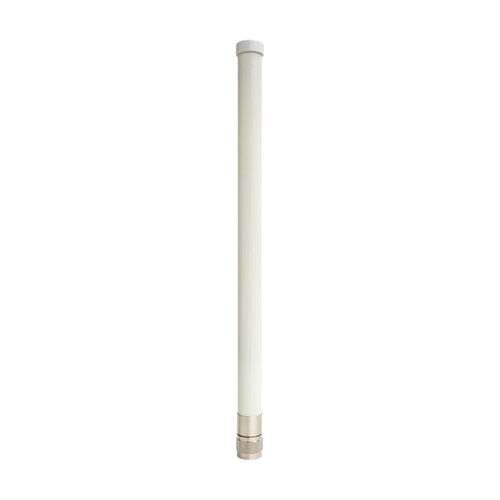

ALFA 7 dBi AOA-2471-75AM Tri Band 2.4/5/6 GHz Outdoor N-Male WiFi Omni Antenna

$29.97

ALFA Network AOA-2471-75AM is a new TAA-compliant tri-band 7 dBi gain omni-directional 2.4/5/6 GHz Wi-Fi antenna with N-male connector. The gain is 7 dBi for 2.4 GHz and 5 dBi for 5/6GHz. This has a weatherproof casing. This does not come with a mounting bracket.

WiFi 6/6E compatible

This is an antenna only, not a standalone Wi-Fi radio and cannot be used by itself to pick up Wi-Fi signals. It must be connected to a compatible Wi-Fi radio or transmitter. To get tri-band capability, you must connect it to a tri-band capable Wi-Fi receiver or transmitter- this cannot transform a single-band radio into a tri-band device.

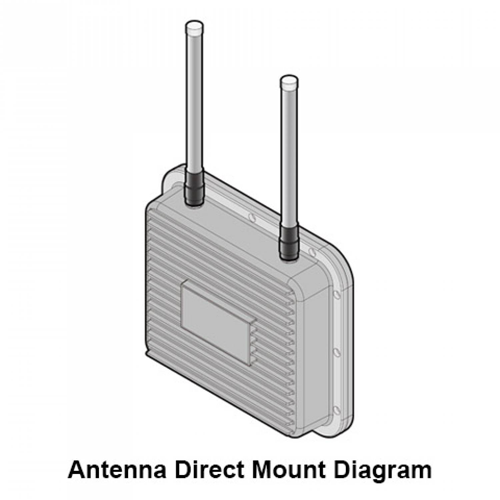

With its N-male connector, this can be connected directly to a variety of outdoor WiFi products that have a compatible connector. Contact our sales team for more information about compatible extension cables and pigtails for use with your particular WiFi receiver or see below for links. This antenna was designed for direct connection to a WiFi receiver or transmitter and does not have a mounting bracket.

We do recommend RokTape to seal all outdoor connection points.

Frequency Range 2400 - 2500 MHz
5150 – 7125 MHz
Gain 7 dBi@ 2400 - 2500 MHz
5 dBi@ 5150 – 7125 MHz
V.S.W.R ≤ 2.0
Radiation Omni Direction
Impedance 50 Ω
Connector N male
Dimensions Ø 22 x 323 mm
Weight 108 g
Temperature ‐ 40 ℃ to 80 ℃
Humidity 95 % @ 25 ℃


VSWR


2D Diagram


Radiation Pattern

image3 image4 image5
