Rokland
MESHTAC™ Gooseneck Tactical Antenna 4 dBi gain SMA Male 915 MHz (or 868 choice) flexible for Meshtastic & LoRa
Pickup available at 2251 NW 41st Street
Usually ready in 1 hour
4 dBi SMA Male 915 MHz flexible gooseneck tactical antenna is an omni-directional SMA Male 915 MHz dipole antenna with 4 dBi peak gain. The antenna is 11.5 inches tall with a diameter of 16mm at its thickest point, and and can be bent as shown in the photo without internal damage.

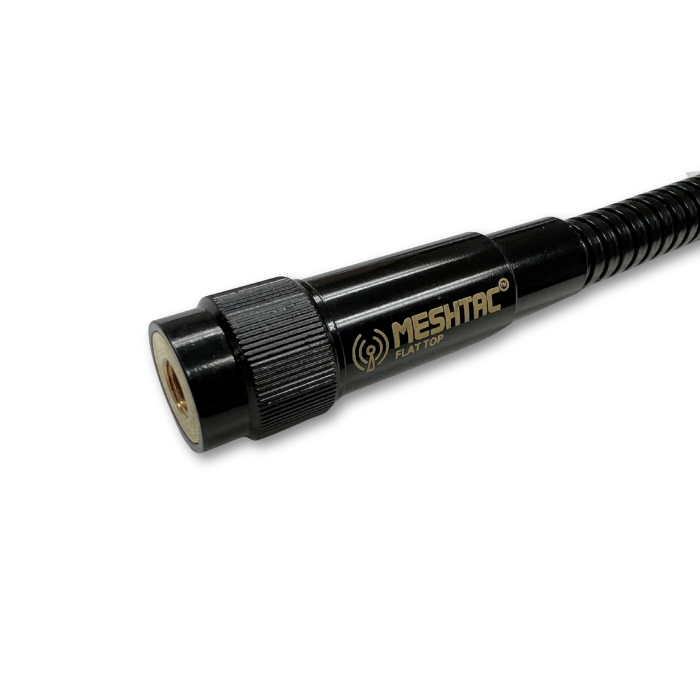

Flat top vs round top design selection: we have 2 versions that have nearly identical performance however there are some internal design differences in addition to the form factor. Round top is spring design vs. Flat top straight wire.
- Gooseneck style design means it will stay in the position it is bent
- Suitable applications are as an IoT hardware and Mesh networking devices
- Heavy duty quarter-pound weight with metal aluminum neck
- 14.2mm diameter around connector (15.8mm for round top version)- requires protruding SMA port- may not fit cases with recessed SMA port
Get the right connection:
SMA Male (this antenna): inside threading, center pin
Inquire about bulk purchases. Because our items come with free US shipping, this has been factored in the single-unit price. Great discounts available for this item on bulk purchases due to combined shipping savings. Click the Request Quote button by the cart button.
I see similar looking antennas online that say for 600 MHz to 2700 MHz, is a wider frequency spectrum better?
Antennas with a focused spectrum will have better performance on that band segment vs antennas with very wide spectrum. We generally do not recommend wide spectrum antennas except as a tool for frequency testing. This antenna has a frequency range of just 902-928 MHz to give you maximum performance.
Specifications :
| Parameter | Value |
|---|---|
| Frequency Range | 902-928 MHz |
| Gain | 4 dBi |
| VSWR | ≤ 2.0 |
| Radiation Pattern | Omni |
| Impedance | 50 Ω |
| Connector | SMA male |
| Dimensions | 12 inches tall |
| Weight | 4.1 ounces |
| Temperature | -40 °C to 85 °C |
| Humidity | 95% @ 25 °C |
Recommended Use
Use as a factory replacement antenna for many popular IoT devices and Mesh network devices that have an SMA female connector on them.
