WisBlock Mini Base Board with Power Slot RAK19009 PID 110085

$12.97

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

Rokland is an authorized distributor for RAKwireless. Please note when comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland, items ship from USA so no additional shipping or tariffs apply. QTY discounts available.

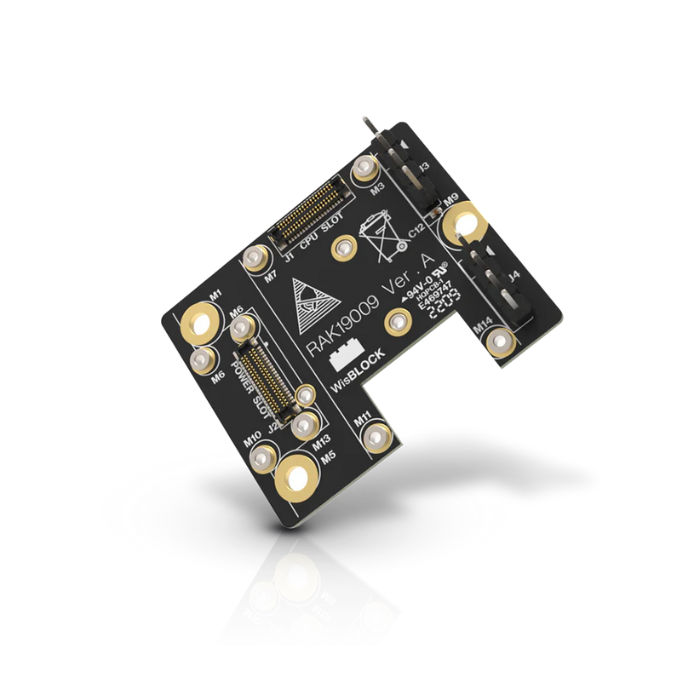

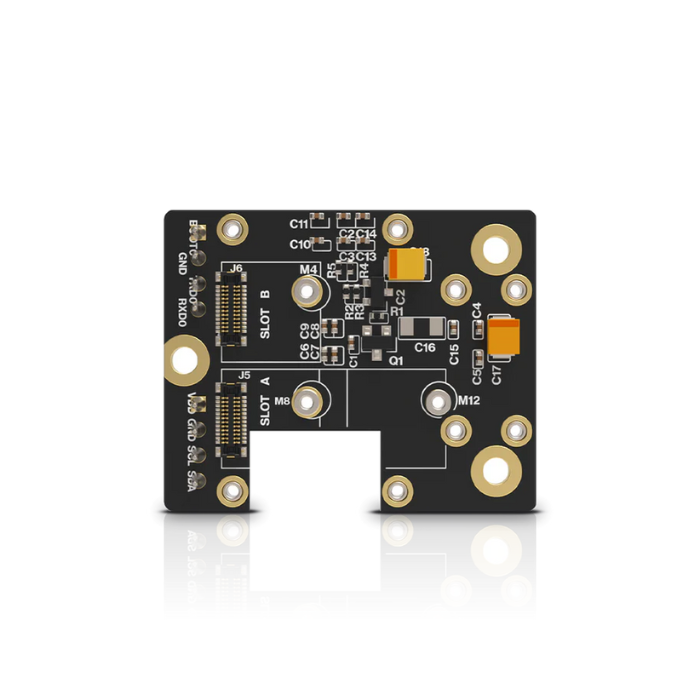

The RAK19009 belongs to the new series of WisBlock Base Boards. Featuring one WisBlock Core slot and two Sensor Slots.

The main feature of the RAK19009 is not only its small size, but that it supports a vast variety of power supplies.

This is achieved by separating the power supply from the Base Board.
The RAK19009 cannot take power on it's own and must be paired with one of the new Power Boards from RAKwireless:

RAK19012 - USB, battery and solar panel supply, just like our other Base Boards.

RAK19013 - Battery and solar panel supply without the USB, for applications where you do not want give users access to the devices firmware.

RAK19014 - Optimized for non-rechargeable batteries with a USB connector

RAK19015 - Optimized for non-rechargeable batteries without the USB connector, for applications where you do not want give users access to the devices firmware.

RAK19016 - The solution for variable supply voltages from 5 to 24 V DC. Ideal for industrial applications

RAK19017 - Power supply over an Ethernet cable, POE

Features

  • Flexible building block design, which enables modular function realization and expansion
  • With high-speed interconnection connectors in the WisBlock Base board to ensure the signal
  • Integrity
  • Supports multiple types of low power MCUs
  • Supports two sensor slots
  • Fulfills Industrial level design
  • Compact size, the minimum size is: 30x37mm

Product Inclusions

  • 1 pc RAK19009
  • 15 pc M1.2*3 Screw
  • 5 pc M2.5*4 Screw
