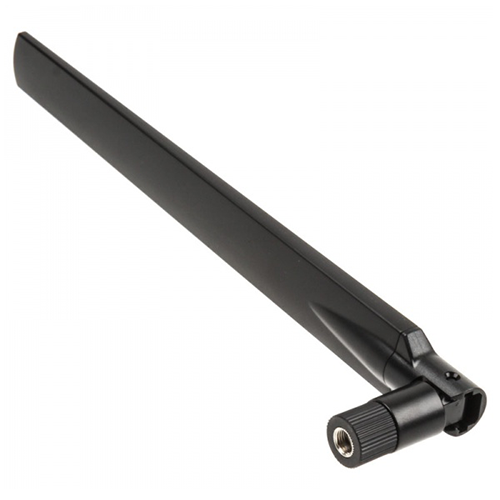

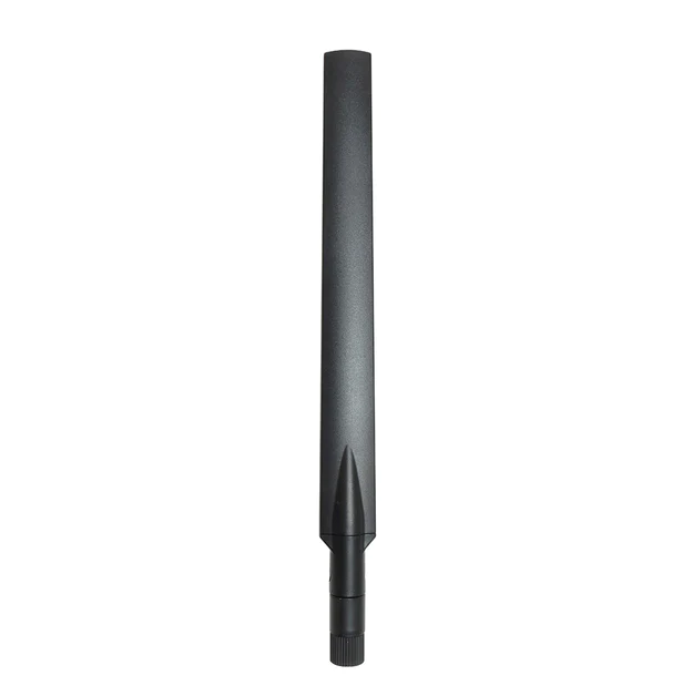

This is a 7 dBi omni-directional paddle antenna. It can receive and transmit on both the 2.4 GHz and 5 GHz Wi-Fi bands. This can be used with any brand Wi-Fi adapter or wireless router that uses RP-SMA antenna ports. It can be used with dual band routers and adapters, or single band. It is compatible with all Wi-Fi standards including 802.11a, b, g, n and the newest standard 802.11ac.
It can also be used with popular drone models which have an RP-SMA port.
Gain: 2.4 - 2.5 GHz :5 dBi
5.1 - 5.9 GHz: 7 dBi
Impedance: 50 Ω
Polarization: Vertical, Linear
Connector: RP-SMA male
Dimension: 18.5 x 231 mm
Temperature: ‐ 10°C to +55°C
Humidity: 95％ @ 25°C
Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
Return Policy: This item can be returned for refund within 30 days of receipt. Because range can vary greatly based on your environment, if you are not sure a particular product will meet your range needs please contact us before buying. Orders with free shipping selected will incur a 10% restocking fee to help us cover the original shipping cost unless the item is defective or different from the advertisement. Any expedited shipping charges paid, including return shipping, are non-refundable. Items must be returned the way they were received, in new or like-new condition, with all pieces, documentation, and retail packaging (if applicable) included. For bulk purchases, see our bulk purchase return policy here.
This 7 dBi dual band omni antenna works great like so many Alfa products I've bought over the years. Using Alfa's powerful ACHM adapter with it, I can connect to 2 hotspot signals on the 5 GHz band, each of which is approximately 1/4 mile from where I'm at, with good stable connection to the Internet. Another high-quality product from Alfa. :)
