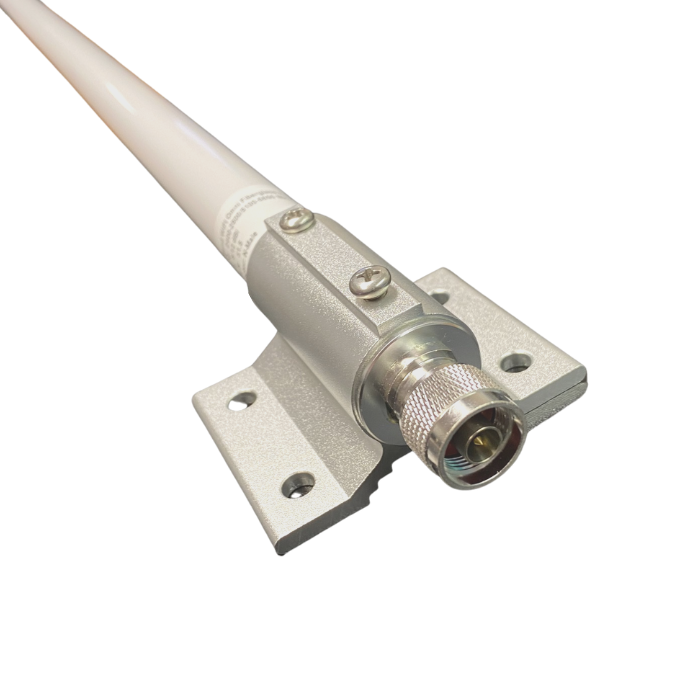

This is a heavy duty high gain outdoor fiberglass antenna for the 2.4 & 5 Ghz WiFi frequencies.
This is NOT for Helium 915 MHz or LoRa IoT products.
This is NOT a WiFi receiver and cannot pick up WiFi networks on its own. It must be paired with a WiFi radio and optionally coaxial cable to extend it from your WiFi radio.
Frequency range（MHz） 2400-2483
This has N-MALE connector, so designed to be use with N-FEMALE coaxial connector or device connector.
This is compatible with the ALFA Tube-UAC2 and the ALFA WiFi Camp Pro 3 Tube. It can also be used with any compatible WiFi or dual band outdoor client or AP including brands like Ubiquiti and Mikrotik.
This is NOT for Helium 915 MHz or LoRa IoT products.
This is NOT a WiFi receiver and cannot pick up WiFi networks on its own. It must be paired with a WiFi radio and optionally coaxial cable to extend it from your WiFi radio.
Frequency range（MHz） 2400-2483
5725-5850 Bandwidth（MHz）
Gain（dBi） 8 dBi for 2.4 GHz
Gain（dBi） 8 dBi for 2.4 GHz
12 dBi for 5 GHz
Half-power beam width（°） H:360 V:11 for 2.4 GHz
H:360 V:8 for 5 GHz
VSWR ≤1.5 for 2.4 GHz
Half-power beam width（°） H:360 V:11 for 2.4 GHz
H:360 V:8 for 5 GHz
VSWR ≤1.5 for 2.4 GHz
≤2.0 for 5 GHz
Input Impedance（Ω） 50
Polarization Vertical, Linear
Maximum input power（W） 100
Lightning protection DC Ground
Input connector type N Female
Dimensions (mm) Φ25*950
Antenna weight（kg） 0.59
Operating temperature（°c） -40～60
Rated Wind Velocity（m/s） 60
Radome color White
Waterproof Standard IP65/ IP67
Mounting way Wall/ Pole-holding Mounting hardware（mm） ￠35-￠5
