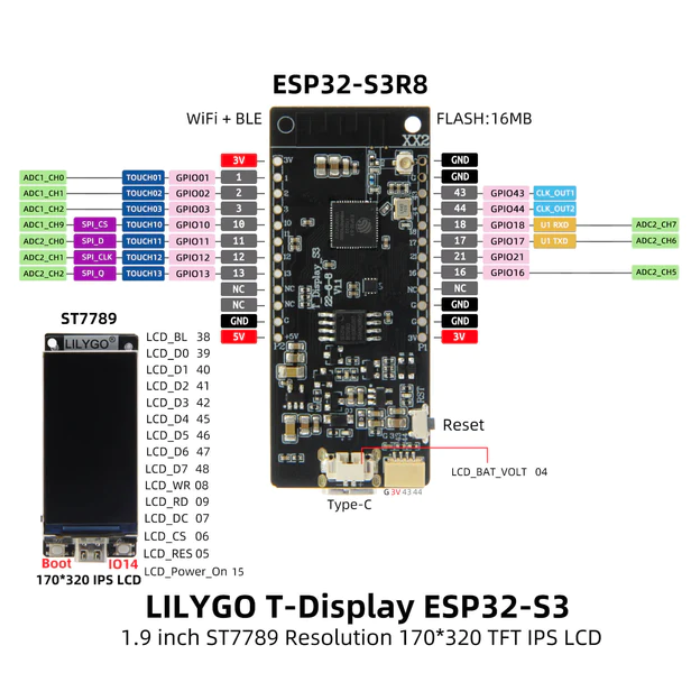

LILYGO® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth 5.0 Wireless Module 170*320 Resolution..

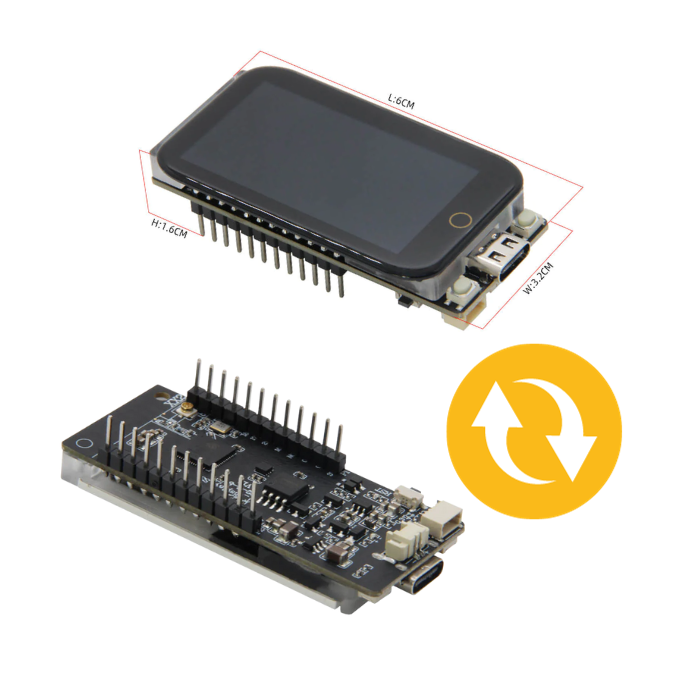

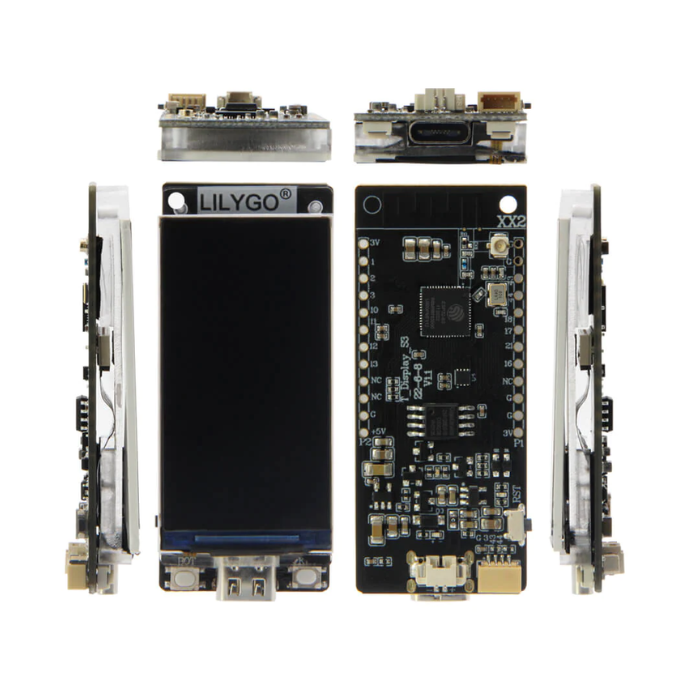

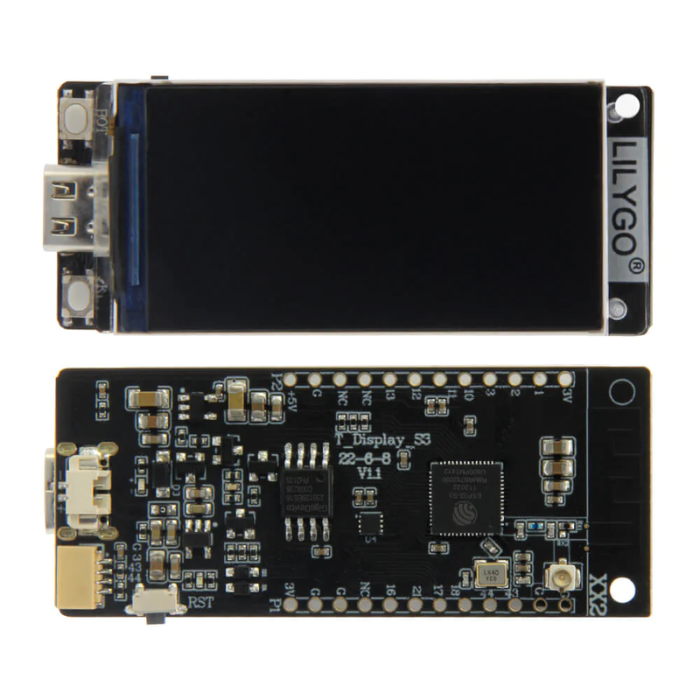

T-Display-S3 Touch is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color touch screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.
- Please use USB2.0 (USB A-USB C) cable.
- Compatible With ST7789
|MCU||ESP32-S3R8 Dual-core LX7 microprocessor|
|Wireless Connectivity||Wi-Fi 802.11, BLE 5 + BT mesh|
|Programming Platform||Arduino-ide、 Micropython|
|Bat voltage detection||IO04|
|Onboard functions||Boot + Reset + IO14 Button|
|LCD||1.9" diagonal, Full-color TFT Display|
|Resolution||170(H)RGB x320(V) 8-Bit Parallel Interface|
|Working power supply||3.3v|
STEMMA QT / Qwiic
JST-SH 1.0mm 4-PIN
|Connector||JST-GH 1.25mm 2PIN|
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
