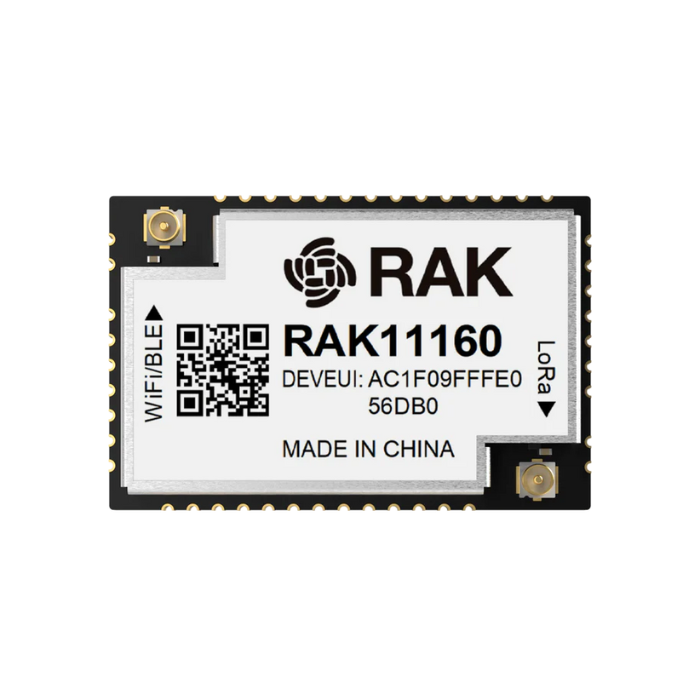

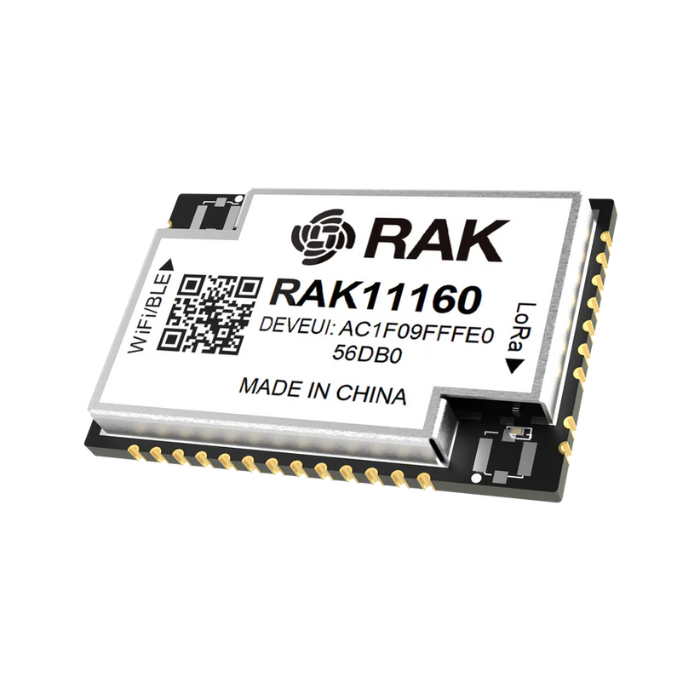

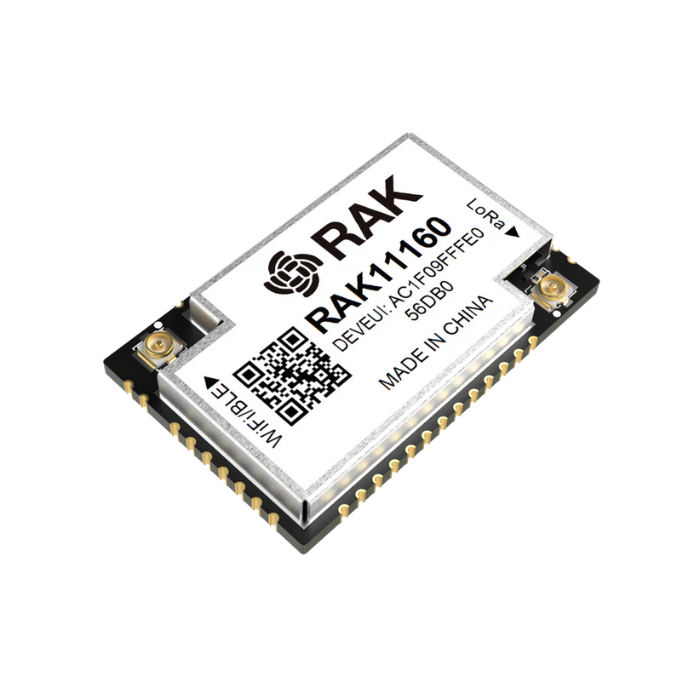

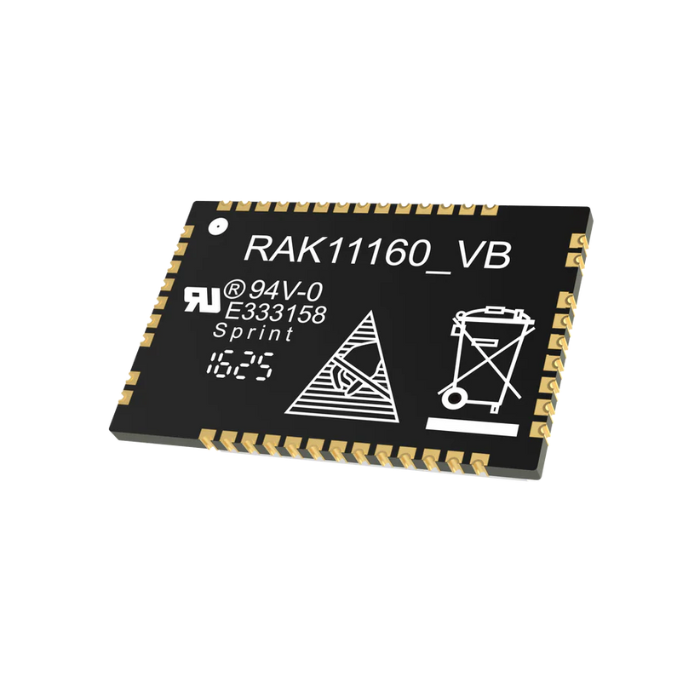

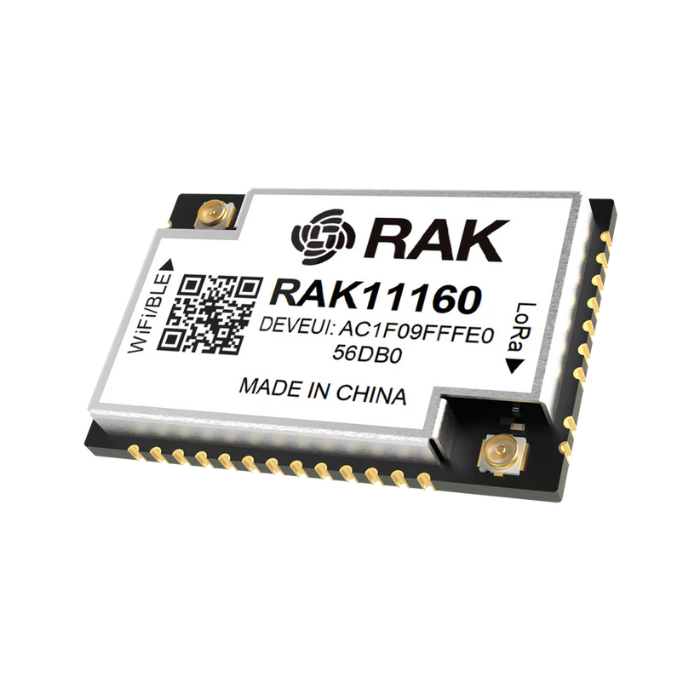

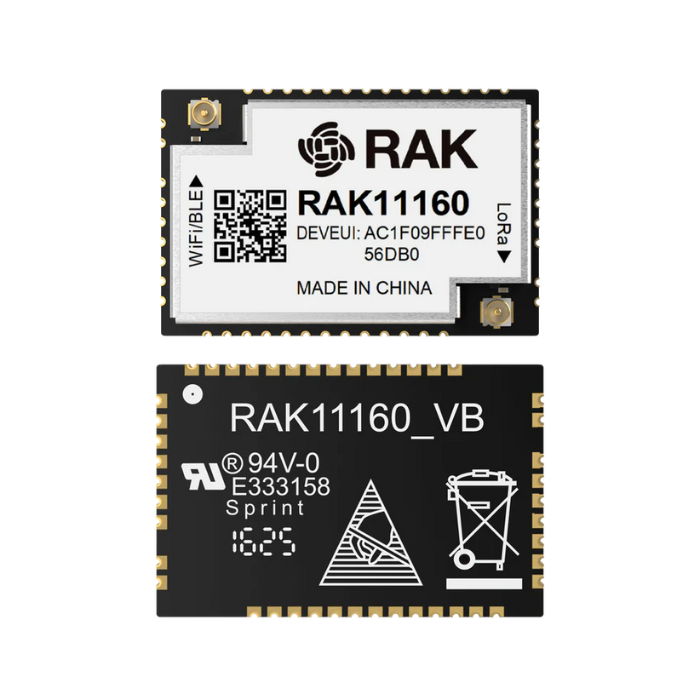

RAK11160 Dual-Core ESP32-C2 + STM32WLE5 Module for LoRaWAN® with WiFi & BLE SKU: 106206

$12.97
Type: With IPEX-MHF4 (RF Pinout is disconnected) 106206

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

Rokland is a Gold Level distributor for RAKwireless. Please note when comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland, items ship from USA, no tariffs apply.

RAK11160 is a dual-core, low-power module for LoRaWAN that combines the STM32WLE5 LoRa controller with an ESP32-C2 chip for WiFi and BLE connectivity. This unique architecture is designed for IoT applications requiring long-range wireless communication and occasional high-bandwidth tasks like MQTT forwarding or OTA updates.

The RAK11160 supports two development modes:

  1. Standalone: Program STM32WL using RAK’s RUI3 SDK for sensor reading and LoRaWAN operation.
  2. Dual-mode: Use STM32WL module for LoRaWAN, and wake ESP32 when WiFi/MQTT/BLE functions are needed. Data flow and logic can be managed with custom firmware.

For better frequency stability over the temperature range, the STM32WLE is using a TCXO for the clock generation.

Why You Need RAK11160 ESP32 + STM32WL Module

Build smarter, longer-lasting IoT devices with the RAK11160. Thanks to its ultra-low power control and dual wireless technologies, it's perfect for applications like battery-powered sensors, remote data logging, and asset tracking where energy efficiency and flexibility are critical.

Why it's useful:

  • Save battery life – ESP32 fully powers down when not needed
  • Connect anywhere easily – LoRaWAN, WiFi, BLE, and P2P all in one module
  • Store data safely – Built-in memory ensures no loss during offline periods
  • Simplify your IoT design – Compact size fits into almost any project

Key Features of RAK11160 ESP32 + STM32WL Module

  • Frequency 900MHz for US915/AU915/KR920/AS923
  • Dual MCU Architecture: STM32WLE5 (LoRa) + ESP32-C2 (WiFi/BLE)
  • STM32WLE5 LoRa transceiver with TCXO for high frequency stability
  • ESP32 LoRa Low Power: Deep power-off mode (~1 µA) when inactive
  • LoRaWAN 1.0.3 Class A/B/C compliant
  • Supports LoRaWAN and LoRa P2P
  • MQTT/HTTP capability via ESP32 with cloud forwarding
  • BLE/WiFi scanning for location services or setup
  • Smart Power Control: STM32 controls ESP32 via EN pin
  • Compact Form Factor: 15 mm x 23 mm x 3 mm, Stamp Pad SMT design
  • Supply voltage: 3.0 ~ 3.6 V
  • Operating temperature: -40 °C to +85 °C
  • Frequency range: 150 MHz to 960 MHz
  • Flash/RAM: STM32WLE5 (256 KB Flash / 64 KB RAM), ESP32-C2 (2 MB Flash)
  • Interface: UART, I2C, SPI, GPIO
  • Development with RUI3 SDK for STM32 and ESP-IDF or Arduino for ESP32
  • Ideal for: Low-power MQTT sensor nodes, location-aware trackers, OTA-enabled smart devices

What’s in the Box

  • 1 pc RAK11160 (900MHz for US915/AU915/KR920/AS923)

How to Get Started with RAK11160 ESP32 + STM32WL Module


US 902-928 Mhz frequency
