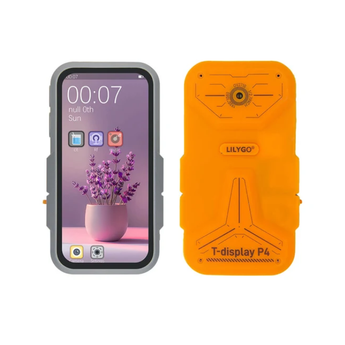

LILYGO® T-Display P4

$144.97

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

LILYGO® T-Display P4 is a high-end ESP32 development device that sits somewhere between a traditional dev board, a handheld terminal, and a small embedded computer.

It is built around the ESP32-P4, a dual-core 360 MHz RISC-V processor intended for heavier graphics, video, camera, and user-interface workloads. Because the ESP32-P4 itself does not provide normal Wi-Fi/Bluetooth connectivity, LILYGO pairs it with an ESP32-C6 coprocessor, which adds 2.4 GHz Wi-Fi 6 and Bluetooth LE.

  • 4.1" AMOLED touchscreen
  • SX1262 LoRa radio
  • L76K GPS
  • ESP32-C6 Wi-Fi 6 + Bluetooth
  • 2 MP OV2710 camera
  • 9-axis ICM20948 IMU
  • Microphone, speaker/audio codec and vibration motor
  • RTC and battery fuel gauge
  • Ethernet support
  • microSD/storage support
  • Optional keyboard expansion; that expansion can add CC1101, nRF24L01 and NFC hardware (keyboard not included, may not yet be available)

The display versions are roughly smartphone-shaped: 63 × 109 × 22 mm. The TFT version is 540×1168, while the AMOLED version is 568×1232.

Why it is interesting

The ESP32-P4 gives it enough processing horsepower for things like sophisticated graphical interfaces, camera processing, maps, dashboards and potentially richer applications. LILYGO specifically highlights hardware support for JPEG, image processing, MIPI camera/display interfaces and H.264 encoding.

MCU1 ESP32-P4,RISC-V Dual-core 360Mhz + Single 40Mhz
Features

Powerfulimage and Voice processing

JPEG Codec,ISP, PPA, H264 Encoder, MIPI CSI, MIPI DSI
Flash 16MB
PSRAM 32MB
Platform ESP-IDF,VS code
GPS Module L76K

MCU2  ESP32-C6
Features 2.4 GHz Wi-Fi6(802.11ax), Bluetooth 5(LE)
Onboard function Capacitive touch screen+TFT/AMOLED optional
l2S Speaker & Microphone & Motor+ RTC+ Ethernet
Expandablel/0 supports external Keyboard Board
LoRa Module SX1262
2MP MIPI Camera 0V2710/ 1080p@30 fps,720p@60 fps
Charge Management LGs4056H
I2C Battery Gauge BQ27220
12C GPl0 Expansion lC XL9535/ 24-pin CMOSIc 16-bit GPIO
9-AxiS MEMS IMU lCM20948/ MotionTracking + DMP
Size 63 x109x22mm
USB Charging 5V, 500mA
