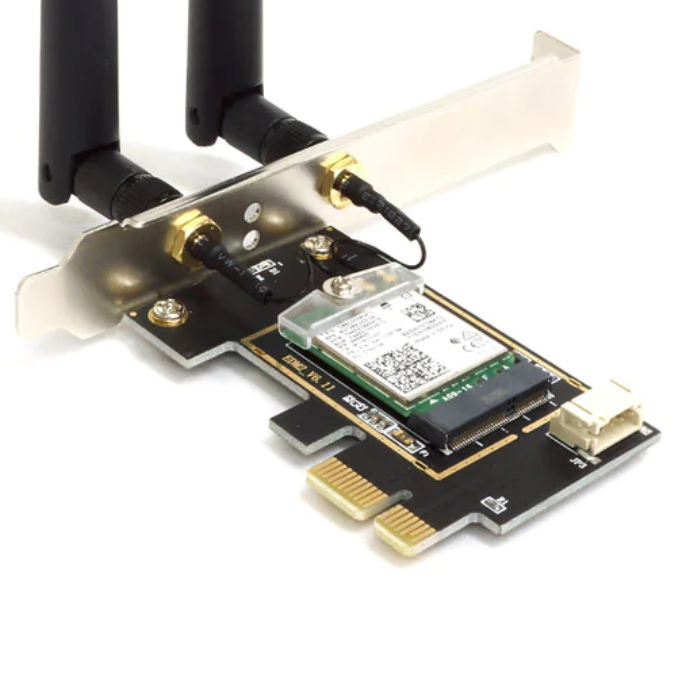

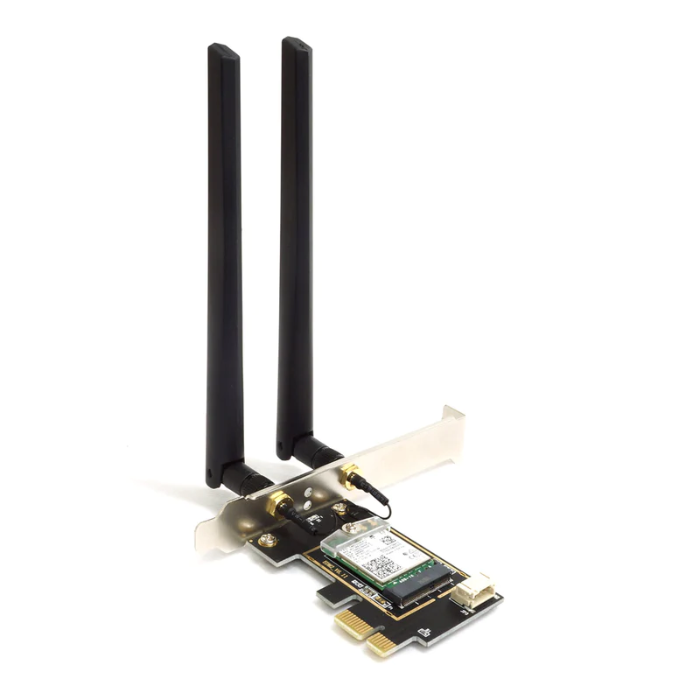

AIT-AX210 is a WiFi 6E PCIe card, based on the Intel AX210 module
AIT-AX210 supports the latest WiFi 6E (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO.
Module includes Bluetooth 5.2, is backward compatible & operates in 2.4, 5 and 6 GHz bands.
Part/Model #: AIT-AX210
Country of Origin: Taiwan
Manufacturer : Alfa Network Inc.
|Intel product code||AX210NGW
Intel WiFi 6E (Gig+)/Typhoon Peak series
|IEEE 802.11 standards||a/b/g/n/ac/ax|
|Special features||OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT|
|Data rate||Up to 2.4 Gbps|
(USB 2.0 cable included)
|Antenna type||2× tri-band dipole (5 dBi gain)|
|Antenna connectors (adapter)||2× RP-SMA (pigtail RF cables included)|
|Antenna connectors (module)||2× IPEX4 (MHF4)|
|Interface||PCIe x1 (WiFi)
USB 2.0 (Bluetooth)
|Operating systems||Microsoft Windows 10 and 11
Linux (kernel 5.10 and above)
|Form factor (adapter)||PCI Express ×1 (compatible with ×4, ×8 and ×16 slot type)|
|Form factor (module)||M.2/NGFF A+E-key 2230|
|Bundle contents||- 1× Intel AX210NGW module
- 1× PCIe ×1 to M.2/NGFF A+E-key 2230 adapter board
- 2× dipole antenna with IPEX4 (MHF4) to RP-SMA female pigtail
- 1× plastic IPEX4 (MHF4) connectors cover
- 1× USB 2.0 cable for Bluetooth
- Assembly accessories (screws, etc.)
