RAK Wireless RAK5146 WisLink LPWAN Concentrator for LoRaWAN (USB/LBT GPS US915)

$129.97

Product Description

Version: USB With LBT- With GPS US 915

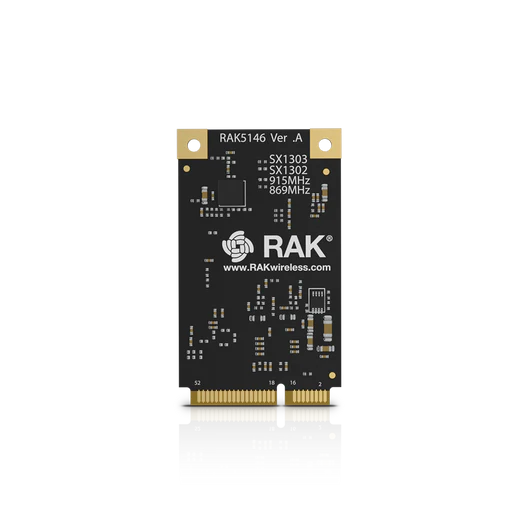

RAK5146 is an LPWAN Concentrator Module with mini-PCIe form factor based on Semtech SX1303 and SX126X for Listen Before Talk feature, which enables easy integration into an existing router or other network equipment with LPWAN Gateway capabilities. It can be used in any embedded platform offering a free mini-PCIe slot with SPI/USB connection. Furthermore, ZOE- M8Q GPS chip is integrated onboard.

This module is an exceptional, complete, and cost-efficient gateway solution offering up to 10 programmable parallel demodulation paths, 8 x 8 channel LoRa packet detectors, 8 x SF5-SF12 LoRa demodulators, and 8 x SF5-SF10 LoRa demodulators. It is capable of detecting an uninterrupted combination of packets at 8 different spreading factors and 10 channels with continuous demodulation of up to 16 packets. This product is best for smart metering fixed networks and Internet-of-Things (IoT) applications.

Product Features

  • Designed based on Mini PCI-e form factor.
  • SX1303 baseband processor emulates 8x8 channel LoRa packet detectors, 8x SF5-SF12 LoRa demodulators, 8x SF5-SF10 LoRa demodulators, one 125 /250 / 500 kHz high speed LoRa demodulator, and one (G)FSK demodulator.
  • 3.3v Mini PCI-e, compatible with 3G/LTE card of Mini PCI-e type.
  • Tx power up to 27dBm, Rx sensitivity down to -139dBm@SF12, BW 125 kHz.
  • Supports global license-free frequency band (EU868, CN470, US915, AS923, AU915,
  • KR920, IN865).
  • Supports optional SPI/USB interfaces.
  • Listen Before Talk
  • Fine Timestamp.
  • Built-in ZOE-M8Q GPS module.

    Package Inclusion

    • 1pc RAK5146
    • 1pc GPS Antenna
    • 1pc LoRa Antenna
