Note this product boosts normal 2.4 Ghz WiFi networks only. The FCC allows the most power boost for 2.4 GHz WiFi. It will not connect to 5 GHz networks. 5 Ghz is a newer frequency and some hotspots such as Xfinity use only 5 Ghz to transmit. Therefore this booster is best for home or business WiFi boosting, or other networks you know are 2.4 GHz.
How does it work?

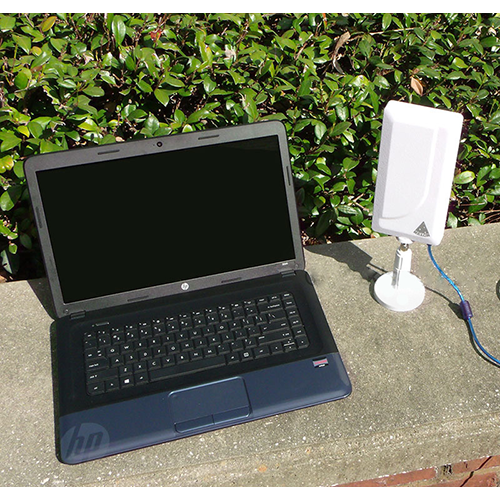

After running the installation software from the included CD, plug the USB cable in to your computer, and aim the receiver in the direction of the network to which you wish to connect. Then scan for networks and pick out the desired network and connect to it. With it's built in 16 foot USB cable. it is easy to put this device near a window or another place further away from your computer for optimal reception
Where does it work?

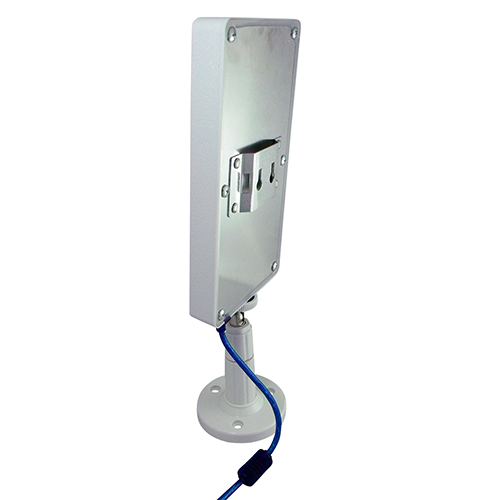

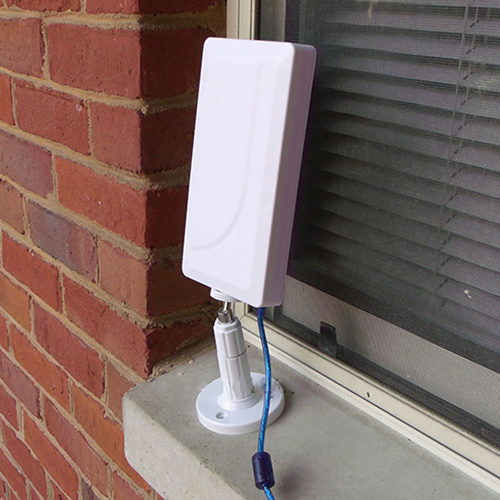

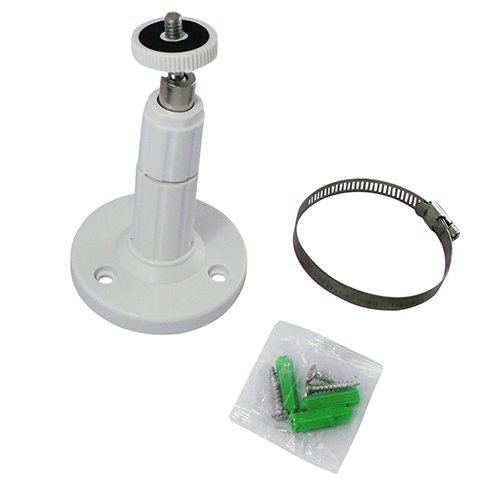

This can be used indoors near a window, or placed outdoors for optimal reception. It includes a detachable stand that also doubles as a wall mount. The back of the case has special water sealant for weather resistance. This requires you be in range of an accessible hotspot- either an open working one such as at an RV park, or one to which you know the password such as your home network. This is not a 3G/4G cellular device that can pick up Internet anywhere.
How far can it pick up?
Results may vary based on environment. Typically this can pick up from about 2-4 times the distance of stock Wi-Fi cards inside today's laptops, making ideal for picking up signals from detached buildings on a property, or access points on the other side of an RV park or campground.
I've seen similar-sized products online advertising 50 or even 80 dBi gain integrated antennas. Why is this 14 dBi?
Gain inflation is rampant online especially from products shipping direct from Hong Kong or China. Because there is no easy way to independently verify antenna gain, some sellers will inflate the gain number to make their product seem superior. At Rokland we advertise the true gain of the antenna. If you see a product with similar dimensions to ours,(4 inches by 8 inches not including stand), the gain is going to be similar. For larger items you may find a 16 or 18 dBi gain antenna, but numbers 24 dBi and above would generally require the antenna to be several feet wide or larger.
Compatibility: This is compatible with Microsoft Windows Vista, Windows 7, Windows 8/8.1, Windows 10, and Mac OS 10.5 through 10.9 using the included CD. It is not compatible with newer versions of Mac OS. For Linux, this is plug and play with some newer versions, but for other distros drivers may need to be downloaded and installed. At this time we are not able to provide support for Linux.
Directional vs. Omni directional antennas: This product has an integrated directional antenna. Directional antennas concentrate gain in a particular direction which improves reception in that direction and also reduces noise (band interference) coming from other directions. Though reception will be better in that direction, the total number of networks will be lesser than when using an omni-directional antenna. Omni-directional antennas work best when you are mobile and do not know where signals are originating. Directional antennas can be rotated to find the optimal placement.
- Enterprise-class 64/128 WEP encryption, WPA, WPA-PSK, WPA2, 802.1X support
- 150 mbps High-Speed Transfer Rate for 802.11n
- High powered adapter- 2000mw max output power
- USB 2.0 and 1.1 compliant (forward compatible with USB 3)
- ONE YEAR manufacturer's warranty
Size and dimensions:
The unit itself without stand measures 4 inches wide and 8 inches tall. With stand it measures 12.5 inches tall. The USB cable is 5m (~16 feet) long. The stand height is 4.5 inches tall..
Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
The 14 dBi indoor-outdoor panel antenna works well for mid-range use. Not suited for long range but is okay for picking up AP's within a few hundred feet.
Impressed. For a target about 300 yards away, went from and iffy 1 bar to a solid 4 bars. Maxes out about 72 mpps, which is likely close to the source speed. Am ordering another right now. Thanks!
Quick delivery, good price & works great!!

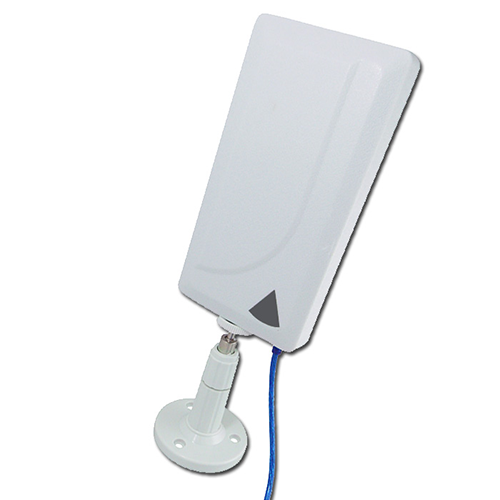

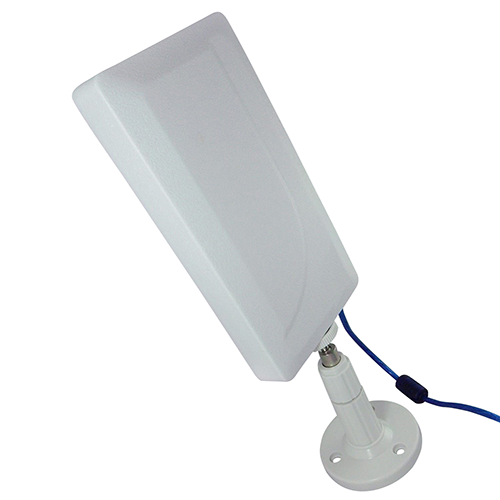

2000mW Indoor/Outdoor Wi-Fi USB Adapter & 14 dBi directional antenna RV/Marine
