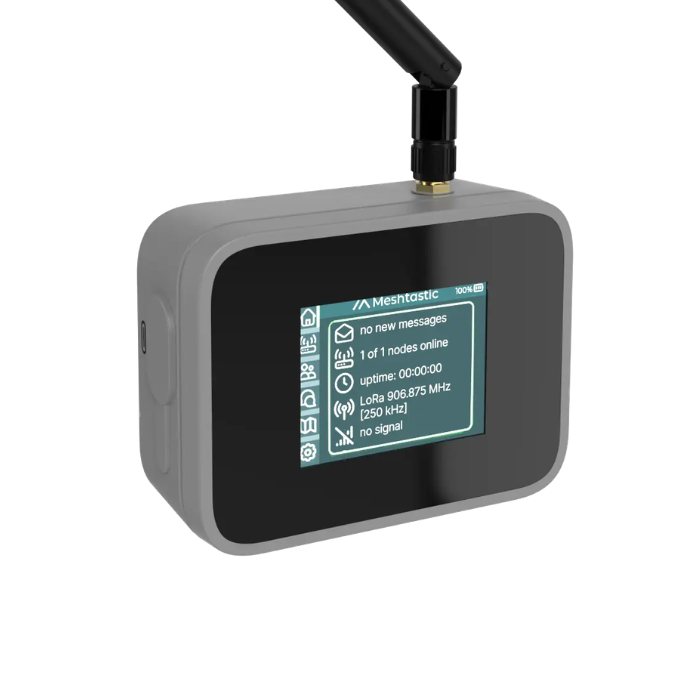

WisMesh TAP v2- touchscreen Meshtastic client with TFT screen, on-screen keyboard, SX1262 LoRa® PID 116209
Pickup available at 3205 SW 40th Blvd Ste A
Usually ready in 1 hour
The RAKwireless WisMesh TAP V2 is an outdoor Meshtastic communicator and a fully standalone SX1262 LoRa mesh communicator that allows users to send and receive messages directly over a mesh network without connecting a phone.
Includes basic USA maps on internal SD card (SD card preinstalled, not easily user accessible)
It is the successor to the WisMesh TAP, using the RAK3312 WisBlock Core module instead of the RAK4631. This makes it a modern ESP32-S3 Meshtastic client developed on the proven WisBlock platform. The WisMesh TAP V2 is a Meshtastic touchscreen device designed for users who want a fully standalone, phone-free, and outdoor-ready communicator.
Compatible with the Meshtastic MUI
Built on the Espressif ESP32-S3 MCU and featuring a Semtech SX1262 transceiver module for LoRa connectivity it supports the latest Meshtastic User Interface (MUI) for a more interactive experience. It includes a TFT touch screen, an on-screen keyboard, and an SD card slot to store and display maps within the MUI. New messages are announced through an integrated buzzer, and users can also send preset (“canned”) messages, which can be configured via BLE using the Meshtastic mobile app. The built-in GNSS location module provide accurate positioning and movement data across the network, making it a reliable Meshtastic device with GPS.

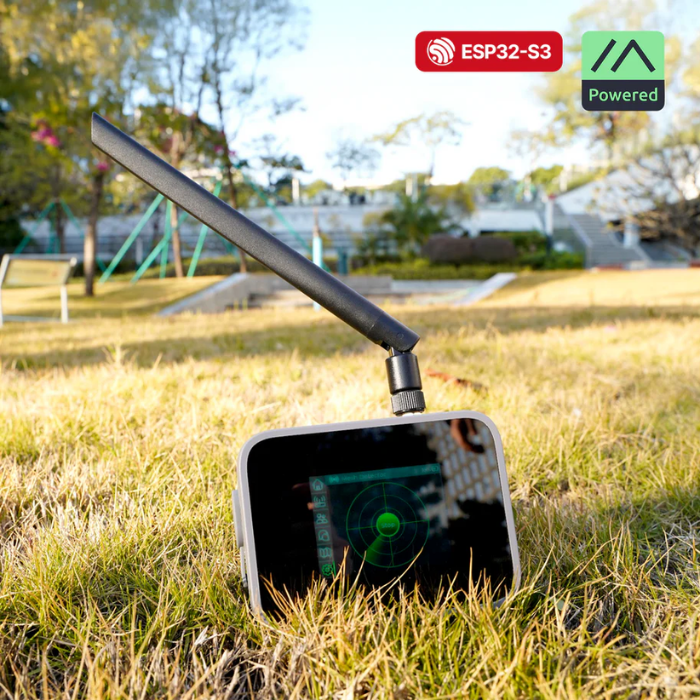

Designed for field and outdoor environments, the Meshtastic TAP V2 carries an IP65 rating and runs on a 3200mAh battery for long operation between charges. Setup is simple and can be configured over BLE with the Meshtastic mobile app or via USB using the Meshtastic WebUI. Ideal for remote communication, off-grid coordination, and IoT field deployments, it offers a reliable, self-contained way to stay connected through LoRa-based networks.
Why You Need a Phone-Free Meshtastic Client?
- Reliable field communication: Enables direct messaging across a mesh network
- Simple, phone-free operation: Send and receive messages independently of a smartphone
- Portable and long-lasting: A 3200mAh battery and IP65 rating
- Quick setup: Easily configured via BLE or USB
- Location awareness: Built-in GNSS sensors share accurate movement data.
Key Features of WisMesh TAP V2
- Supports Meshtastic 8xx and 9xx MHz networks
- Powered by a 3200mAh battery

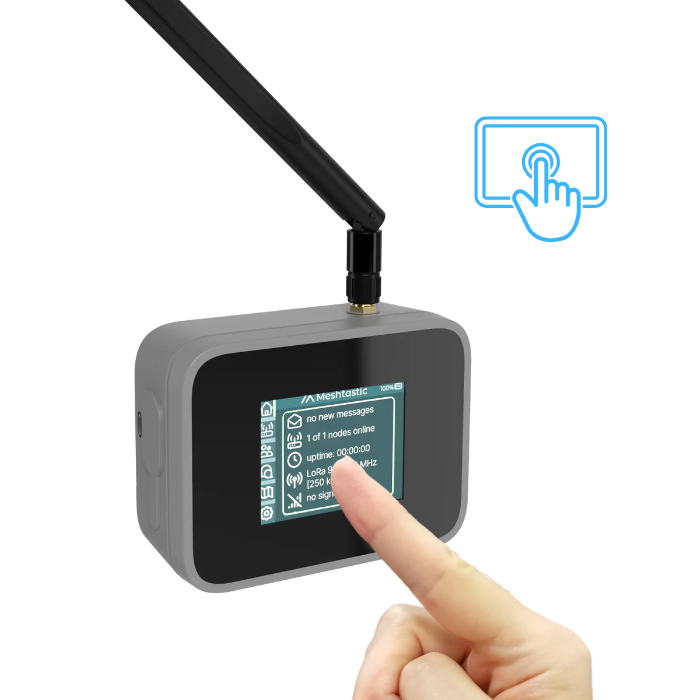

- 320x240 TFT touch screen + MUI Experience
- On-screen keyboard
- RAK3312 Espressif ESP32-S3 MCU with Semtech SX1262 LoRa transceiver
- RAK12501 GNSS location module Quectel L76K
- GNSS Sensor and Offline SD Maps
- Buzzer
- Battery Life and Outdoor Durability

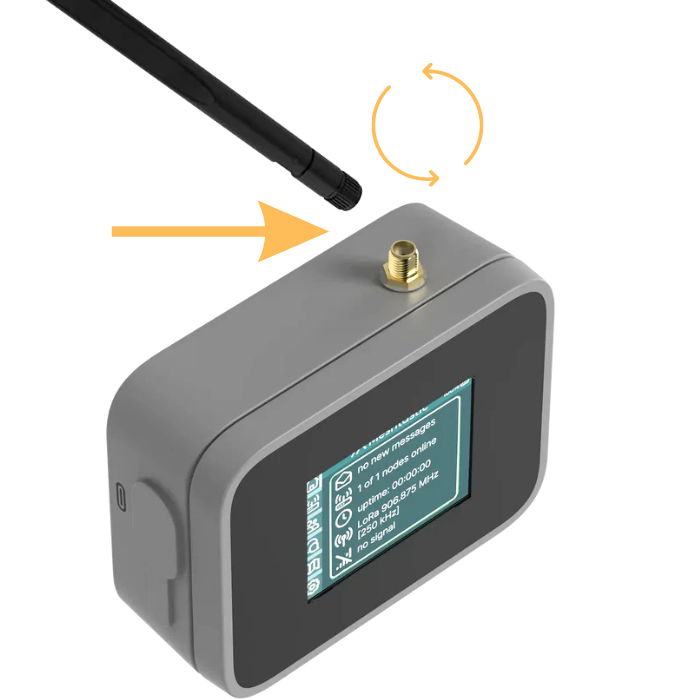

- 2.3dBi external Blade antenna
- Operating and storage temperature range: -20℃ to 60 ℃.
- Charing Temperature: 0℃ to 60℃
Use Case Examples of WisMesh TAP V2
The WisMesh TAP V2 supports a variety of field, emergency, and IoT coordination needs, offering dependable communication and data sharing where traditional networks are unavailable.
Use Case #1: Emergency Response Coordination
During rescue operations in off-grid zones, teams use the WisMesh TAP V2 to send real-time location and status updates through a LoRa-based network, ensuring everyone stays informed and connected.
Use Case #2: Agricultural Field Monitoring
Farm technicians deploy WisMesh TAP V2 units to exchange sensor data and coordinate irrigation tasks across wide farmlands, maintaining continuous communication without cellular infrastructure.
Comparison Table: WisMesh TAP vs WisMesh TAP V2
| Feature |
WisMesh TAP V2 (This Product) |
WisMesh TAP |
| Microcontroller | ESP32-S3 RAK3312 | nRF52840 RAK4631 |
| New Meshtastic UI support | Yes | No |
| Multi-color screen | Yes | Only black/green |
| Support Meshtastic Map function | Yes | No |
| Integrated buzzer | Yes | No |
| SD card support | Not easily accessible | No |
| User button | Yes | Yes |
| Touch screen | Yes | Yes |
| Ruggedness | IP65 | IP65 |
Comparison Table: WisMesh TAP V2 vs Common Meshastic Devices
| Feature | WisMesh TAP V2 (This Product) | LILYGO T-Beam | Heltec Tracker V3 | LILYGO T-Deck | Rnode Portable | Nomad Pi Handheld |
| Display | 320×240 Touchscreen | Tiny OLED | Tiny OLED | Screen + buttons | None | Full LCD |
| Keyboard | On-screen keyboard | No | No | Hardware keyboard | No | Full keyboard |
| GNSS / GPS | Yes (L76K) | Yes | No | No | Optional ext. | Yes |
| SD Card Maps | Preinstalled Basic USA map | No | No | No | No | Yes |
| LoRa Chip | SX1262 | SX1262 | SX1262 | SX1262 | SX1262 | SX1262 |
| Battery | 3200mAh | External 18650 | None | 2000mAh | No | High (internal) |
| Ruggedness | IP65 weatherproof | None | None | None | Metal (not rated) | Not outdoor rated |
| Outdoor Use | Designed for field work | Medium | Low | Low | Medium | Low |
| Ease of Use | Very high (touch UI) | Medium | Medium | Medium | Low | Medium |
| Price Tier | Mid | Low | Low | Mid | Mid | High |
Compared to hobby boards like T-Beam or Heltec, TAP V2 is purpose-built for field communication with a rugged enclosure, full MUI touchscreen, and offline maps.

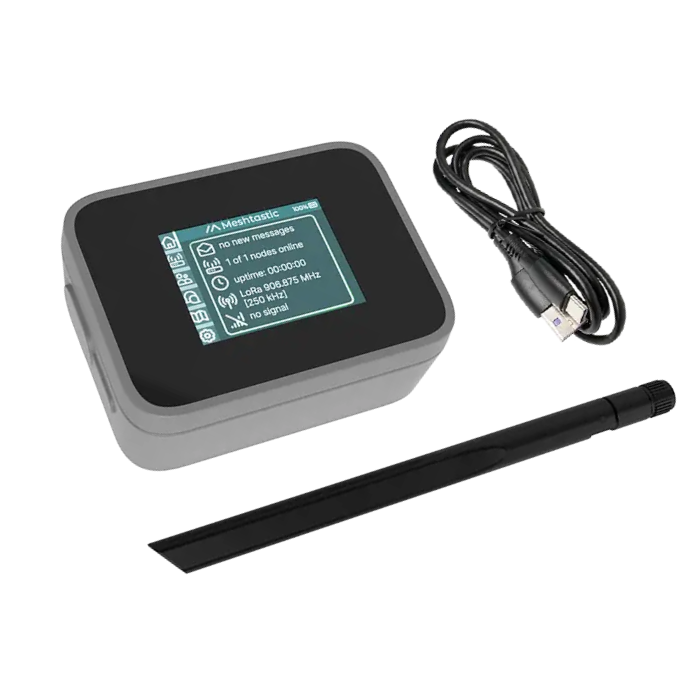

What’s in the Box
- 1 x WisMesh TAP V2 Device
- 1 x LoRa Antenna
- 1 x USB Cable
How to Get Started with WisMesh TAP V2?
