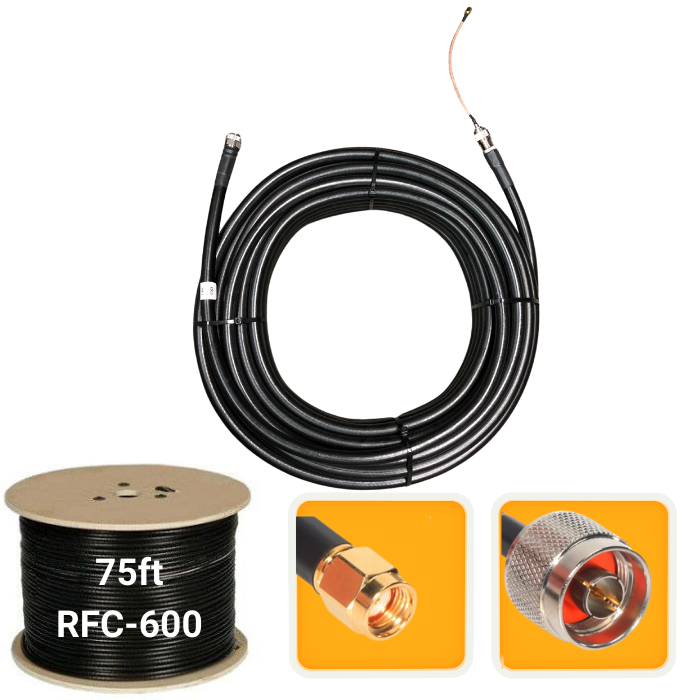

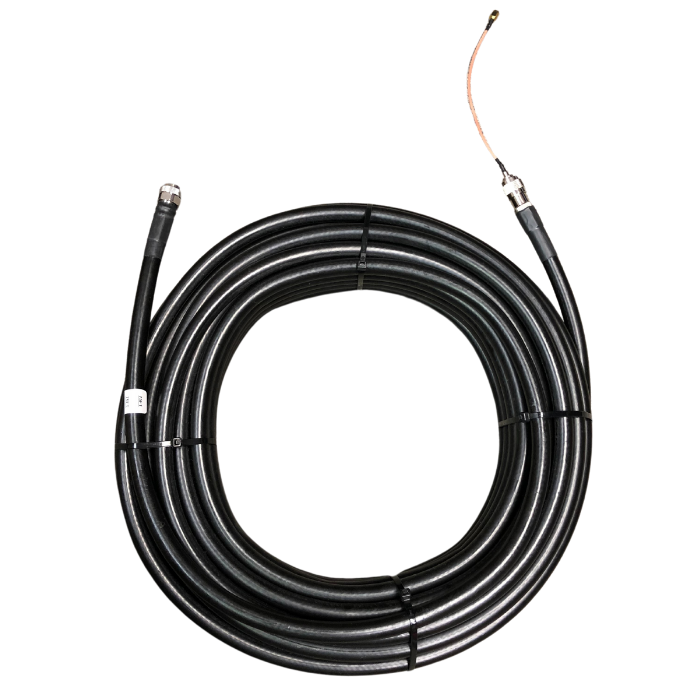

75 ft. Antenna extension coaxial cable RP-SMA male (via pigtail) to N-male PFP-600 low loss

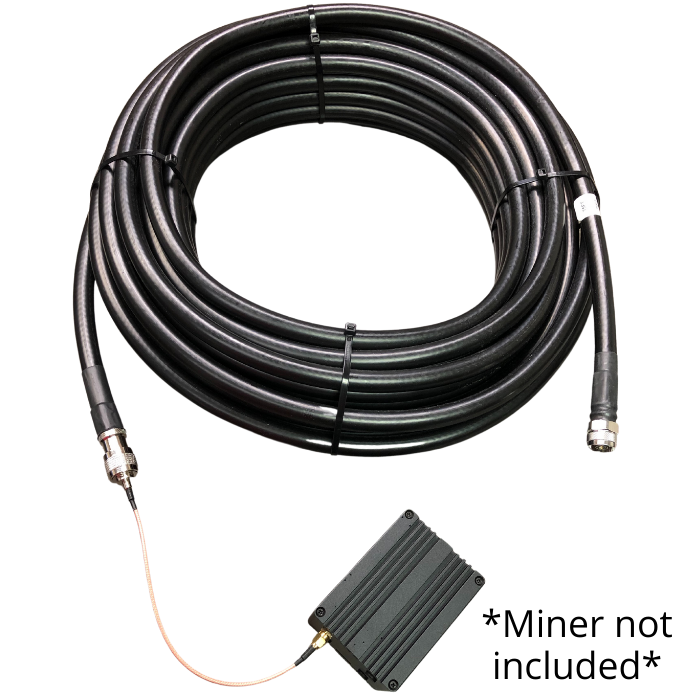

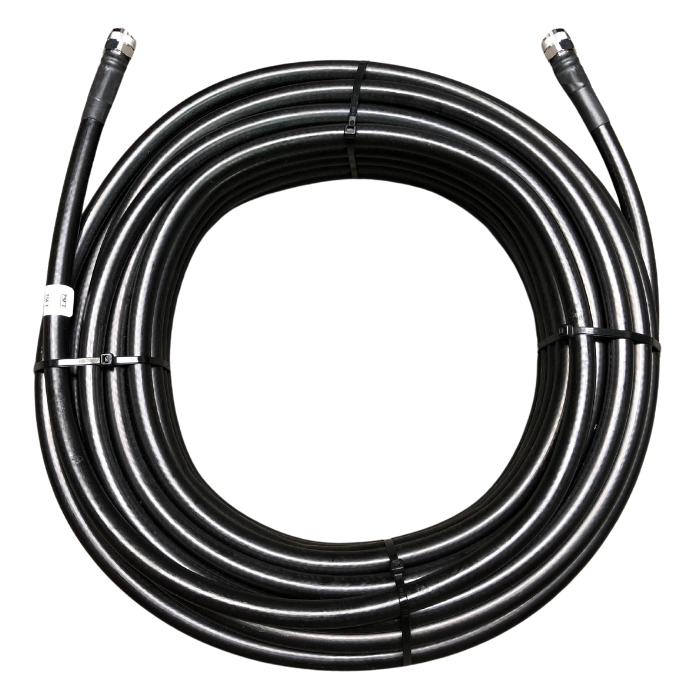

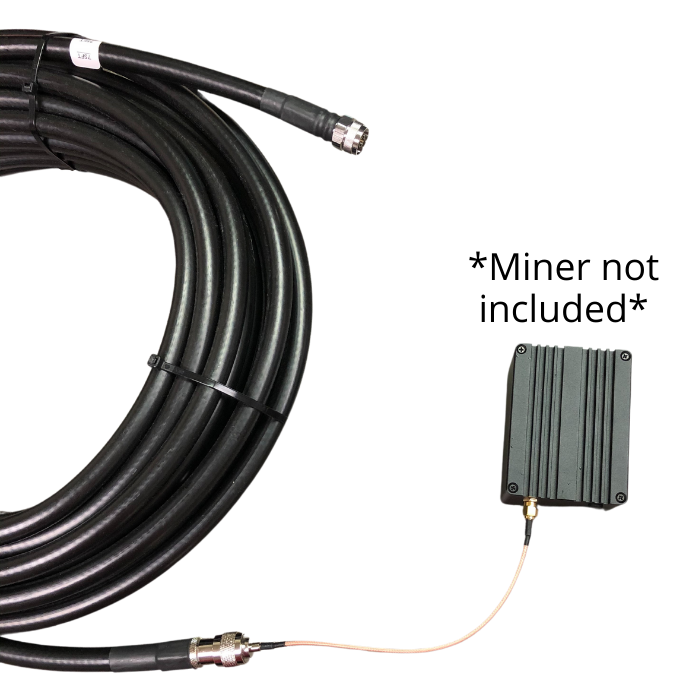

We have this special low loss PFP-600 coaxial extension cable, The connectors on the cable are both N-male, because PFP-600 is too thick to have an RP-SMA connector crimped to it. So we have paired with the included pigtail adapter to give you an RP-SMA male to N-male cable. This is perfect for connecting to any of our N Female antennas to your Bobcat, RAK, Nebra Indoor or SyncroB.it miners. This cable is 75 feet in length and comes with special 600 grade shielding to keep your dB loss as low as possible for your Helium mining setup.
PFP is an alternative to LMR with nearly identical specs for low gain loss. LMR is a registered trademark of Times Microwave. This cable compares to LMR-600, which is Times Microwave's 600 grade shielding.
We recommend this extension cable compared to some others online because this has a special 600 grade low-loss cable. What does this mean? The antenna to which you will connect this has a gain. Let's say for example you will be connecting this to a 9 dBi gain antenna. As the cable in between the antenna and adapter gets longer, you will experience cable loss, which is a drop in the signal gain of the antenna. With low-quality extension cables, the huge drop in gain will mean a much lesser range. Our special low-loss cable limits the cable loss factor. 600 is recommended for a cable that is 75 ft. long.
Made in USA. This cable is American made and manufactured for superior performance and quality control.
We do recommend RokTape to seal all outdoor connection points.
Compare gain loss (of cable only, not including pigtail adapter):
915 MHz application: -1.8 dB (Helium mining/LoRa device)
WiFi 2.4 GHz application: -3.2 dB (standard home WiFi networking)
WiFi 5 GHz application: -4.9 dB (dual-band 2.4/5 GHz WiFi to 5 GHz networks)
Compare this to a cheaper RG-58 shielded cable of the same length- the gain-loss would be -10.3 dB for 915 MHz, -19.3 dB for 2.4 GHz WiFi, and a whopping -32.3 dB for 5 GHz WiFi
That means standard RG-58 cables have about 2x times as much gain loss as this cable!
Additional Features:
- Length: 75 feet
- Impedance: 50 OHM
- Frequency: all bands from 0-6 GHz, including 868-915 MHz LoRa, 2400-2700 MHz WiFi/ 5100-5900 MHz WiFi
- Compatible with 802.11ac, 802.11n, 802.11g and 802.11b WiFi standards, as well as LoRa 915 MHz
- Compatible with many WiFi adapters & Helium miners with RP-SMA ports
