8.5 dBi N-Male Omni Outdoor Helium 915 MHz Antenna (Large Profile 40") for RAK Miner 2 Nebra SenseCap M1 & Bobcat Hotspots
New for 2022, Rokland introduces our large profile tuned 8.5 dBi 915 MHz 40" fiberglass antenna with N-male connector and U-bolt bracket mount. This is certified and designed for outdoor environments and is weatherproof. See photos for mounting instructions.
Important note: this is different from our low profile 8 dBi antenna, and this 8.5 dBi antenna has an N-MALE antenna connector, meaning your cable must be N-FEMALE. Therefore if you have our low profile version and switch to this, you will need a different cable or a barrel converter.
This antenna is compatible with the RAK V2, Bobcat 300, Nebra Indoor, SenseCAP M1, Kerlink, Linxdot, SyncroB.it, Helium Hotspot, Kerlink, FreedomFi & LongAP, but requires an RP-SMA male to N-female coaxial cable to fit, and we carry compatible coaxial cables. This antenna also works with other Helium hotspots (such as the Nebra Outdoor) but may need different cable connectors, please contact our sales staff if needed.
- 8.5 dBi gain 915 MHz band antenna for LoRa and HaLow™ long-distance low data transfer industrial application (this is NOT a 2.4 or 5 GHz WiFi antenna).
- 360-degree horizontal beamwidth, 14-degree vertical beamwidth, N-male connector. VSWR ≤ 1.5, 50-ohm impedance, max input power 50 W, made of Fiberglass, Copper, and Aluminum Alloy
- Large profile 40 inches height (1030 mm)- Learn more about antenna size and gain correlation

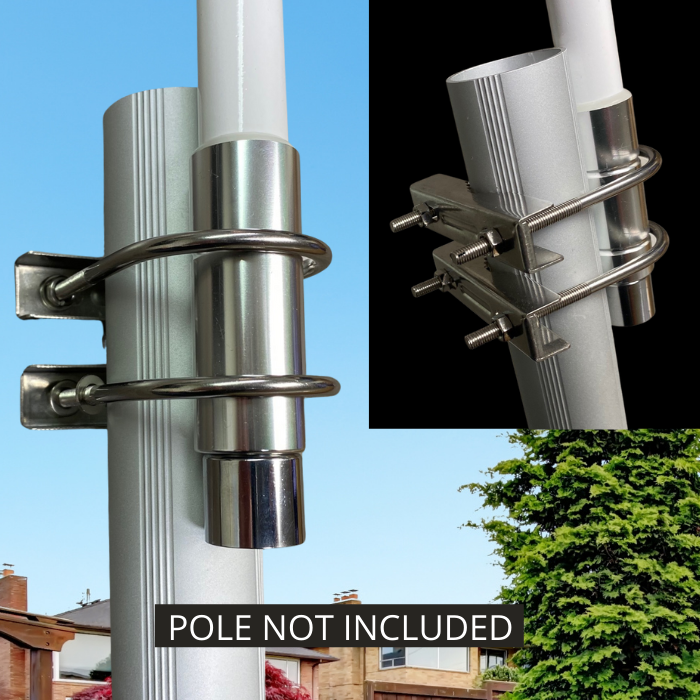

- Includes antenna plus 2 U-bolts (capable of fitting up to 1.5-inch diameter pole) and mounting bracket as pictured. Does NOT include a pole to mount to as shown in the picture. Pole shown in images with antenna mounted to it is just for demonstration purposes
- This is NOT a WiFi antenna or 4G cellular antenna, it is ONLY for 915 MHz sub 1 GHz HaLow or LoRa application, or other applications in this band.
Questions about miners, antennas and cables? Visit this page to learn more.
We do recommend RokTape to seal all outdoor connection points.
Specifications:
900-930 MHz frequency
360-degree horizontal beamwidth
14-degree vertical beamwidth
N-male connector
VSWR: ≤ 1.5
~8.5 dBi gain
50-ohm impedance
Max input power: 50 W
Wind Rating: 60 m/sec
Operating Temperature: -58F to 176F
Height: 40 inches (learn more about antenna height and gain correlation)
Made of Fiberglass, Copper, and Aluminum Alloy
Optional Compatible Accessory:
Official RAK Wireless Heavy Duty N-female 3.5" diameter antenna magnet base + 2m CFD-200 cable
What is HaLow™?
Wi-Fi HaLow™ is "the designation for products incorporating IEEE 802.11ah technology, augments Wi-Fi by operating in spectrum below one gigahertz (GHz) to offer longer range and lower power connectivity. Wi-Fi HaLow meets the unique requirements for the Internet of Things (IoT) to enable a variety of use cases in industrial, agricultural, smart building, and smart city environments.
Wi-Fi HaLow enables the low power connectivity necessary for applications including sensor networks and wearables. Its range is longer than many other IoT technology options and it provides a more robust connection in challenging environments where the ability to penetrate walls or other barriers is an important consideration."
Compatible with:
RAK V2
Bobcat 300
Nebra Indoor/Outdoor
SenseCAP M1
SyncroB.it
Helium Hotspot
Kerlink
LongAP
FreedomFi
Heltec
ClodPi
Finestra
Linxdot
Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
Online Technical Manuals and Instructions (Click Here)
