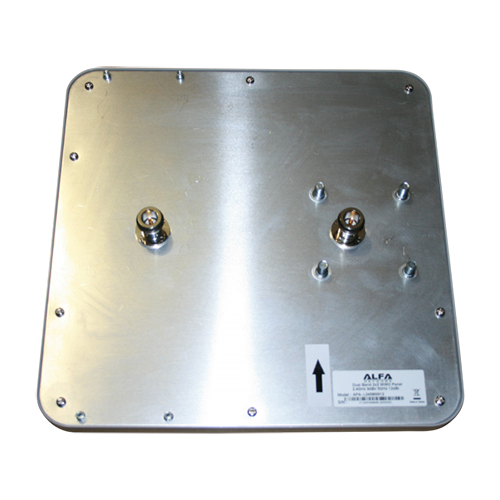

ALFA APA-L2458M912 12 dBi gain outdoor 2.4/5 GHz dual band WiFi directional panel antenna

$44.97

APA-L2458M912 is a 12dBi 2.4/5 GHz dual band directional outdoor panel antenna with 2x N-female connectors. It is a great way to boost your WiFi signal over a long distance when using with a compatible dual band wireless receiver like ALFA AWUS036ACH.

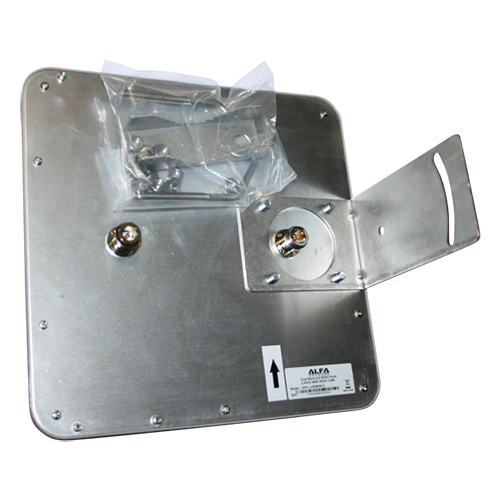

It includes the antenna and mounting bracket, brand new in box from ALFA Network. A directional antenna concentrates its gain all in the direction it is aimed. It will do a better job piercing obstacles and interference in that direction, but will not pick up as many signals in total as an omni-directional antenna.

We do recommend RokTape to seal all outdoor connection points.

    Features:
        Superior performance
        Light weight
        All weather operation
        Includes tilt and swivel mast mount

    Application:
        2.4 or 5 Ghz 802.11n or 802.11ac WiFi radio band
        IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac Wireless LAN
        Directional and multipoint applications
        Public Wireless Hotspot
        WiFi, RFID
        Wireless Video Systems

    Specifications:
        Model : APA - L2458M912
        Frequency : 2.4/5 GHz
        VSWP : <= 1.8
        Gain : 12 dBi for 5 GHz, 9 dBi for 2.4 GHz
        Polarization : Vertical or Horizontal
        Power Handling : 50 Watts
        Beamwidth : H: 45º / V: 45º
        Connector : Dual N-Female
        Operating Temperature : -40ºC ~ +80ºC
        Size : 20.5 cm x 20.5 cm x 2 cm



Model APA-L2458M912
Frequency 2400-2483MHz
5150-5850MHz
Gain 9dBi @24GHz
12dBi @5GHz
V.S.W.R 1.8
Vertical Beamwidth 45°
Horizontal Beamwidth 45°
Radiation Directional
Polarization Vertical/Horizontal
Connector 2x N Female
Dimension 230 x 230mm
Mount Style Pole
Material UV Plastic
Mount Material Stainless Steel
Wind Survival 60m/s



If you plan to use this with one of our popular indoor ALFA Wi-Fi receivers like the ALFA AWUS036ACH, we recommend also purchasing two of our RP-SMA to N-male coaxial extension cables.

Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)

State sales tax of 7% will be added to FLORIDA purchases only. There is no sales tax for any other state.

Return Policy: This item can be returned for refund within 30 days of receipt. Because range can vary greatly based on your environment, if you are not sure a particular product will meet your range needs please contact us before buying. Orders with free shipping selected will incur a 10% restocking fee to help us cover the original shipping cost unless the item is defective or different from the advertisement. Any expedited shipping charges paid, including return shipping, are non-refundable. Items must be returned the way they were received, in new or like-new condition, with all pieces, documentation, and retail packaging (if applicable) included. For bulk purchases, see our bulk purchase return policy here.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sherrill Hart
Excellent Antenna

As soon as I received this Alfa 12 dBi dual band antenna, I tested it. I connected it to an Alfa ACHM dual band adapter, and WOW! It picked up many AP's in the area and at decent strength. It picked up Lowe's Guest Wifi signal (1/3 of a mile from me) on the 5 GHz band and I got good Internet and decent download speed. I'm using an old Dell Latitude D820 laptop (2006 model) which has an internal a/b/g wifi chip, which means it's dual band; (the "a" type signal runs on 5 GHz while the "b" and "g" run on 2.4 GHz). Dual band "ac" external wifi adapters and antennas can be used in old computers whose internal wifi chips have the "a" type along with the others, such as a/b/g; a/b/g/n; a/g/n. They will not work in computers whose internal wifi chips are b/g or g/n or b/g/n only, since the motherboards in those computers are compatible with 2.4 GHz only.
