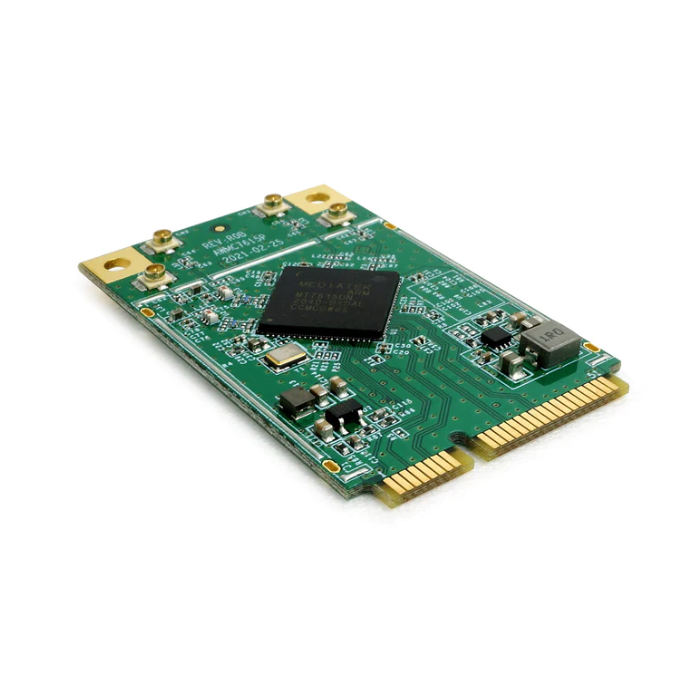

ALFA AWMC7615P dual-concurrent (DBDC) mini PCIe WiFi5 Wave2 (802.11ac) card


** AWMC7615P is a dual-band, dualconcurrent (DBDC) WiFi5 module **

AWMC7615P is fully compliant with IEEE 802.11ac and IEEE 802.11a/b/g/n standards, supports simultaneous operation in 2.4 GHz and 5 GHz bands (DBDC) with dual 2T2R antenna configuration.

The ARM™ based MediaTek™ MT7615D radio chipset offers full host CPU offload, allowing use of the card even in resource limited embedded systems. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption.

Official support in open source driver for Linux will help kick off your next WiFi project.

Because this part must be installed inside a device, this is not considered an end-user device and does not ship with installation instructions for different devices. We recommend this part for corporate or IT department deployment where certified technicians may complete the install.


Chipset MediaTek™ MT7615D
IEEE 802.11 standards a/b/g/n/ac
Frequency 2.4 GHz
5 GHz
Data rate 802.11ac: 867 Mbps
802.11n: 300 Mbps
TX power 2.4 GHz: 20 dBm (per chain)
5 GHz: 20 dBm (per chain)
Antenna connectors 4× IPEX/U.FL
Interface PCIe x1
Operating systems Linux
Form factor full-size mini PCIe
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature -10 ° ~ 70 ° C
Dimensions 30 × 51 × 3.9 mm (without metal shielding)
