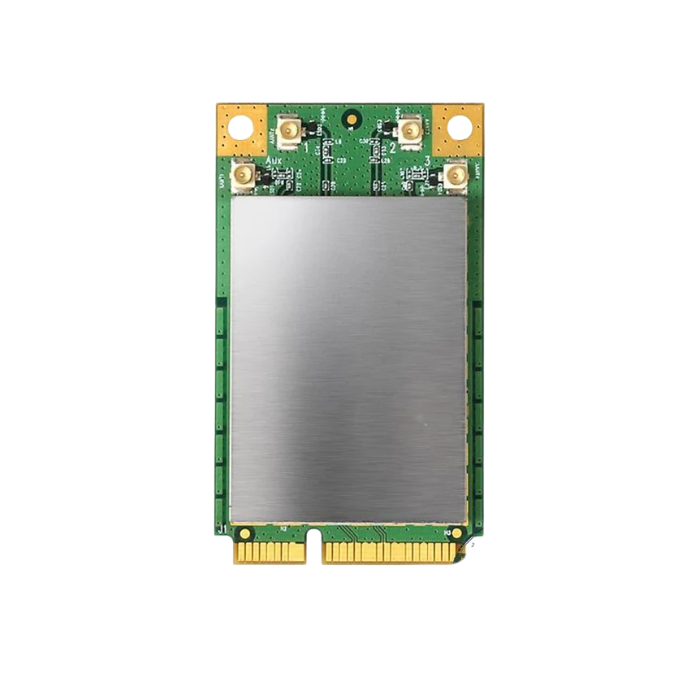

ALFA AWPCIE7921U WiFi 6E 2x2 dual-band WLAN and Bluetooth v5.2 mini PCIe module

$29.97

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

The AWPCIE7921U is a WiFi 6E 2x2 dual-band WLAN and Bluetooth v5.2 mini PCIe module.

  • IEEE 802.11 a/b/g/n/ac/ax compliant
  • Support 20 MHz, 40 MHz, 80 MHz bandwidth in 2.4 GHz, 5 GHz, 6GHz band
  • Support Bluetooth 5.2
  • Dual-band 2T2R mode
  • Support STBC, LDPC, TX Beamforming, and RX Beamforming
  • Bluetooth v5.2 with BLE (BT low energy)
  • Support BT/BLE dual mode
  • Support BT/Wi-Fi coexistence

Keypoint

  1. MediaTek MT7921AUN chipset
  2. 2x Wi-Fi IPEX connector
  3. 2x BT IPEX connector
  4. Mini PCIe interface (USB 2.0)


Specifications

Chipset

MediaTek MT7921AUN

IEEE 802.11

a/b/g/n/ac/ax

Frequency

2.4 GHz

5 GHz

6 GHz

Bluetooth

v5.2

Data rate

11b: 1, 2, 5.5, 11 Mbps

11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

11n: up to 300 Mbps

11ac: up to 866.7 Mbps

11ax: up to 573.5 Mbps

11ax: up to 1201 Mbps

Form factor

Full size mini PCIe (USB bus)

Antenna connector

2x IPEX (Wi-Fi)

2x IPEX (BT)

Dimensions

30 x 51 x 7 mm

Operating temperature

-25°C - 75°C

Operating systems

Microsoft Windows 10/11

Linux


RF Specifications

2.4 GHz 802.11b (±2 dB)

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

1

17

-90

5.5

17

-88

2

17

-87

11

17

-86


2.4 GHz 802.11g (±2 dB)

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

6

16.5

-90

24

15.5

-82

9

16.5

-88

36

15.5

-78

12

16.5

-87

48

15.5

-74

18

16.5

-85

54

15.5

-72


2.4 GHz BW 20/40 802.11n/ac (±2 dB)

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

VHT/HT20-MCS0

15

-89

HT40-MCS0

15

-86

VHT/HT20-MCS1

14

-86

HT40-MCS1

14

-83

VHT/HT20-MCS2

14

-84

HT40-MCS2

14

-81

VHT/HT20-MCS3

14

-81

HT40-MCS3

14

-78

VHT/HT20-MCS4

14

-77

HT40-MCS4

14

-74

VHT/HT20-MCS5

14

-73

HT40-MCS5

14

-70

VHT/HT20-MCS6

14

-72

HT40-MCS6

14

-69

VHT/HT20-MCS7

14

-71

HT40-MCS7

13.5

-68

VHT20-MCS8











VHT20-MCS9

14

-71

HT40-MCS7

13.5

-68


2.4 GHz 802.11ax (±2 dB)

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

HE20-MCS0

15.5

-89

HE40-MCS0

15.5

-85

HE20-MCS1

15.5

-86

HE40-MCS1

15.5

-83

HE20-MCS2

15.5

-84

HE40-MCS2

15.5

-81

HE20-MCS3

15

-81

HE40-MCS3

15

-77

HE20-MCS4

15

-77

HE40-MCS4

15

-74

HE20-MCS5

14.5

-73

HE40-MCS5

14.5

-70

HE20-MCS6

14.5

-72

HE40-MCS6

14.5

-69

HE20-MCS7

14

-70

HE40-MCS7

13.5

-67

HE20-MCS8

11.5

-66

HE40-MCS8

13

-63

HE20-MCS9

11.5

-64

HE40-MCS9

12.5

-60

HE20-MCS10

11.5

-60

HE40-MCS10

12.5

-57

HE20-MCS11

11.5

-58

HE40-MCS11

12.5

-55



5 GHz 802.11a (±2 dB)

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

6

16.5

-90

24

14.5

-82

9

16.5

-88

36

14.5

-78

12

14.5

-87

48

14.5

-74

18

14.5

-85

54

14.5

-72



5 GHz 802.11n/ac (±2 dB)

Data Rate (Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

VHT20-MCS0

16

-88

VHT40-MCS0

16

-86

VHT20-MCS1

16

-86

VHT40-MCS1

16

-83

VHT20-MCS2

16

-84

VHT40-MCS2

16

-81

VHT20-MCS3

15

-81

VHT40-MCS3

15

-78

VHT20-MCS4

15

-77

VHT40-MCS4

15

-74

VHT20-MCS5

14.5

-73

VHT40-MCS5

14.5

-70

VHT20-MCS6

14.5

-72

VHT40-MCS6

14 .5

-69

VHT20-MCS7

13.5

-71

VHT40-MCS7

13.5

-68

VHT20-MCS8

12.5

-70

VHT40-MCS8

12.5

-67



5 GHz 802.11ax (±2 dB)

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

HE20-MCS0

15.5

-89

HE40-MCS0

15.5

-85

HE20-MCS1

15.5

-83

HE40-MCS1

15.5

-81

HE20-MCS2

15.5

-81

HE40-MCS2

15.5

-79

HE20-MCS3

14.5

-78

HE40-MCS3

14.5

-74

HE20-MCS4

14.5

-74

HE40-MCS4

14.5

-71

HE20-MCS5

14

-70

HE40-MCS5

14

-67

HE20-MCS6

14

-68

HE40-MCS6

14

-66

HE20-MCS7

13.5

-67

HE40-MCS7

13.5

-64

HE20-MCS8

12.5

-63

HE40-MCS8

12.5

-60

HE20-MCS9

12.5

-62

HE40-MCS9

12.5

-59

HE20-MCS10

10.5

-58

HE40-MCS10

10.5

-55

HE20-MCS11

10.5

-56

HE40-MCS11

10.5

-53



5 GHz 802.11ax (±2 dB)

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

Data Rate

     (Mbps)

TX Power

(per chain dBm)

Sensitivity dBm

HE80-MCS0

15.5

-89

HT80-MCS6

14

-63

HT80-MCS1

15.5

-86

HT80-MCS7

13.5

-62

HT80-MCS2

15.5

-84

HT80-MCS8

12.5

-58

HT80-MCS3

14.5

-81

HT80-MCS9

12.5

-56

HT80-MCS4

14.5

-77

HT80-MCS10

10

-52

HT80-MCS5

14

-73

HT80-MCS11

10

-49
