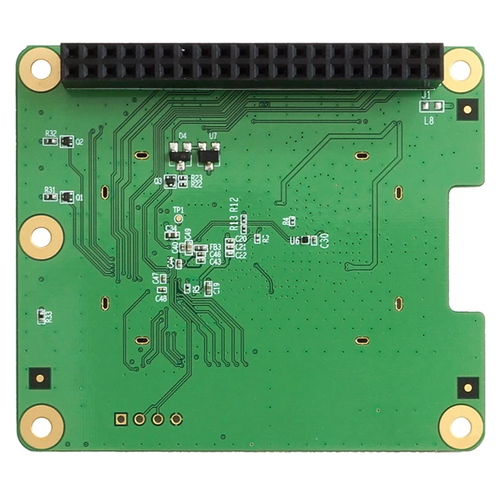

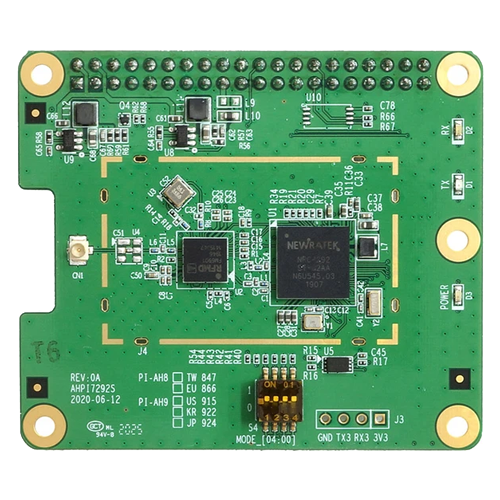

ALFA Network AHPI7292S IEEE 802.11ah sub 1 GHz module in Raspberry Pi™ HAT form factor
The AHPI7292S module series allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands, utilizing the very popular and open platform - the Raspberry Pi™. WiFi HaLow™ enables connectivity for many applications, including sensors and wearables.
With support for standalone and host based modes, up to 15 Mbps data throughput and complete SDK, getting started with this new WiFi standard will be straightforward.
- Newracom™ NRC7292 WiFi HaLow™ SoC (IEEE 802.11ah draft 8.0 compliant)
- Qorvo™ RFFM6901 front-end
- IPEX/U.FL antenna connector
- DIP switch for mode select and connector for UART
- Raspberry Pi™ HAT form factor with 40-pin GPIO connector
-
3× LEDs
Parameter | Value |
---|---|
Chipset | Newracom™ NRC7292 |
Frequency |
847 MHz (TW) 866 MHz (EU) 915 MHz (US) 922 MHz (KR) 924 MHz (JP) |
Modulation | OFDM with BPSK, QPSK, 16QAM, 64QAM |
Data rate | 150 Kbps ~ 15 Mbps |
Channel bandwidth | 1/2/4 MHz |
Antenna connector | 1× IPEX/U.FL |
Interfaces |
SPI UART I2C |
LED |
1× power 1× TX 1× RX |
Form factor | Raspberry Pi™ HAT |
Dimensions | 65 × 56 × 10.3 mm |
Software | https://github.com/newracom/ |
Documentation & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
