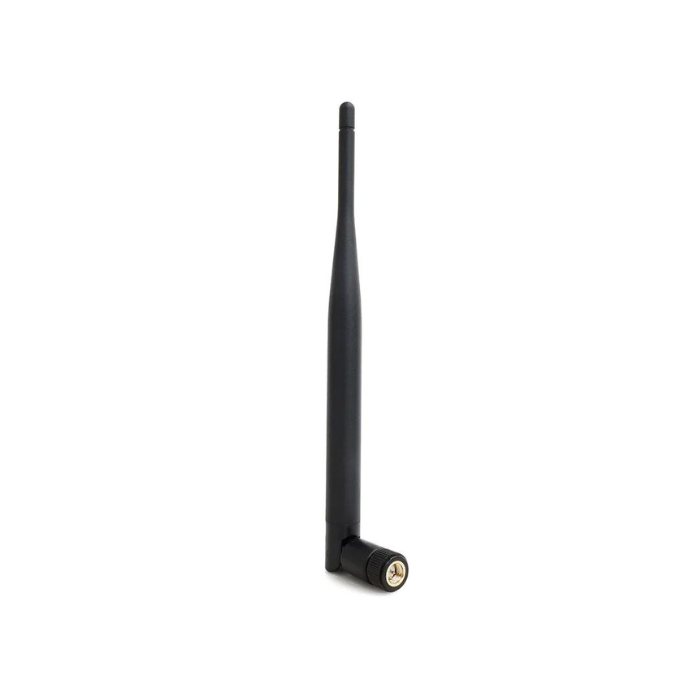

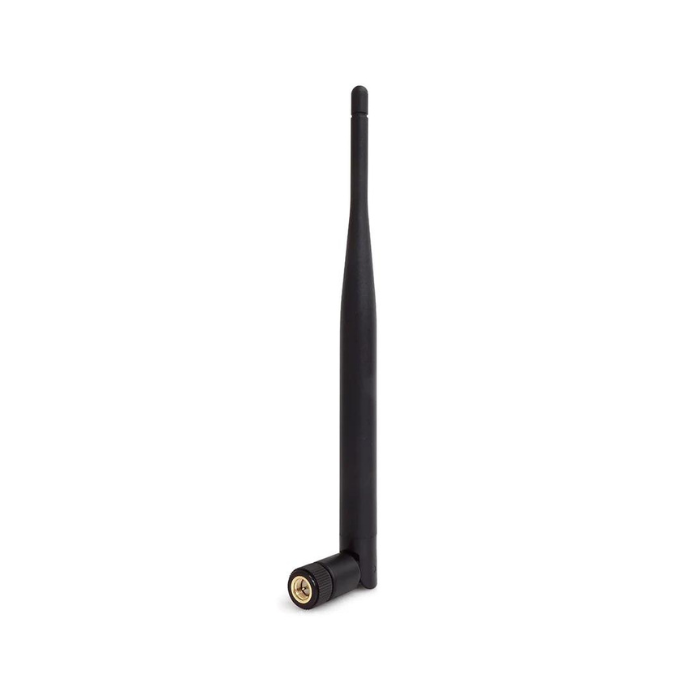

ALFA Network ARS-915P 2 dBi SMA Male 915 MHz antenna with 90° elbow for T-Beam T-Echo LoRa32


ALFA Network ARS-915P in an omni-directional SMA Male 915 MHz dipole antenna with 2 dBi gain. The antenna is 7.7 inches tall and has a 90 degree elbow. Suitable applications are as a factory replacement antenna IoT hardware and Mesh networking devices.

Get the right connection:

SMA Male (this antenna): inside threading, center pin
RP-SMA Male (other model ARS-915PR): inside threading, center hole

Inquire about bulk purchases. Because our items come with free US shipping, this has been factored in the single-unit price. Great discounts available for this item on bulk purchases due to combined shipping savings. Click the Request Quote button by the cart button.

Beware cautious of gain inflation- some places arbitrarily inflate antenna gain numbers to appear better than competing products. Because gain cannot be easily measured by the end-users, we have seen similar antennas marketed aas higher gain. ALFA Network has been making antennas for over 17 years for WiFi, 4G, and other applications. Our 915 MHz antenna are listed with actual specifications. You also do not want extremely high gain as your path will be very narrow and miss other hotspots.

I see similar looking antennas online that say for 600 MHz to 2700 MHz, is a wider frequency spectrum better?

Antennas with a focused spectrum will have better performance on that band segment vs antennas with very wide spectrum. We would not recommend using antennas that are also WiFi 2.4 GHz compatible with your mining equipment. This antenna has a frequency range of just 900-930 MHz to give you maximum performance.

Specifications :

Parameter Value
Frequency Range 902-928 MHz
Gain 2 dBi
VSWR ≤ 2.0
Radiation Pattern Omni
Impedance 50 Ω
Connector SMA male
Dimensions ⌀13.3 x 195 mm (Mechanical Drawing)
Weight 20 g
Temperature -40 °C to 85 °C
Humidity 95% @ 25 °C

Recommended Use

Use as a factory replacement antenna for many popular IoT devices and Mesh network devices that have an SMA female connector on them.
