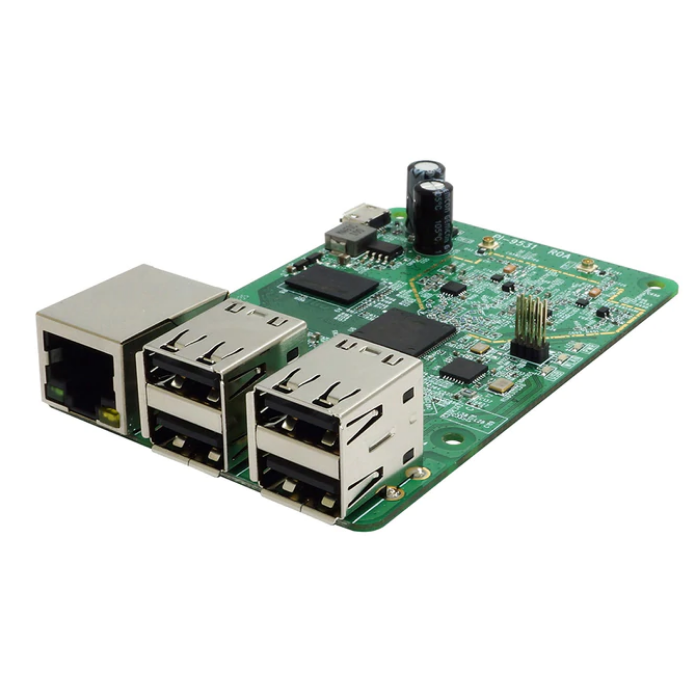

ALFA Network Pi-WiFi4_PCBA Raspberry Pi™ form factor embedded board with 2.4 GHz WiFi 4, Ethernet and 4× USB 2.0
Pickup available at 3205 SW 40th Blvd Ste A
Usually ready in 1 hour
ALFA Network Pi-WiFi4 PCBA is a high-power WiFi 802.11n router board in Raspberry Pi™ 3B shape, equipped with Fast Ethernet and 4× USB 2.0
This is a router board, not a Raspberry Pi.
Pi-WiFi4 offers an integrated 802.11b/g/n WiFi (2.4 GHz, N300, up to 27 dBm) radio with IPEX/U.FL antenna connectors, single Fast Ethernet, and four USB 2.0 interfaces for various applications.
Official OpenWrt support, web-based recovery, and system serial console access over the micro USB connector (driver free) make development extremely easy.
- Qualcomm™ QCA9531 (650 MHz single-core MIPS)
- 128 MB of DDR2 RAM
- 16, 32 or 64 MB of SPI NOR flash
- Integrated WiFi N300 2.4 GHz (up to 27 dBm)
- 1× Fast Ethernet with ESD protection
- 4× USB 2.0 Type-A (host)
- 1× push-button
- 8-pin console and GPIO header (1.27 mm pitch)
- 1× USB 2.0 micro Type-B (power, system console)
- 3× LED
| Parameter | Value |
|---|---|
| SOC | Qualcomm™ QCA9531 with 650 MHz single-core MIPS 24Kc CPU |
| RAM | 128 MB of DDR2 |
| Flash | 16, 32 or 64 MB of SPI NOR flash |
| WiFi |
802.11b/g/n 2T2R 2.4 GHz 2× IPEX/U.FL antenna connectors |
| USB |
4× USB 2.0 Type-A (host) Genesys Logic GL850G USB 2.0 HUB 1× USB 2.0 micro Type-B for system serial console access (driver free) |
| Ethernet | 1× Fast Ethernet with ESD protection |
| Pin headers | 1× 8-pin system serial console and GPIO (1.27 mm pitch) |
| Button | 1× push-button (reset) |
| LED |
1× power (blue) 1× USB (blue) 1× WLAN (blue) |
| Other | External hardware watchdog |
| Software |
U-Boot with web-based firmware recovery support Officially supported in OpenWrt (Linux Kernel 5.4) |
| Power supply | USB 2.0 micro Type-B for 5 V DC input |
| Mounting holes | ∅ 3 mm, 58 × 49 mm |
| Dimensions | 85 × 56 × 17 mm |
| Operating humidity | 5 % ~ 95 % RH, non-condensing |
| Operating temperature | -40 ° ~ 65 ° C |
| Weight | 36 g |
