Tube-2HQ is a high-power 802.11n 2.4 GHz AP/CPE board, equipped with Fast Ethernet
Tube-2HQ offers an integrated 802.11b/g/n WiFi radio (2.4 GHz, up to 27 dBm TX power and 150 Mbps throughput) with type-N (male) antenna connector and Fast Ethernet with support for passive PoE input.
Official OpenWrt support, web-based recovery and system serial console access make development extremely easy.
Because it is Ethernet based, it is OS independent. It can be used with a Mac, PC, or any Ethernet enabled device (it must be configured on a computer using a web browser).
| SOC | Qualcomm™ QCA9531 with 650 MHz single-core MIPS 24Kc CPU |
| RAM | 128 MB of DDR2 |
| Flash | 16 MB of SPI NOR flash |
| WiFi | 802.11b/g/n 1T1R 2.4 GHz 1x Type-N (male) antenna connector |
| Ethernet | 1x Fast Ethernet with ESD protection |
| Pin headers | 1x 4-pin system serial console (2.00 mm pitch) |
| Button | 1x push-button (reset) |
| LED | 1x power/PoE input (blue) 1x LAN (blue) 4x signal level (red, orange, green, green) |
| Other | External hardware watchdog |
| Software | U-Boot with web-based firmware recovery support Officially supported in OpenWrt (Linux Kernel 5.10+) |
| Power supply | Passive PoE (24 V DC) input |
| Dimensions | 176 x 38 |
| Weight | 125 g |
| Operating humidity | 5 % ~ 90 % (Non-condensing) |
| Operating temperature | -30 °C ~ 70 °C |
It is a PoE device which means it is accessed and configured via Ethernet cable, and also receives power over the Ethernet cable, so there is no need to run long electrical extensions. We have a selection of different length Ethernet cable available here. This device is suitable for outdoor use in campgrounds and marinas.
Some technical knowledge of access points is required to configure this device.
The Tube 2HQ does not include an integrated antenna. It has an N-male antenna connector that can be used with any N-connector 2.4 GHz antenna. We carry compatible antennas and extension cables.

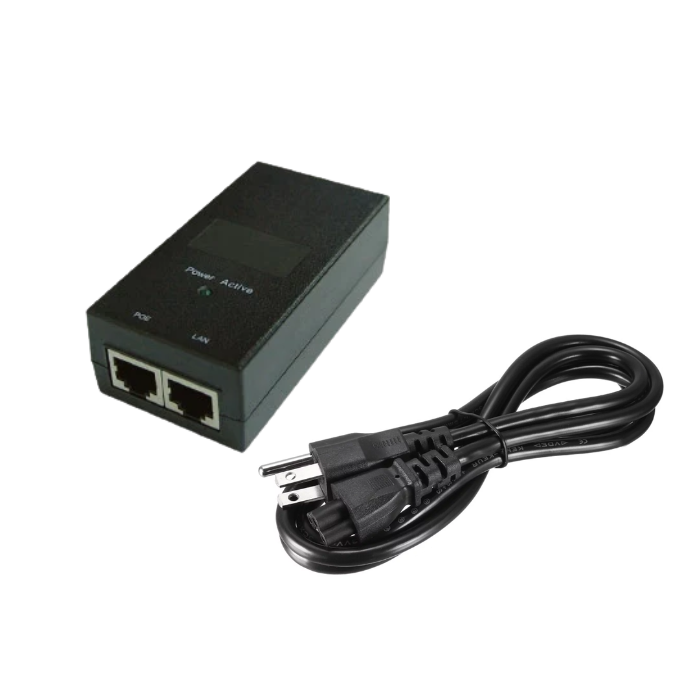

It ships with a Passive PoE (24 V DC) input power supply with cord, and mounting ties. No Ethernet cables are included.
Additional Resources:
Hardware and Software Setup: Client Bridge Mode
Hardware and Software Setup: Router Mode
Specifications:
Part/Model #: Tube-2HQ
Country of Origin: Taiwan
Manufacturer : Alfa Network Inc.
1-Year Warranty
Complimentary Telephone and Email/Live Chat Support (Click Here)
Online Technical Manuals and Instructions (Click Here)
