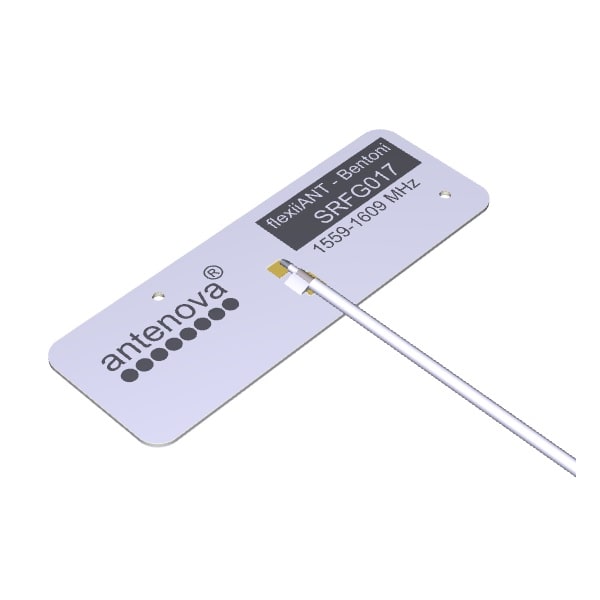

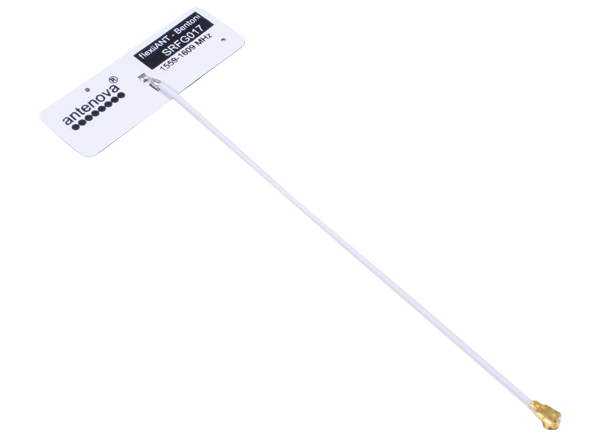

Antenova SRFG017 Passive GPS GNSS Antenna – 4dB Peak Gain – u.FL Plug

This GNSS (GPS, Beidou, Galileo, Glonass) antenna has an adhesive tape. It’s a kind of flex PCB (FPC) and can be folded for tight spaces.


1.561GHz, 1.575GHz, 1.602GHz Beidou, Galileo, GLONASS, GPS Flat Patch RF Antenna 1.559GHz ~ 1.609GHz 4dBi U.FL (UMCC), IPEX MHF1 Adhesive

50-ohm impedance
100mm cable length with u.FL connector
Polarization: Linear
Average gain: -1.2dBi
Average efficiency: >75%
V.S.W.R: <1.45
Dimensions: 40 x 14 x 0.15mm


For use with Quectel EG25-G
