Arduino

Arduino Portenta H7

$99.97

Pickup available at 2251 NW 41st Street

Usually ready in 1 hour

Code: ABX00042  /  Barcode: 7630049202252

Portenta H7 allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it’s easy with the Arduino IoT Cloud compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you’re a beginner or a pro, we have a wide range of plans to make sure you get the features you need.

Portenta H7 simultaneously runs high level code along with real time tasks. The design includes two processors that can run tasks in parallel. For example, is possible to execute Arduino compiled code along with MicroPython one, and have both cores to communicate with one another. The Portenta functionality is two-fold, it can either be running like any other embedded microcontroller board, or as the main processor of an embedded computer.

Portenta can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other could be making low-level operations like controlling a motor, or acting as a user interface.

Two Parallel Cores

H7's main processor is the dual core STM32H747 including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals and can run:

  • Arduino sketches on top of the Arm® Mbed™ OS
  • Native Mbed™ applications
  • MicroPython / JavaScript via an interpreter
  • TensorFlow™ Lite

Graphics Accelerator

Probably one of the most exciting features of the Portenta H7 is the possibility of connecting an external monitor to build your own dedicated embedded computer with a user interface. This is possible thanks to the STM32H747 processor's on-chip GPU, the Chrom-ART Accelerator™. Besides the GPU, the chip includes a dedicated JPEG encoder and decoder.

On-board Connectivity

The onboard wireless module allows to simultaneously manage WiFi and Bluetooth® connectivity. The WiFi interface can be operated as an Access Point, as a Station or as a dual mode simultaneous AP/STA and can handle up to 65 Mbps transfer rate. Bluetooth® interface supports Bluetooth Classic and Bluetooth® Low Energy.  It is also possible to expose a series of different wired interfaces like UART, SPI, or I2C, both through some of the MKR styled connectors, or through the new Arduino industrial 80 pin connector pair. The 80-pin connector pair provides additional features including Ethernet.

USB-C® Multipurpose Connector

The board's programming connector is a USB-C port that can also be used to power the board, as a USB Hub, to connect a DisplayPort monitor, or to deliver power to OTG connected devices.

Multiple options in one board

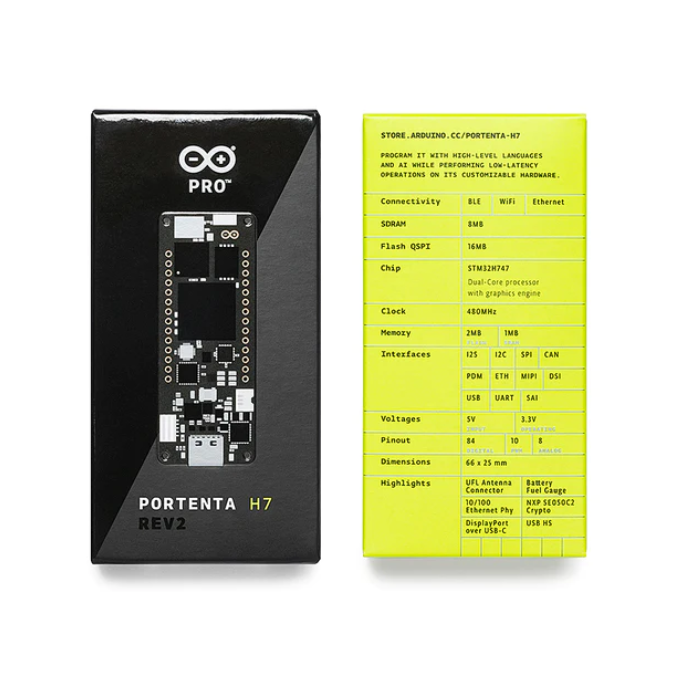

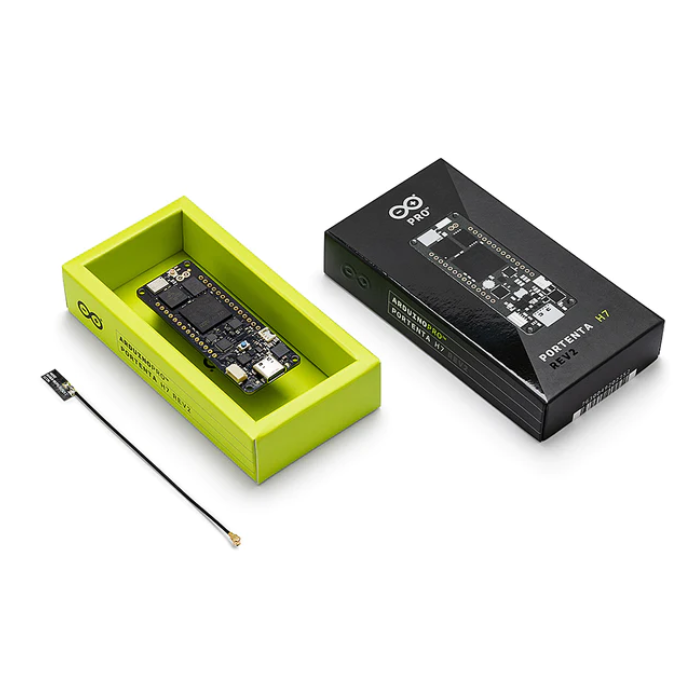

Order the default Arduino Portenta H7 (codename H7-15EUNWAD) that comes with:

  • STM32H747 dual-core processor with graphics engine
  • 8MB SDRAM
  • 16MB NOR Flash
  • 10/100 Ethernet Phy
  • USB HS
  • NXP SE050C2 Crypto
  • WiFi/BT Module
  • External Antenna
  • DisplayPort over USB-C

Tech specs

The Arduino Portenta H7 is based on the STM32H747 microcontroller, XI series.

Microcontroller STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)
Radio module Murata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth® (Bluetooth® Low Energy. 5 via Cordio stack, Bluetooth® Low Energy 4.2 via Arduino Stack) (datasheet)
Secure Element (default) NXP SE0502 (datasheet)
Board Power Supply (USB/VIN) 5V
Supported Battery Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
Circuit Operating Voltage 3.3V
Display Connector MIPI DSI host & MIPI D-PHY to interface with low-pin count large display
GPU Chrom-ART graphical hardware Accelerator™
Timers 22x timers and watchdogs
UART 4x ports (2 with flow control)
Ethernet PHY 10 / 100 Mbps (through expansion port only)
SD Card Interface for SD Card connector (through expansion port only)
Operational Temperature -40 °C to +85 °C
MKR Headers Use any of the existing industrial MKR shields on it
High-density Connectors Two 80 pin connectors will expose all of the board's peripherals to other devices
Camera Interface 8-bit, up to 80 MHz
ADC 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
DAC 2× 12-bit DAC (1 MHz) available, only one is accessible by the user through the external A6 pin
USB-C Host / Device, DisplayPort out, High / Full Speed, Power delivery


Dev board return policy

Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.

Shipping & Returns
FREE Standard shipping on all items shipped in the USA!
We are in Florida and ship to: USA, Australia, Austria, Canada, France, Germany, Israel, Netherlands, and the United Kingdom. Local pickup available in Gainesville, FL

Expedited shipping orders placed before 3PM EST weekdays will ship that day. Standard shipping orders ship within 1 business day.

Sales tax: shipments shipped to states in which we are registered to collect tax will have appropriate tax added at checkout. Tax exempt forms can be sent to our support staff who can activate exemption status.

Lost packages and insurance

International Shipping:

Shipping options are visible in cart by using the shipping estimator. Transit times posted are estimates. International packages are subject to customs holds and duty payment may be required by your government on delivery. The cost of duty  is not reimbursable. Internatonal shipping charges are not refundable in the event of a return.

Returns

See item description for product specific return policies, and return policies vary by item.

Bulk/High Value Order Returns

Due to the labor required to package and ship bulk orders, as well as cost and stock issues involved in replenishing items, bulk orders of 5 pieces or more are not returnable unless the equipment is defective or mis-advertised, or a return period is prenegotiated. For non-defective returns over $500, a restocking fee may be deducted from the refund to cover bank or card processing fees.

Backorder/Preorder

Items on backorder or preorder will ship as estimated on the item page. You can cancel an order any time up until shipment. Orders with expedited shipping will arrive in the advertised time after the order ships, not after the order is placed.

Cancellations

If you want to cancel an order, please email or call us at (352) 372-9902. If your item has not been shipped, we will cancel the order and provide a full refund.

Compatibility

Microsoft Windows 7, 8, 10, 11, Linux Kernel 4.19 or later
