Arduino

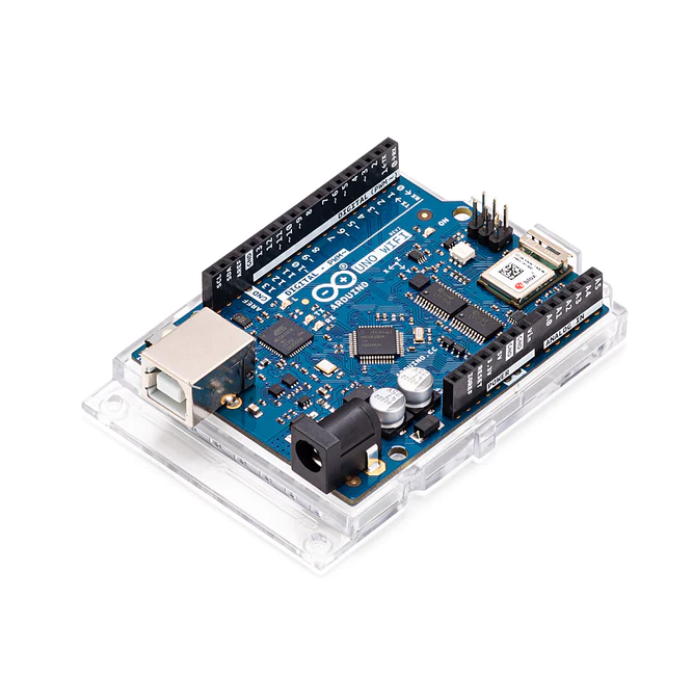

ARDUINO UNO WiFi REV2

$52.97

Pickup available at 2251 NW 41st Street

Usually ready in 1 hour

Code: ABX00021  /  Barcode: 7630049200234

The Arduino UNO WiFi Rev.2 is the easiest point of entry to basic IoT with the standard form factor of the UNO family. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a Bluetooth® Low Energy device sending data to a cellphone, the Arduino UNO WiFi Rev.2 is your one-stop-solution for many of the basic IoT application scenarios.

Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi / Bluetooth® and some other enhancements. It incorporates the brand new ATmega4809 8-bit microcontroller from Microchip and has an onboard IMU (Inertial Measurement Unit) LSM6DS3TR.

The Wi-Fi Module is a self-contained SoC with integrated TCP/IP protocol stack that can provide access to a Wi-Fi network, or act as an access point. It is the u-blox NINA-W102 and (here) you find the datasheet.

Tech specs

Microcontroller ATmega4809 (datasheet)
Operating Voltage 5V
Input Voltage (recommended) 6 - 20V
Digital I/O Pins 14 — 5 Provide PWM Output
PWM Digital I/O Pins 5
Analog Input Pins 6
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 48 KB (ATmega4809)
SRAM 6,144 Bytes (ATmega4809)
EEPROM 256 Bytes (ATmega4809)
Clock Speed 16 MHz
Radio module u-blox NINA-W102 (datasheet)
Secure Element ATECC608A (datasheet)
Inertial Measurement Unit LSM6DS3TR (datasheet)
LED_BUILTIN 25
Length 68.6 mm
Width 53.4 mm
Weight 25 g
