Elecrow ThinkNode M7 Meshtastic Wireless Communication Gateway + PoE ESP32-S3 and LR1110

$59.90

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

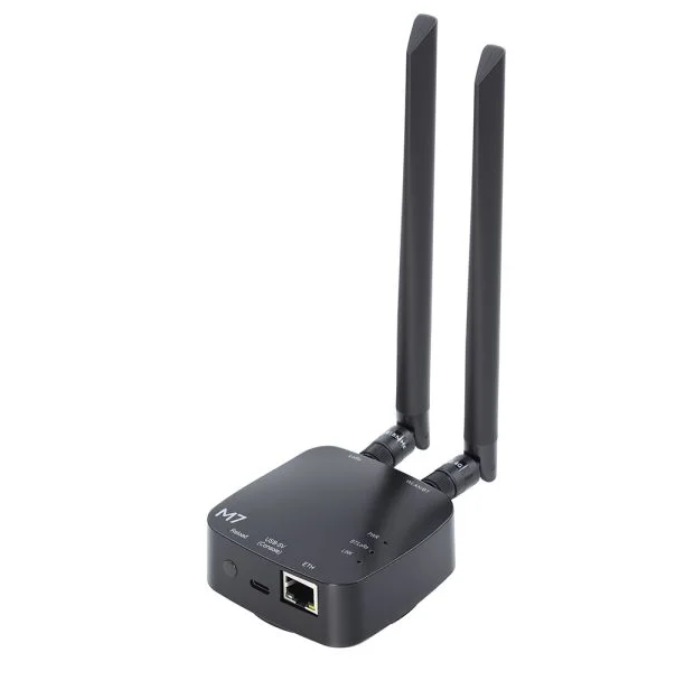

Elecrow ThinkNode M7 is a high-performance gateway based on the ESP32-S3 module and LR1110 LoRa chip, deeply adapted for the LoRa protocol. The device features an Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240MHz, providing powerful computing capabilities. It also integrates 2.4GHz Wi-Fi, Bluetooth Low Energy 5.0, and LoRa wide-area communication capabilities, supporting the US 915MHz and EU 868MHz bands to meet the IoT deployment needs of different regions.

The product boasts a sleek design with a mounting base. Interfaces include a USB power/data port and a 100Mbps Ethernet port.

PoE power supply is supported. An external adhesive antenna further enhances signal coverage.

The device's hardware and software perfectly support the Meshtastic standard protocol, and it comes pre-installed with gateway functionality, making it truly plug-and-play. It is an ideal choice for indoor wireless applications, offering high-performance processing, wide signal coverage, and convenient internet access.

FEATURES

  • Deeply adapted for LoRa protocol: Hardware and software are specifically optimized for Meshtastic communication protocols and indoor scenarios, ensuring stable and efficient signal transmission and reception performance.
  • Dual-core high-performance processor: Utilizes the ESP32-S3 module, equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz, providing ample computing power for complex communication and data processing.

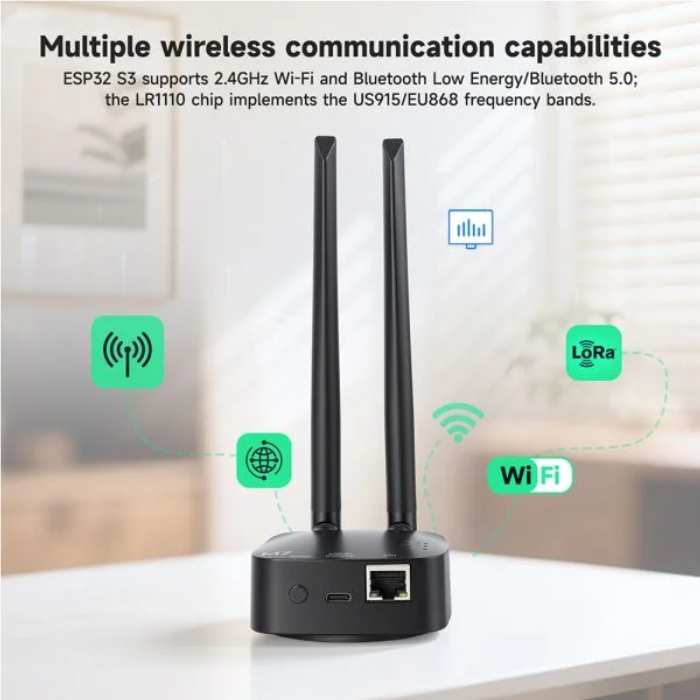

  • Multiple wireless communication capabilities: Integrates 2.4GHz Wi-Fi and Bluetooth Low Energy/Bluetooth 5.0, supporting flexible device networking and local interconnection. It can also achieve wide-area LoRa communication in the US915/EU868 bands via the LR1110 chip.

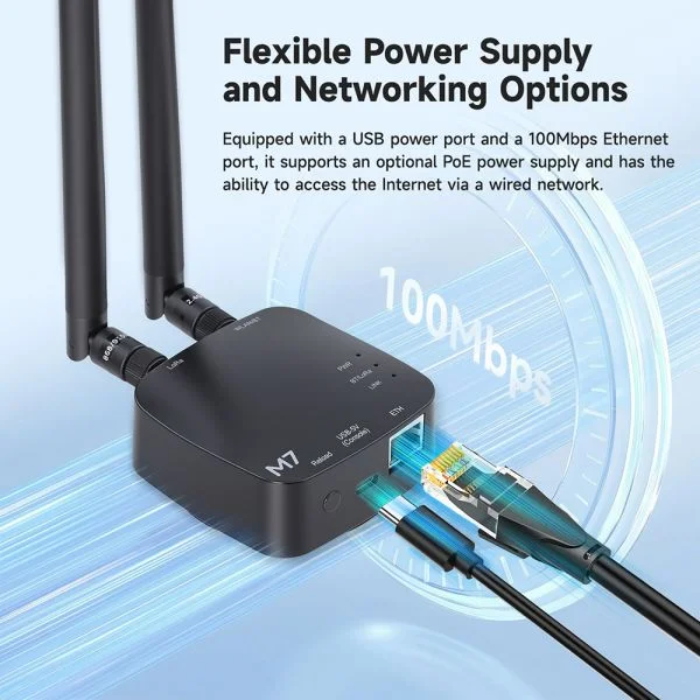

  • Flexible power supply and networking methods: Equipped with a USB power port and a 100Mbps Ethernet port, supporting optional PoE power supply, adapting to different indoor deployment scenarios, and possessing the ability to access the Internet via wired network.
  • Enhanced signal coverage: Employs an external rubber rod antenna, significantly improving LoRa signal transmission and reception distance, expanding indoor coverage, and supporting more stable long-distance node connections.

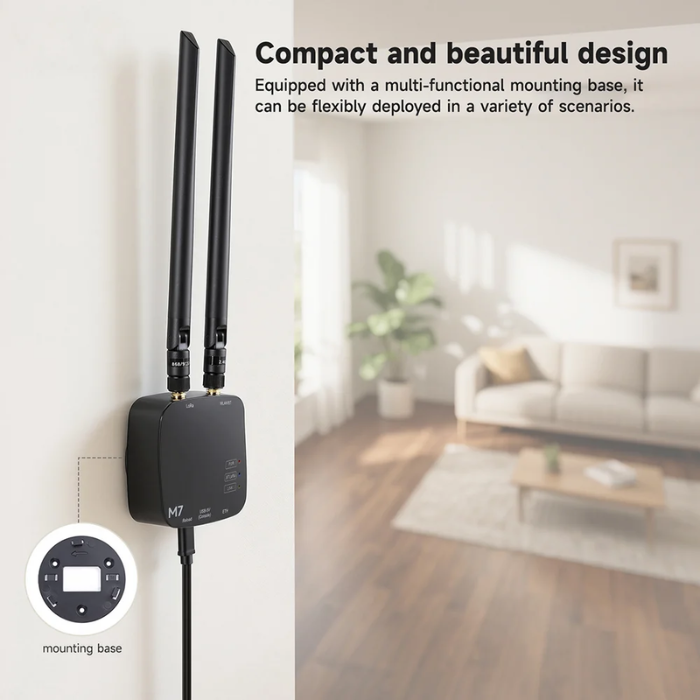

  • Simple structure and easy installation: The simple design and built-in fixed base make it easy to install on walls or desktops, and it is suitable for deployment in a variety of indoor environments.

Specifications

Main Chip: ESP32-S3

Processor

Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz

System memory

512KB SRAM、8M PSRAM

Storage

4M Flash, 384KB ROM

Development Language

MicroPython, C/C++

Development Environment

ESP-IDF, Arduino IDE

Configuration Interface

Meshtastic Official App

Maximum distance

8-10KM

Wireless Communication

Bluetooth

Bluetooth Low Energy and Bluetooth 5.0

WiFi

Support 802.11a/b/g/n，2.4GHz

LoRa

LR1110, Supports US915MHz/ EU868MHz

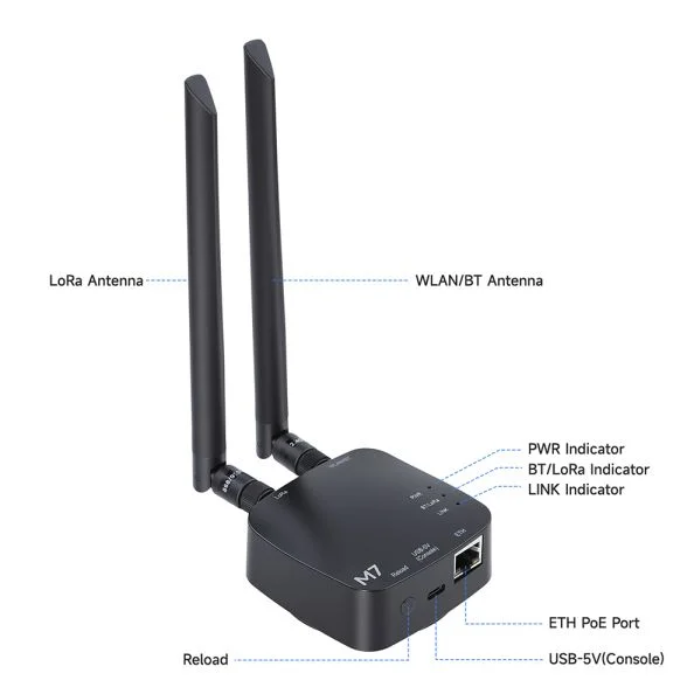

Hardware

Ethernet Interface

RJ45, WAN/LAN, 10/100 Mbps, PoE supported

USB interface

Type-C: Debugging/Power Supply Port, 5V/1A

LoRa Antenna Connector

RP-SMA Female Connector, External Antenna

Reload Button

Device Restart, Configuration, Factory Reset

Boot Button

Enter programming mode; the device communicates with the programming tool (internally reserved, hidden).

LED Light

PWR Status, LoRa Signal, BT Indication

Other

Power Input

Supports USB 5V/1A or Ethernet power supply (37V–57V DC [IEEE 802.3af])

Material

Plastic Material

Installation Method

Rear-Mount, Wall-Mount, Desktop

Operating temperature

-20~70℃

Storage temperature

-40~80℃

Relative Humidity

10%–95% @ 40°C (non-condensing)

Size

74*74*33mm (Without Antenna)

Net Weight

80g (Without Antenna)

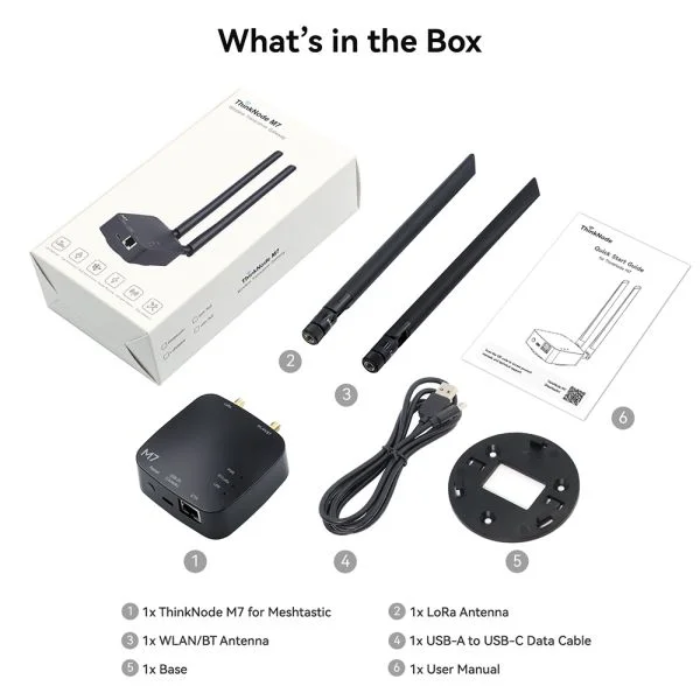

What it comes with

  • 1x ThinkNode M7 for Meshtastic
  • 1x LoRa Antenna
  • 1x WLAN/BT Antenna
  • 1x USB-A to USB-C Data Cable
  • 1x Base
  • 1x User Manual

Dev board & device return policy

Development boards and devices are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards and devices can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. The reason is to help cover our original ship cost and item value depreciation for being used. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.
