Elecrow ThinkNode M9 Mesh Node with Full Keyboard 2.4inch LCD ESP32-S3 + LR1110 GPS

$84.97

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

Prices may be higher than manufacturer's website as tariffs are included

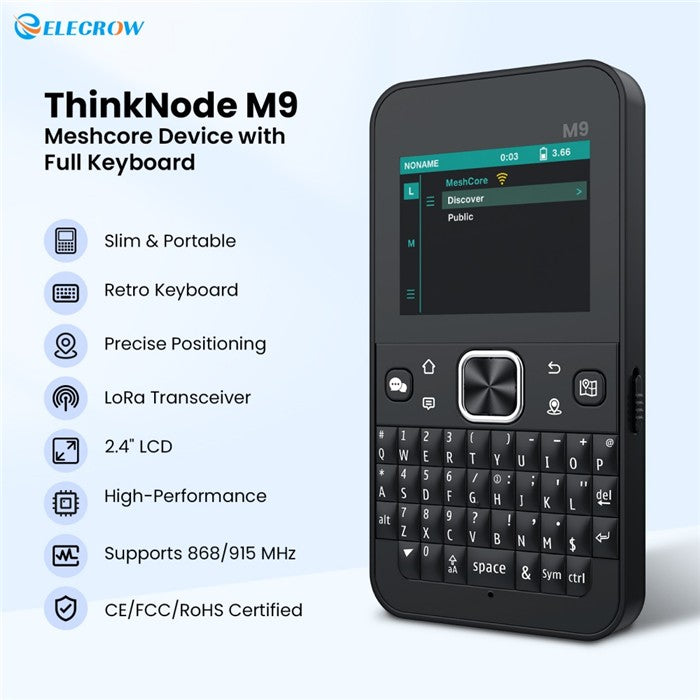

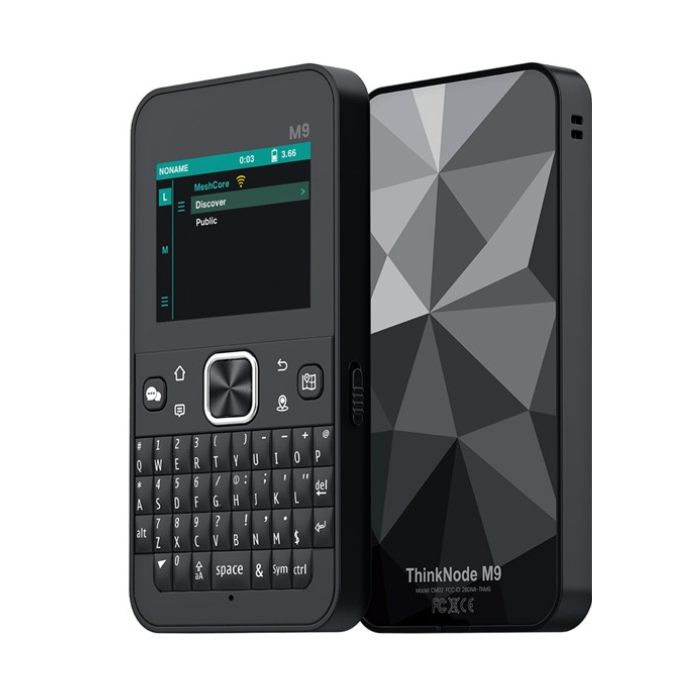

Elecrow ThinkNode M9 is a compact, all-in-one Meshtastic and MeshCore communicator designed for off-grid messaging without cellular service, Wi-Fi, or a smartphone. With its built-in LoRa radio, full QWERTY keyboard, 2.4-inch color display, and GPS, the M9 lets you exchange messages and share your location directly over compatible MeshCore networks.

Powered by an ESP32-S3 processor and Semtech LR1110 LoRa transceiver, the M9 combines long-range wireless communication with a familiar handheld design. Its rechargeable 2300mAh battery makes it a practical choice for hiking, camping, emergency preparedness, and everyday mesh networking.

NOTE: While similar to the LILYGO T-Deck in appearance, this does NOT have a touchscreen like the T-Deck model

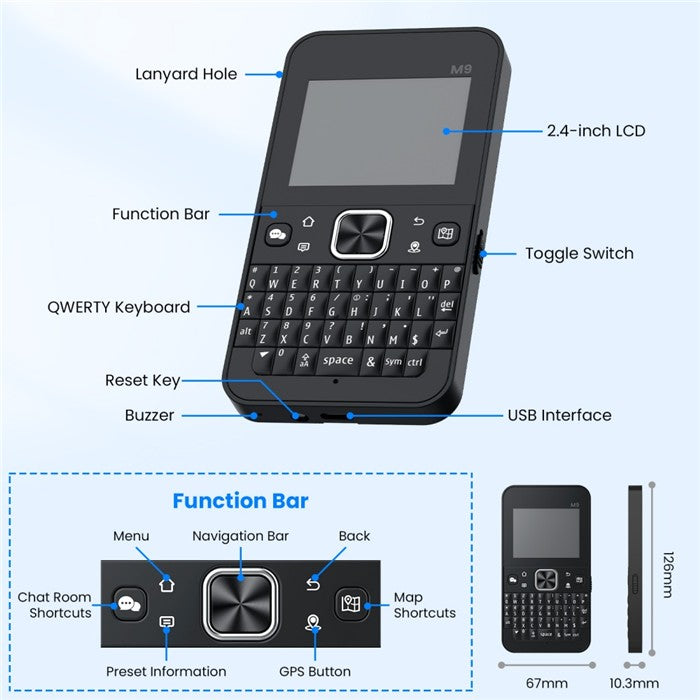

Key Features

  • Standalone Meshtastic or MeshCore Messaging: Send and receive text messages without a smartphone, cellular service, or internet connection. Device comes flashed with Meshtastic. MeshCore firmware is available for separate download.

  • Full QWERTY Keyboard: Physical 37-key keyboard makes typing messages easier than using small touchscreens or button-based interfaces.

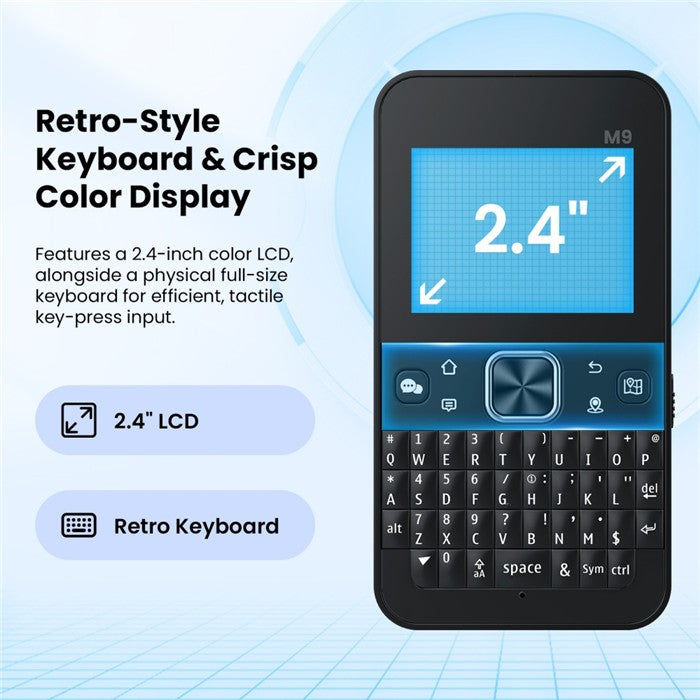

  • 2.4-Inch Color Display: View conversations, contacts, maps, and device information on a 240 × 320 LCD.

  • Long-Range LoRa Communication: Semtech LR1110 transceiver with an integrated antenna for communication over compatible Meshtastic or MeshCore networks.

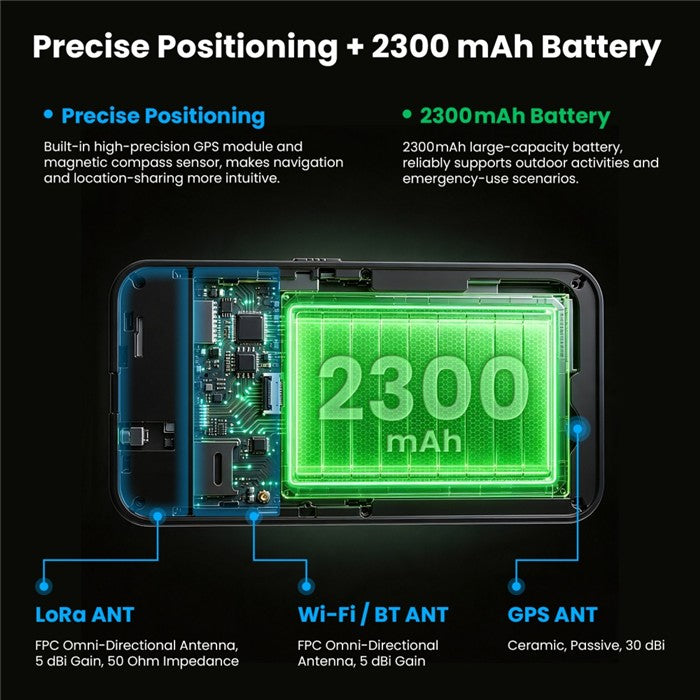

  • Built-In GPS: Multi-constellation GNSS support for location tracking and sharing, plus a digital compass for directional awareness.

  • 2300mAh Rechargeable Battery: Up to 2–3 days of standby operation under manufacturer-rated conditions, with convenient USB-C charging.

  • Preinstalled MeshCore Firmware: Designed for standalone operation, including direct and repeater-assisted messaging.

  • Compact, Portable Design: Lightweight handheld form factor with integrated antennas and no external radio required.

Technical Specifications

Feature Specification
Processor ESP32-S3 dual-core, up to 240MHz
LoRa Transceiver Semtech LR1110
Frequency 915 MHz (US version)
Firmware Meshtastic preinstalled
Display 2.4" color LCD, 240 × 320
Keyboard 37-key physical QWERTY
Positioning GPS, Galileo, GLONASS, BeiDou
Connectivity LoRa, Bluetooth, 2.4GHz Wi-Fi
Battery 2300mAh rechargeable LiPo
Charging USB-C
Additional Features Digital compass, buzzer, RTC
Dimensions 126 × 67 × 10.3 mm
Weight Approximately 123g

What's Included

  • 1 × Elecrow ThinkNode M9 Communicator

  • 1 × USB-C Cable

  • 1 × Quick Start Card

Important Notes:

  • This version comes preinstalled with Meshtastic firmware, not MeshCore. Users can change firmware.

  • Communication requires compatible devices within radio range, either directly or through repeaters.

  • Certain Wi-Fi features, including automatic map downloads, require an additional third-party software license.

  • Wireless range and battery life depend on terrain, network conditions, usage, and configuration.
