LILYGO T-Camera S3 Fisheye OV2640 HD Camera ESP32-S3FN1 6R8 Dual-core microprocessor H644
Pickup available at 2251 NW 41st Street
Usually ready in 1 hour

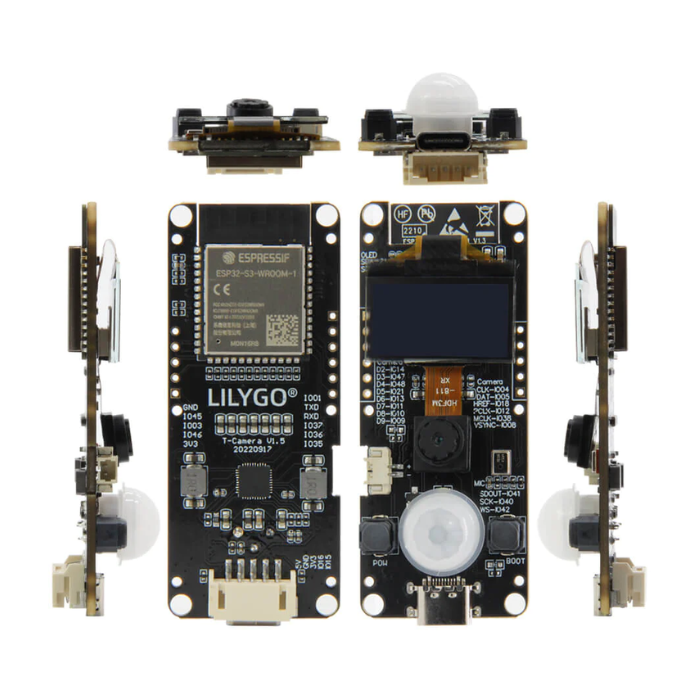

The LILYGO® T-Camera S3 Fisheye OV2640 HD Camera is a development board designed for IoT applications. Main image shows front and back of single unit, sale is for single unit.
Equipped with the ESP32-S3FN1 6R8 Dual-core microprocessor and OV2640 camera module, this board is perfect for building projects that require high-performance processing and image capture capabilities.
This is Fisheye model
The dual-core microprocessor allows for efficient and reliable performance, while the chip provides enhanced power management features. The board also features a 6R8 power module, ensuring stable and consistent power supply to your project.
With the T-Camera S3, you can easily capture and process images and video, making it an ideal choice for applications such as home security, remote monitoring, and machine vision. Additionally, the board comes with a variety of connectivity options, including WiFi, Bluetooth, and USB, making it easy to integrate into your existing projects.
Whether you're a hobbyist or a professional developer, the LILYGO® T-Camera S3 is a versatile and powerful tool for your next IoT project.

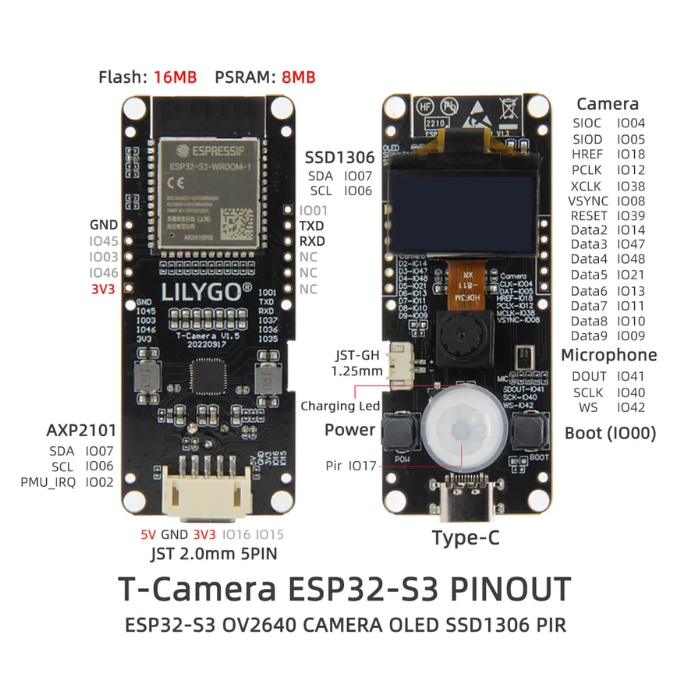

Specifications
| MCU | ESP32-S3FN1 6R8 Dual-core microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide, VS Code |
| PSRAM | 8MB |
| Flash | 16MB |
| OV2640-Camera module |
| Pixels | 2 Million (UXGA 1622X1200) |
| Voltage | 3.3V |
| OLED I2C SSD1306 0.96 inch |
| Resolution | 128x64 |
| Drive Protocol | I2C |
| SDA | IO07 |
| SCL | IO06 |
Product Contents
- T-Camera S3
- 2.0mm 5pin to jumper wire (20cm)
- JST 2.0mm 2P
- 2.54mm Male Pin (5Pin)
- 2.54mm Male Pin (6Pin)
Sample Code For Reference [Github]
