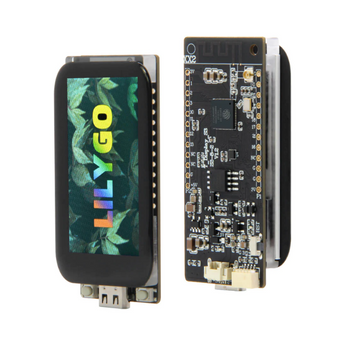

LILYGO® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth 5.0 Wireless Module 170*320 Resolution..
T-Display-S3 Touch is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color touch screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.
Note:
- Please use USB2.0 (USB A-USB C) cable.
- Compatible With ST7789
Specifications
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide、 Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat voltage detection | IO04 |
| Onboard functions | Boot + Reset + IO14 Button |
| LCD | 1.9" diagonal, Full-color TFT Display |
| Drive Chip | ST7789V |
| Resolution | 170(H)RGB x320(V) 8-Bit Parallel Interface |
| Working power supply | 3.3v |
| Support |
STEMMA QT / Qwiic JST-SH 1.0mm 4-PIN |
| Connector | JST-GH 1.25mm 2PIN |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-Display-S3
