LILYGO T-TWR PLUS Development Board Walkie-Talkie Module H632 (UHF 400-480MHz)

Name: LILYGO T-TWR PLUS Development Board Walkie-Talkie Module H632 (UHF 400-480MHz)
Brand: LILYGO
Price: 68.97 USD
Availability: InStock

$68.97

Product variants

Quantity

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

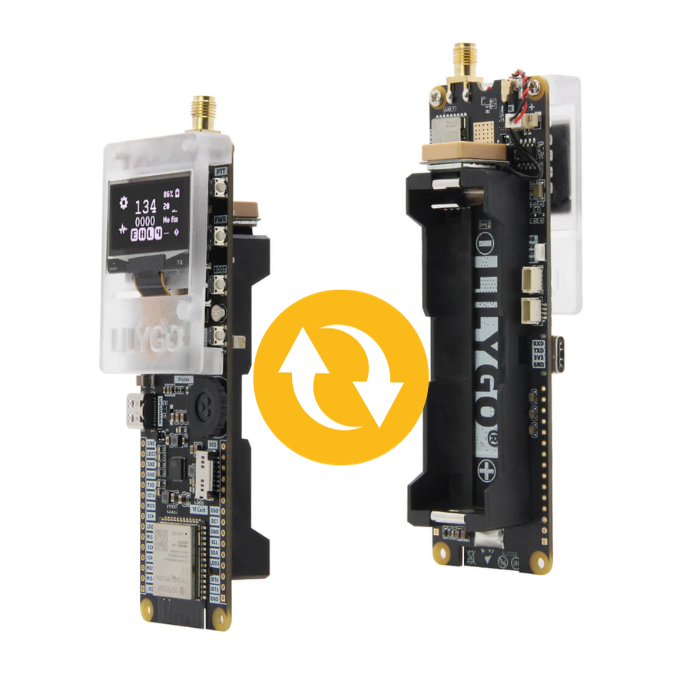

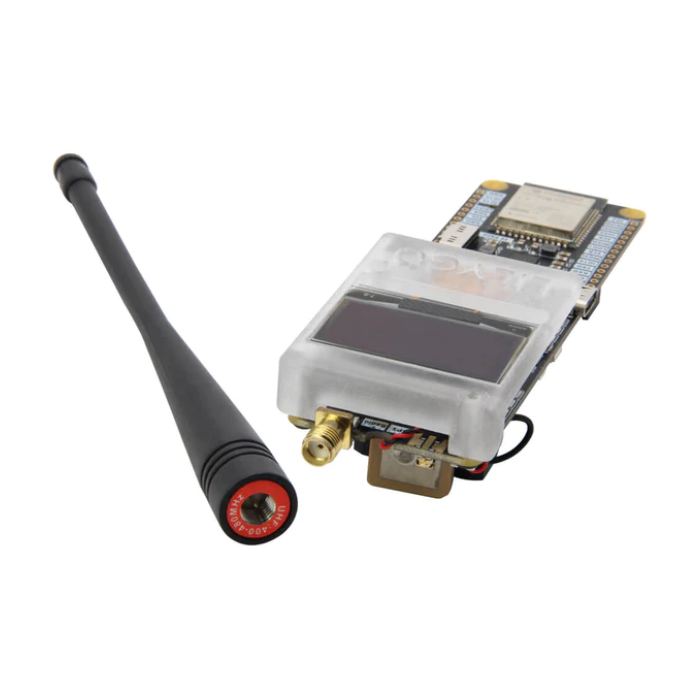

T-TWR Plus is the ultimate development board for ambitious tech-enthusiasts. With integrated Wi-Fi and Bluetooth, and a SA868 Wireless Transceiver, this board can achieve Walkie-Talkie functionality. It also includes an OLED Display and GPS for precise location tracking. Unleash the potential of T-TWR Plus.

***This product does not include the battery.***
Check our battery page.

Specifications

MCU	ESP32-S3-WROOM-1-N16R8
Flash	16MB
PSRAM	8MB
Wireless protocol	Wi-Fi & Bluetooth 5 (LE)
Onboard functions	4 Buttons (PPT+Boot + PWR + Reset), PMU AXP2102, TF Card function, WS2812 RGB LED
Supply Mode	USB / 21700 battery / 18650 battery + spring
L76K GNSS Module	upport GPS, BDS, GLONASS Built-in LNA, SAW Filter, Support AGNSS and 1PPS

1.3 inch SH1106 OLED

Resolution	128x 64
I2C Interface	SDA--IO08 SCL--IO09
Display Color	2

Sample Code For Reference [Github]

T-TWR Plus

Pin Diagram
