The Unify Enclosures are modular IP65 rated outdoor enclosures that include tailored features to support WisBlock Base Boards and WisBlock Modules.
Deployment of your IoT solution is easy thanks to a range of swappable mounting accessories that enable you to install your IoT solution in any setting. These accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.
The 100x75x38mm enclosure has enough space to support the following WisBlock Base Boards - RAK19003, RAK19007, RAK5005-O.
There is also space for a flat LiPo battery to be hosted under the internal mounting plate. Approximate space available is 55x34x5mm excluding any tape used to secure such a battery.

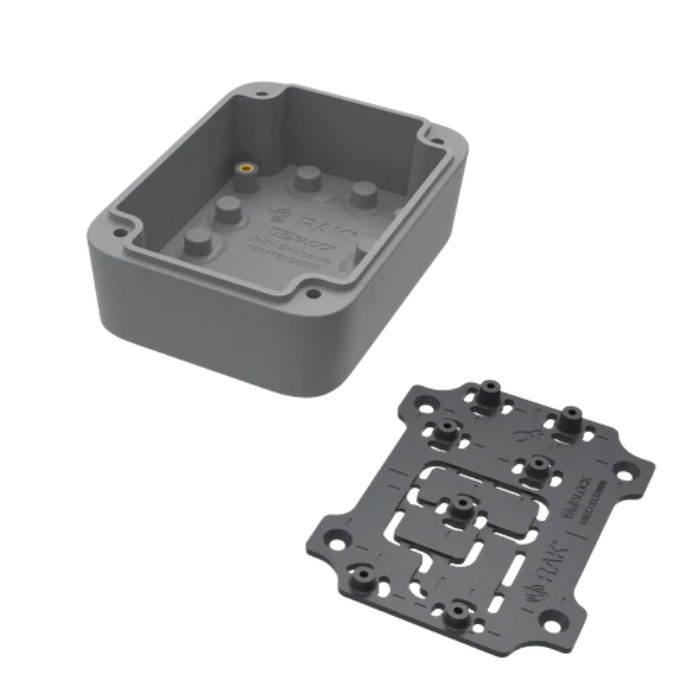

Unify Mounting Plate with Screw Bosses for 100x75x38mm Enclosure
This mounting plate fits perfectly into the Unify Enclosure 100x75x38mm and has integrated screw bosses to support RAK19003, RAK19007 and RAK5005-O.
The mounting plate can be adapted easily to accommodate each of the Base Boards and any attached sensors by the removal of sections of the mounting plate that are not required by using of simple hand operated side-cutters to cut away the unnecessary sections.
Mounting Plate with Screw Bosses Specifications:
- Compatible only with Unify Enclosure IP65 100x75x38mm
- Supports RAK19003
- Supports RAK19007
- Supports RAK5005-O
- Thickness: 2mm
- Includes M3 countersink screws to mount to the enclosure
- Includes self-tapping screws to mount the WisBlock Base Board to the mounting plate
