Sale

10 dBi Rokland Backcountry Rural N-Male Omni Outdoor Helium 915 MHz Antenna 45" for RAK Nebra Bobcat SenseCAP M1 Hotspots

$59.00 $79.97

Introducing the Rokland Backcountry 10 dBi outdoor Helium & IoT 915 MHz 45" fiberglass antenna with N-male connector and U-bolt bracket mount. This is designed for very rural and remote locations and is not advisable for urban or suburban locations. With this very high gain, the signal can receive from a very long distance but at a very narrow path. It will miss hotspots within a few miles and is designed to connect remote miners and other IoT devices to the Helium network from an exceptionally long distance of 10 miles over open terrain, or more. Urban and suburban users should check our 8 dBi and 5.8 dBi options for better performance at non-rural distances. This is certified and designed for outdoor environments and is weatherproof. We do recommend RokTape to seal all outdoor connection points.


This antenna is compatible with the RAK V2, Bobcat 300, Nebra Indoor, SenseCAP M1, Kerlink, Linxdot, SyncroB.it, Helium Hotspot, Kerlink, FreedomFi & LongAP, but requires an RP-SMA male to N-female coaxial cable to fit, and we carry compatible coaxial cablesThis antenna also works with other Helium hotspots (such as the Nebra Outdoor) but may need different cable connectors, please contact our sales staff if needed.

  • 10 dBi gain 915 MHz band antenna for LoRa and HaLow™ long-distance low data transfer industrial application (this is NOT a 2.4 or 5 GHz WiFi antenna).
  • 12-degree vertical beamwidth, 360 degrees horizontal, N-male connector. VSWR ≤ 2 with 10 dBi gain, 50-ohm impedance, max input power 50 W, made of Fiberglass, Copper, and Aluminum Alloy
  • Large profile: 45 inches in height- Learn more about antenna size and gain correlation

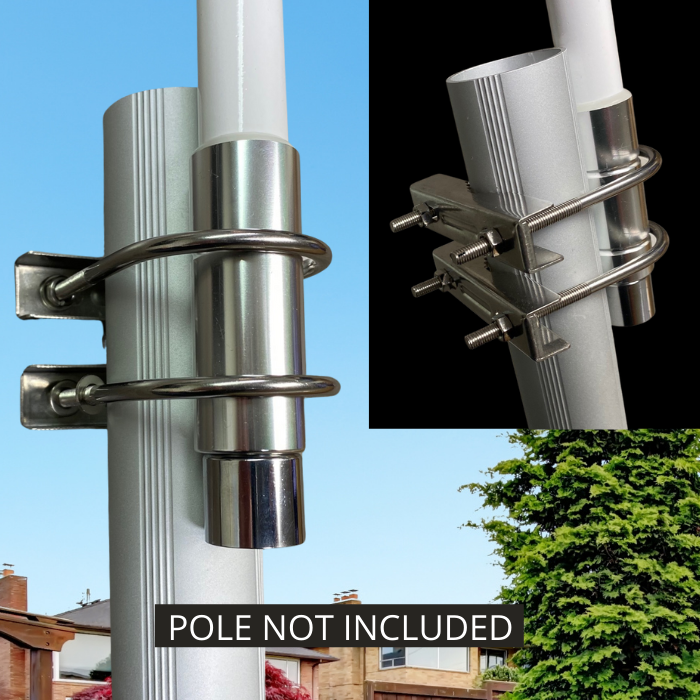

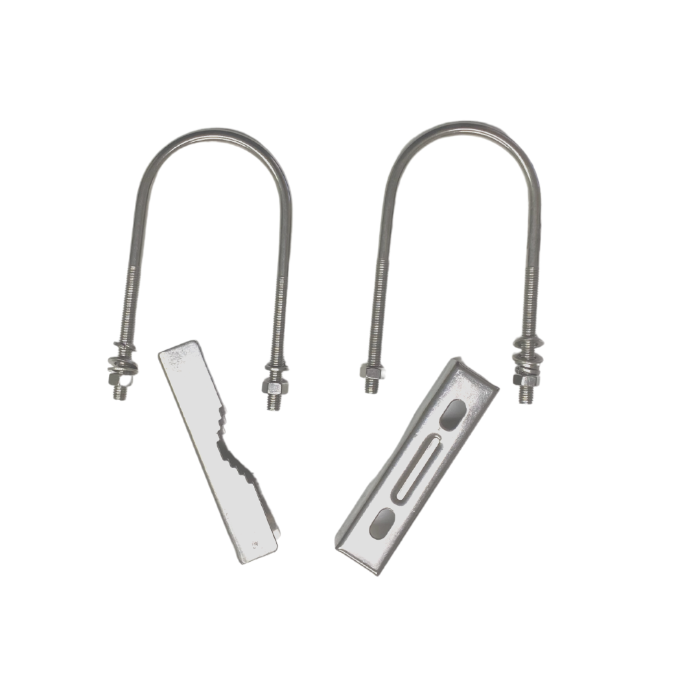

  • Includes 2 U-bolts and mounting bracket as pictured, plus antenna. Does NOT include a pole to mount to as shown in the picture. Pole shown in images with the antenna mounted to it is just for demonstration purposes
  • This is NOT a WiFi antenna or 4G cellular antenna, it is ONLY for 915 MHz sub 1 GHz HaLow or LoRa application, or other application this band.
Questions about miners, antennas and cables? Visit this page to learn more

We do recommend RokTape to seal all outdoor connection points.

Specifications:
900-930 MHz frequency
12-degree vertical beamwidth

360-degree horizontal beamwidth
N-male connector
VSWR: ≤ 2
10 dBi gain
50-ohm impedance
Max input power: 50 W
Wind Rating: 60 m/sec
Operating Temperature: -58F to 176F
Height: 45 inches (learn more about antenna height and gain correlation)
Made of Fiberglass, Copper, and Aluminum Alloy

Optional Compatible Accessory:

Official RAK Wireless Heavy Duty N-female 3.5" diameter antenna magnet base + 2m CFD-200 cable

What is HaLow™?
Wi-Fi HaLow™ is "the designation for products incorporating IEEE 802.11ah technology, augments Wi-Fi by operating in the spectrum below one gigahertz (GHz) to offer longer range and lower power connectivity. Wi-Fi HaLow meets the unique requirements for the Internet of Things (IoT) to enable a variety of use cases in industrial, agricultural, smart building, and smart city environments.

Wi-Fi HaLow enables the low power connectivity necessary for applications including sensor networks and wearables. Its range is longer than many other IoT technology options and it provides a more robust connection in challenging environments where the ability to penetrate walls or other barriers is an important consideration."

Compatible with:
RAK V2
Bobcat 300
Nebra Indoor/Outdoor
SenseCAP M1
SyncroB.it
Helium Hotspot
Kerlink
LongAP
FreedomFi
Heltec
ClodPi

Finestra
Linxdot

Warranty & Support:
Complimentary Telephone and Email/Live Chat Support (Click Here)
Online Technical Manuals and Instructions (Click Here)

State sales tax of 7% will be added to FLORIDA purchases only. There is no sales tax for any other state.

Oversize item Return Policy: This item can be returned for refund within 30 days of receipt. Because range can vary greatly based on your environment, if you are not sure a particular product will meet your range needs please contact us before buying. Orders with free shipping selected will incur a 15% restocking fee to help us cover the original shipping cost unless the item is defective or different from the advertisement. Any expedited shipping charges paid, including return shipping, are non-refundable. Items must be returned the way they were received, in new or like-new condition, with all pieces, documentation, and retail packaging (if applicable) included. For bulk purchases, see our bulk purchase return policy here.
