LILYGO® TTGO Meshtastic T-Beam V1.2 ESP32 LoRa 915 Mhz Wireless Module WiFi GPS NEO-6M With OLED Display (Soldered) for Arduino Q407


Note: Q407 replaces part Q349 in September 2023. It is T-Beam v1.2 instead of v1.1 (Q349 SKU). OLED is soldered to T-BEAM (pictures may show multiple sides of this product, only 1 unit included in sale)

  • Meshtastic pre-installed
  • ESP32 - Wifi & Bluetooth
  • SX1276 - LoRa Transceiver
  • Frequency: 915 MHz
  • NEO-6M - GPS receiver
  • SMA antenna connector
  • Power, Program and Reset switches

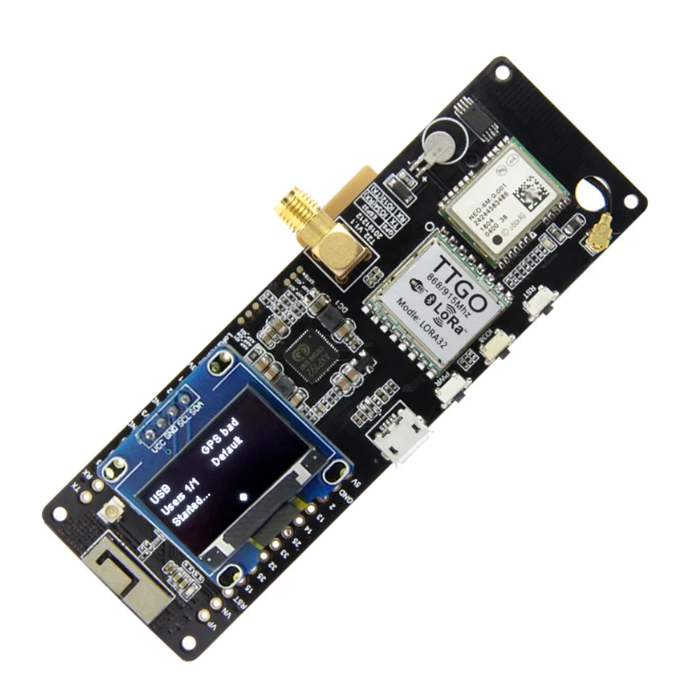

  • Comes with 0.96 inch OLED display
  • Firmware file: firmware-tbeam-1.x.x.bin

Warranty & Support:

Complimentary Telephone and Email/Live Chat Support (Click Here)
Online Technical Manuals and Instructions (Click Here)

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.

Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.

Customer Reviews

Based on 7 reviews
Robin Oury
All good

For an Alpha level product these are great, I can't wait to see what it becomes. Well done Meshtastic

Mackenly J.
Fun Ready To Go Product

Arrived on time as expected. Great product!

- Meshtastic Preinstalled
- Easy plug-and-play setup
- Packaged in a reusable plastic storage case with foam padding inserts.

- Hard to remove batteries
- GPS is sometimes slow to initially get a lock. After that, it seems to function fine, though. So be patient.

I haven't done any range tests yet.

Mohamad Husseini

Starts right up, I love the screen. Right away, I was able to flash code into it no problem at all!

Edward Harding

Quick shipping and works exactly as stated!

Sean Souza
Super fast shipping

LILYGO® TTGO works as described. About 2 miles open air range.
