LILYGO® T-Embed IoT embedded panel for programmable development K199
Pickup available at 3205 SW 40th Blvd Ste A
Usually ready in 1 hour
Price may be higher than the LILYGO website because stock is located in the USA and tariffs are already included in price.

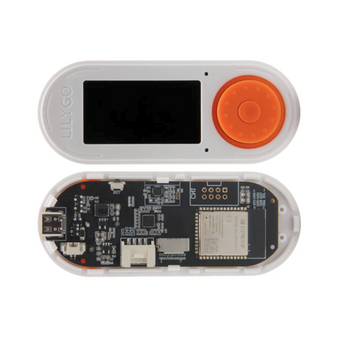

T-Embed is an IoT embedded panel designed for programmable development. ABS+PC material (optional translucent version) panel + circuit board integrated standardized design, providing product 3D drawings and reference design drawings. Easy design to embed on your product.
Specifications
| MCU | ESP32-S3 |
| Material | ABS |
| Wireless | Wi-Fi IEEE 802.11 b/g/n; Bluetooth 5, Bluetooth mesh |
| 1.9-inch IPS color TFT LCD |
| Model | ST7789 |
| Brightness | 350(TYP)Cd/m2 |
| Resolution | 170(H)RGBx 320(V) |
| Rotary encoder + confirmation key in one |
| Microphone | X 2 |
| NUMBERS OF DETENT | 24 |
| PULSE/ROTATION | 12 PULSE/360° |
| Speaker | 8 ohm @ 1W |
| Ring RGB light | x 7 |
| GROVER | x 1 |
| 2.54 x 8pin GPIO interface |
| TF card holder |
| Type-C USB |
| Battery charge and discharge protection circuit@1.25mm battery interface |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
T-Embed
T-Embed Shell
