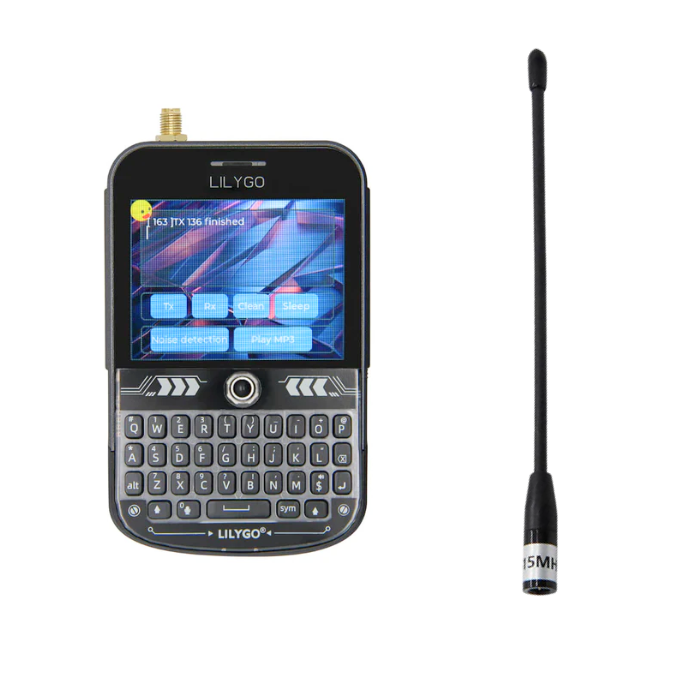

T-Deck is a pocket-sized gadget with a 2.8-inch, 320 x 240 pixel IPS LCD display, a mini keyboard, and an ESP32 dual-core processor. It is not a smartphone though it looks like one- but you can use your programming knowledge to turn it into a standalone messaging device, or use with coding software for programming.
Click for compatible batteries
Available cases:
At this time there are no available cases- we are working with LILYGO on a 3D printable case and will update this section when ready.
Meshtastic Firmware:
- Web installer
- Select your device: T Deck
- Select firmware version: latest beta
- Select update or reinstall: wipe and reinstall device
- Hold down trackball, then power on the device with the toggle switch
- Keep holding trackball, click connect in web installer
- Select T Deck's USB serial port
- Click install T Deck, then install, release trackball when erasing appears
- Other Flashing Methods
Specifications
| MCU | ESP32-S3FN16R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth 5 (LE) |
| Development | Arduino, PlatformlO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Battery ADC PIN | IO04 |
| Onboard functions | Trackball, Microphone, Speaker |
|
2.8 inch ST7789 SPI Interface IPS LCD: Resolution: 320 x 240 Full viewing angle |
| SX1262 LoRa Transceiver (Chip Optional) |
| Transmit power | +22dBm |
| Frequency Optional | 433/868/915Mhz |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
T-Deck
Size
Pin Diagram
Without LoRa
- 1 X T-Deck
- 1 X Pin(6pin)
- 1 X Power cable
With LoRa
Dev Board Return Policy
Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.
