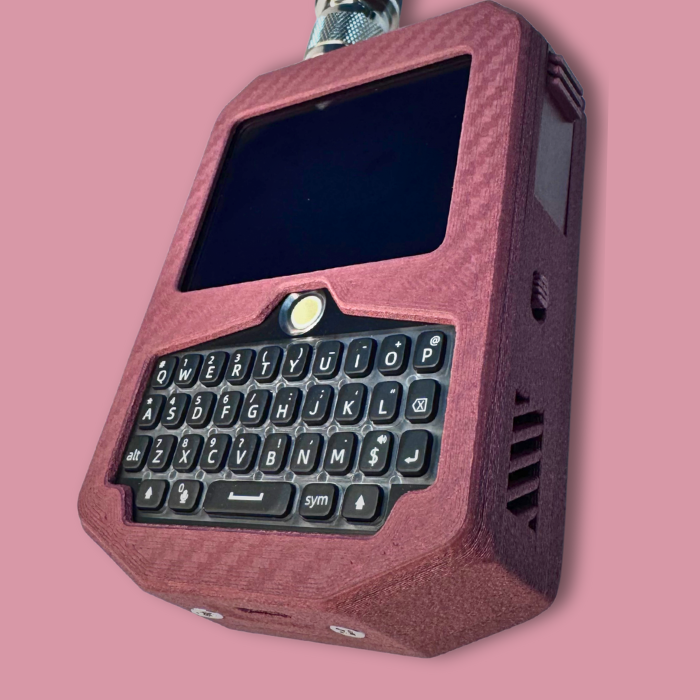

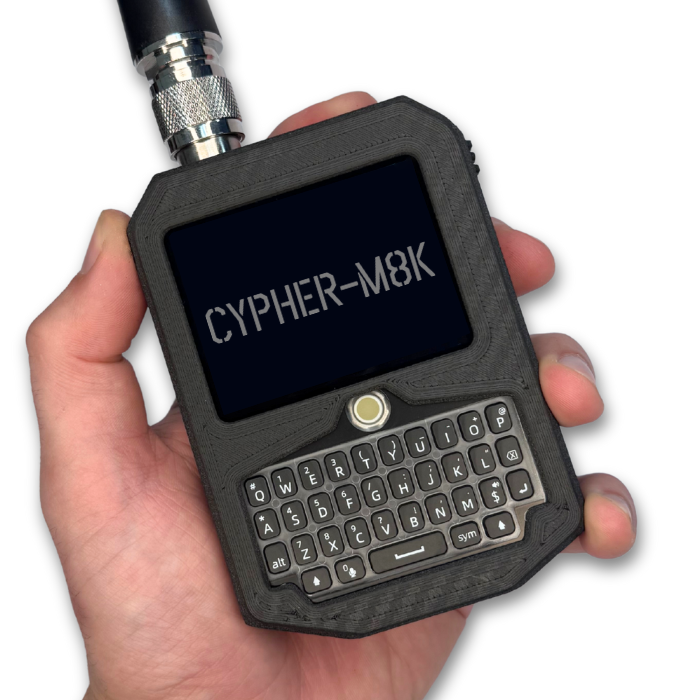

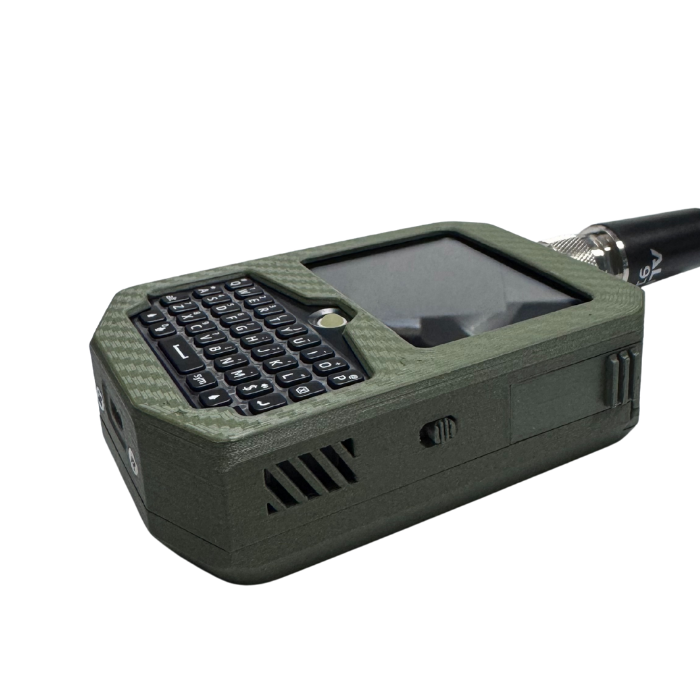

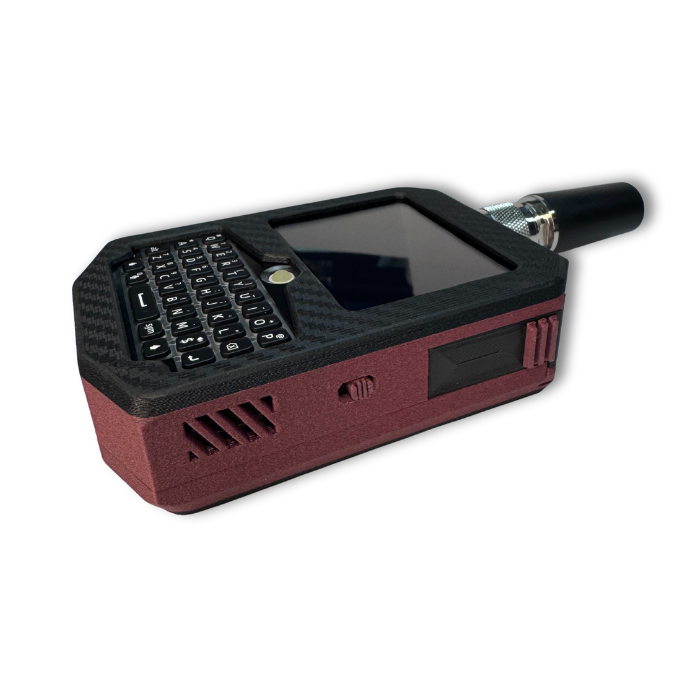

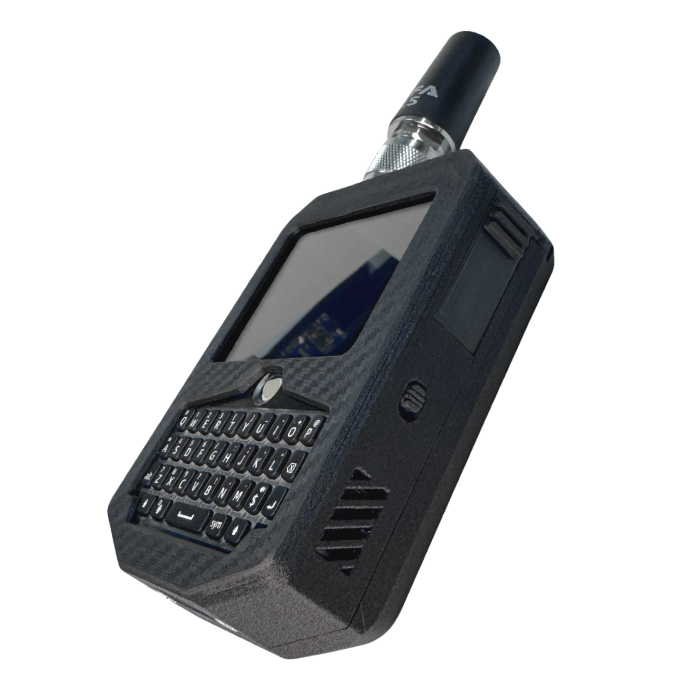

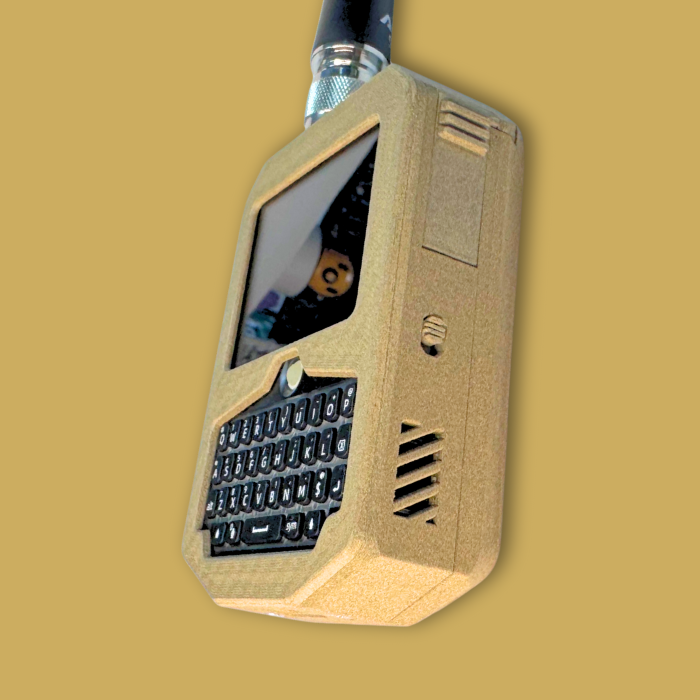

LILYGO® T-Deck CYPHER-M8K : complete edition 8000 mAh battery, GPS, keyboard, touchscreen

$139.97
Style: Black
GPS Chipset: AT6558/L76K

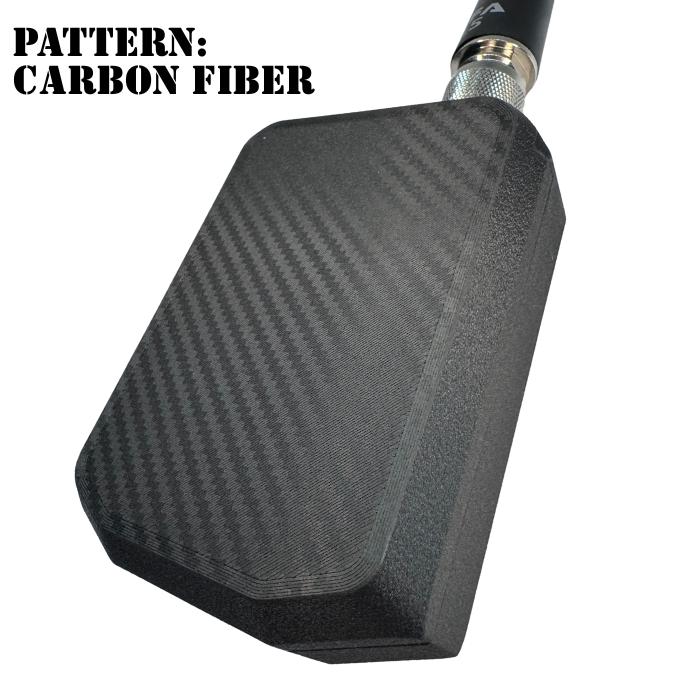

Pattern: Carbon Fiber

Pickup available at 3205 SW 40th Blvd Ste A

Usually ready in 1 hour

LILYGO T-Deck Cipher (formerly T-Deck Complete) is now available exclusively from Rokland.com. T-Deck Cipher is a pocket-sized gadget with:

  • 2.8-inch, 320 x 240 pixel IPS LCD display
  • High Capacity 8000 mAh internal battery
  • Built-in keyboard
  • ESP32-S3 dual-core processor
  • Heavy duty external N-Female antenna port

It is not a smartphone, though it looks like one, but rather a full standalone Meshtastic compatible node with 8000 mAh battery.

Don't need so much juice? Check our other T-Deck offerings.

Rokland is a Meshtastic Backer! A portion of your purchase goes directly to Meshtastic to fund software development. All prices include duty (ship from FL USA) Learn more.



T-Deck Cypher compared to Base/Plus/Plus EXT models:



T-Deck Cipher is designed and produced by Rokland, and includes:

  • High quality ASA CF casing made here in USA
  • High capacity 8000 mAh battery

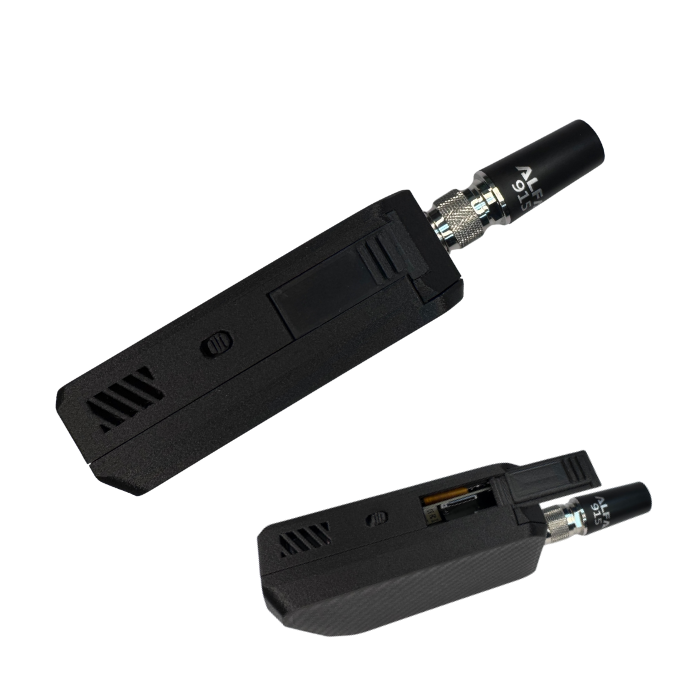

  • External N-Female LoRa antenna connector with ALFA 2 dBi gain N antenna
  • Internal GPS

Meshtastic Firmware:

T-Deck Cipher ships with Meshtastic firmware. However if you are getting into Meshtastic, at some point in time you will need to update firmware to stay up to date with the latest security and feature updates.

  • Web installer
    • Select your device: T Deck
    • Select firmware version: latest beta
    • Select update or reinstall: wipe and reinstall device

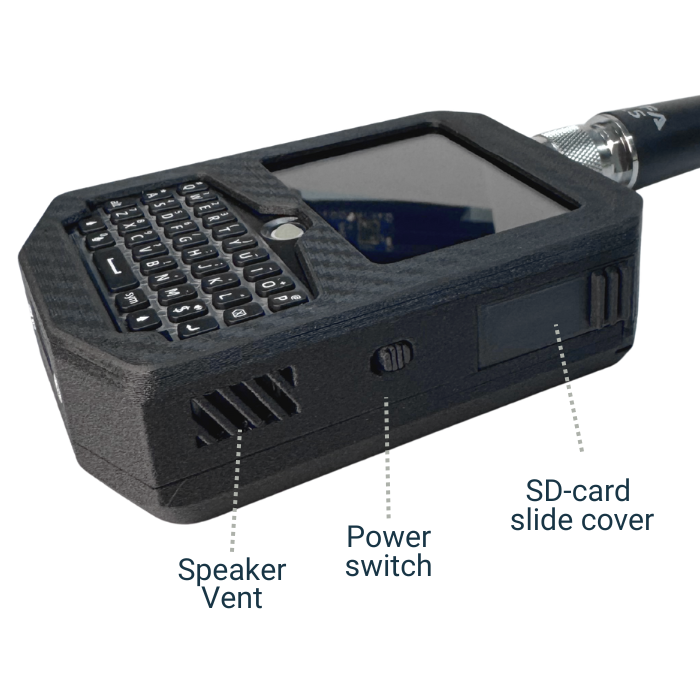

    • Hold down trackball, then power on the device with the toggle switch
    • Keep holding trackball, click connect in web installer
    • Select T Deck's USB serial port
    • Click install T Deck, then install, release trackball when erasing appears
  • Other Flashing Methods

Chatterbox Firmware

T-Deck Cipher is also compatible with Chatterbox.

Specifications

MCU ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Battery ADC PIN IO04
Onboard functions  Trackball, Microphone, Speaker

 2.8 inch ST7789 SPI Interface IPS LCD:

Resolution: 320 x 240 Full viewing angle
 SX1262 LoRa Transceiver
Transmit power +22dBm
Frequency   915Mhz
