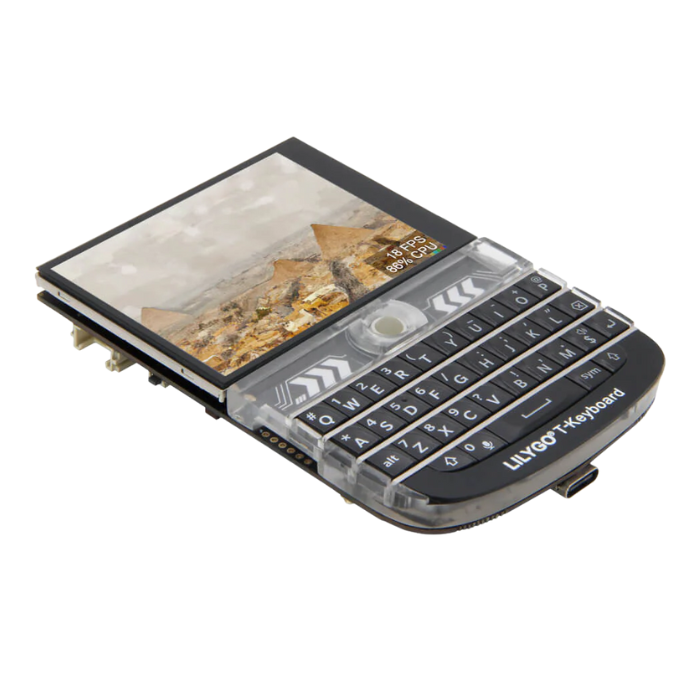

T-Deck is a pocket-sized gadget with a 2.8-inch, 320 x 240 pixel IPS LCD display, a mini keyboard, and an ESP32 dual-core processor. It is not a smartphone, though it looks like one- but you can use your programming knowledge to turn it into a standalone messaging device, or use with coding software for programming.
Keyboard: US QWERTY layout, may have additional symbols or characters on keys in other language in addition to QWERTY but that is smaller print on the bottom of the key and would not affect operation or layout.
Base vs. Complete
At the top of the page you can select the base model, or the complete.
Base model is the classic open T-Deck without case, battery, or GPS.
Complete model is assembled by Rokland (this is not the T-Deck Plus from LILYGO) and includes:
◘Military green case created by QuantumShadow3D
◘3000 mAh battery
◘Rokland 2.5 dBi 20cm whip antenna
◘nternal GPS via Grove Connector
See pictures for differences
Already own a T-Deck Base and just need accessories?
Click for compatible batteries
Click for compatible cases
Click for compatible GPS
Meshtastic Firmware:
Both base and complete units ship with a recent version of Meshtastic firmware preinstalled. If you wish to update:
- Web installer
- Select your device: T Deck
- Select firmware version: latest beta
- Select update or reinstall: wipe and reinstall device
- Hold down trackball, then power on the device with the toggle switch
- Keep holding trackball, click connect in web installer
- Select T Deck's USB serial port
- Click install T Deck, then install, release trackball when erasing appears
- Other Flashing Methods
Specifications
MCU | ESP32-S3FN16R8 Dual-core LX7 microprocessor |
Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth 5 (LE) |
Development | Arduino, PlatformlO-IDE, Micropython |
Flash | 16MB |
PSRAM | 8MB |
Battery ADC PIN | IO04 |
Onboard functions | Trackball, Microphone, Speaker |
2.8 inch ST7789 SPI Interface IPS LCD: Resolution: 320 x 240 Full viewing angle |
SX1262 LoRa Transceiver (Chip Optional) |
Transmit power | +22dBm |
Frequency Optional | 433/868/915Mhz |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
T-Deck
Size
Pin Diagram
Without LoRa
- 1 X T-Deck
- 1 X Pin(6pin)
- 1 X Power cable
With LoRa
