LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 915MHz NRF52840 GPS for Arduino H505

Name: LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 915MHz NRF52840 GPS for Arduino H505
Brand: LILYGO
SKU: H505
Price: 67.97 USD
Availability: InStock

$67.97

Style: White (SKU H505)

White (SKU H505) White 2-pack (H505) Black (SKU K147) Grey (SKU K148)

Product variants

Quantity

Pickup available at 2251 NW 41st Street

Usually ready in 1 hour

The T-Echo is the latest device to be release by LILYGO® supporting a low power consumption microcontroller. This is the white color, without BME280

firmware file: firmware-t-echo-1.x.x.uf2
TTGO's GitHub page for the T-Echo
LILYGO SKU H505

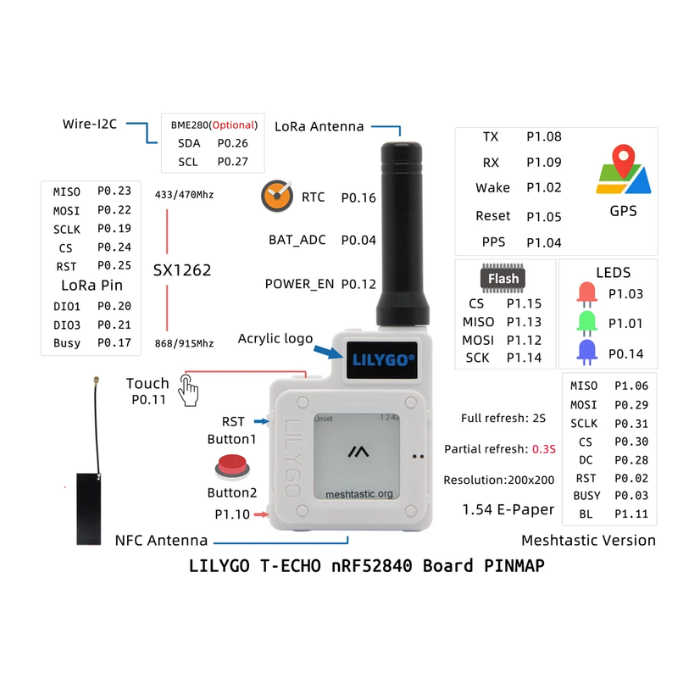

Features

nRF52840 - Bluetooth BLE 5.0, NFC and very low power consumption
SX1262 - LoRa transceiver
1.54" eInk display
L76K - GNSS receiver - Supporting GPS, BeiDou, GLONASS & QZSS

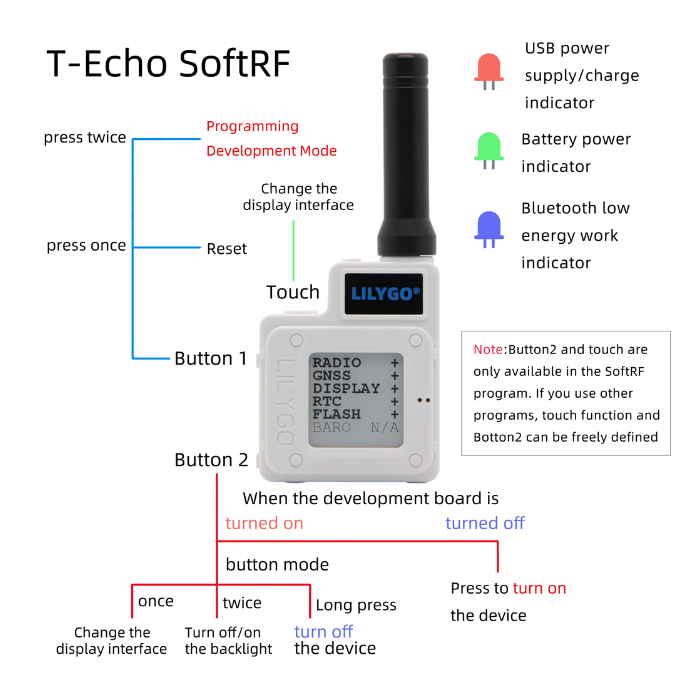

Reset, Program and capacitive touch buttons
U.FL antenna connector
Does NOT include BME280 Humidity and Pressure Sensor
Comes in case with battery installed inside case

Dev board return policy

Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.

Shipping & Returns

FREE Standard shipping on all items shipped in the USA!
We are in Florida and ship to: USA, Australia, Austria, Canada, France, Germany, Israel, Netherlands, the United Kingdom, and other countries (see full list in cart).

Local pickup available in Gainesville, FL

Expedited shipping orders placed before 3PM EST weekdays will ship that day. Standard shipping orders ship within 1 business day.

Sales tax: shipments shipped to states in which we are registered to collect tax will have appropriate tax added at checkout. Tax exempt forms can be sent to our support staff who can activate exemption status.

Lost packages and insurance

International Shipping:

Shipping options are visible in cart by using the shipping estimator. Transit times posted are estimates. International packages are subject to customs holds and duty payment may be required by your government on delivery. The cost of duty is not reimbursable. Internatonal shipping charges are not refundable in the event of a return.

Returns

See item description for product specific return policies, and return policies vary by item.

Bulk/High Value Order Returns

Due to the labor required to package and ship bulk orders, as well as cost and stock issues involved in replenishing items, bulk orders of 5 pieces or more are not returnable unless the equipment is defective or mis-advertised, or a return period is prenegotiated. For non-defective returns over $500, a restocking fee may be deducted from the refund to cover bank or card processing fees.

Backorder/Preorder

Items on backorder or preorder will ship as estimated on the item page. You can cancel an order any time up until shipment. Orders with expedited shipping will arrive in the advertised time after the order ships, not after the order is placed.

Cancellations

If you want to cancel an order, please email or call us at (352) 372-9902. If your item has not been shipped, we will cancel the order and provide a full refund.

Style: White (SKU H505)

White (SKU H505) White 2-pack (H505) Black (SKU K147) Grey (SKU K148)

It works…and won’t stop working

The item works as intended, which is a good thing. But the problem with this device is it doesn’t turn off. At least I don’t know how to turn it off. There’s nothing in the instructions about it. Now I get people hacking my device and changing names and adding me to group messages and also sending me private messages. It gets annoying.

To power off, do a long press and hold on the button and this will shut it down. You should see “shutting down” appear on the screen.
The screen will not wipe to blank and will still have data written. Because the screen is eink, it can still display the most recent ink writing even after off.

LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 915MHz NRF52840 GPS for Arduino H505

Fried itself

Worked great for a moment, but after plugging it into the USB charger the second time there was a burning plastic smell. I quickly unplugged and opened up to remove the battery. One of the surface mount components near the USB port was slightly melted and the battery cable that had been across it was singed. The unit no longer powers on. I can probably salvage the antennas and screen for parts but what a waste.

We are sorry to hear about this issue. This is not something we have seen before with the T-Echo so it appears to be very isolated, possibly a bad battery or incorrect wiring. Our team has reached out to your email to find out if you would like it replaced or if you prefer to return for refund.

T-Echo is easy to use.

I just got a T-Echo, and I was able to flash Meshtastic to it in a few minutes. It's my first Meshtastic device, and it was easy to get it running. I also got the antenna upgrade, and I recommend it. The factory antenna works, but the upgraded antenna picks up many more nodes from my location. I have a lot to learn, but it's been a great experience, so far!
